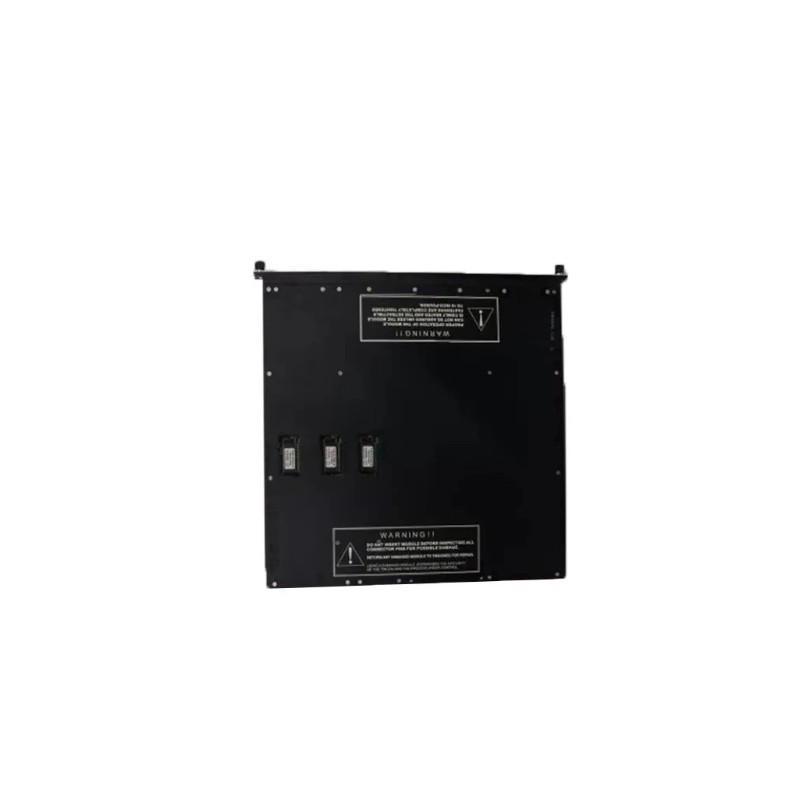

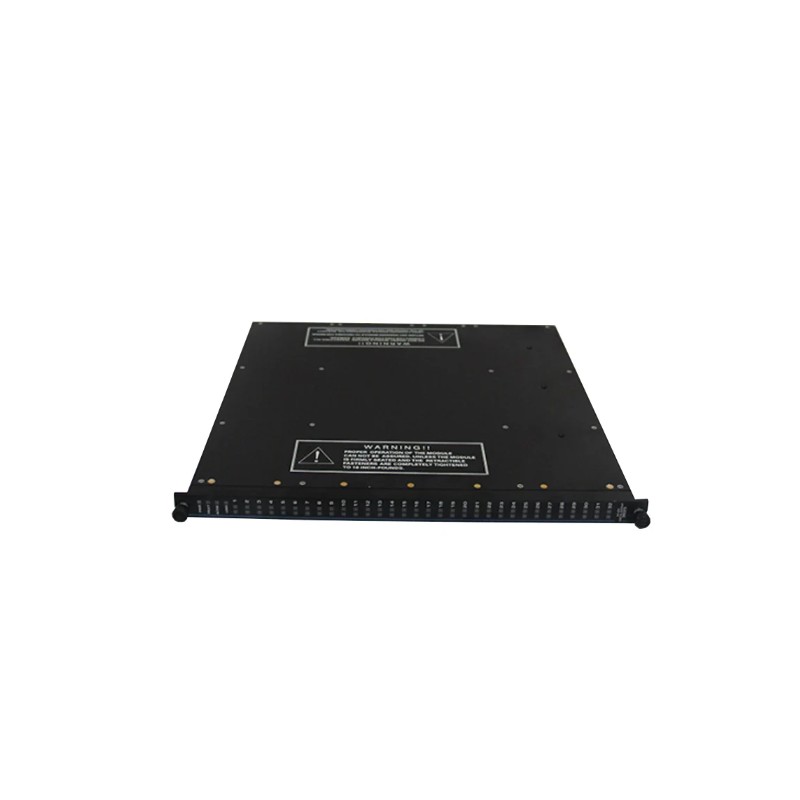

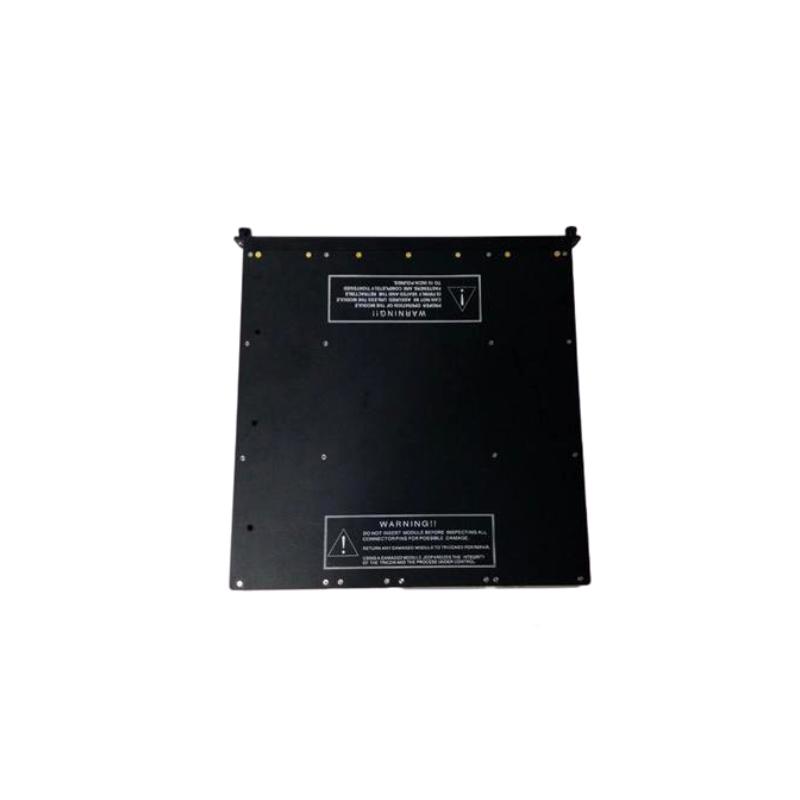

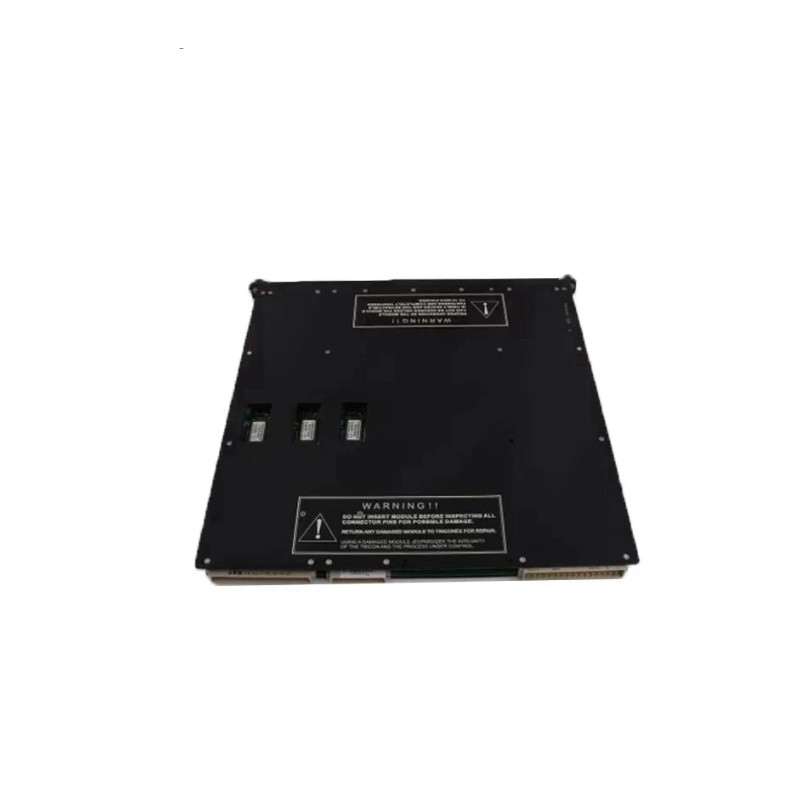

Triconex 3564 | Digital Input Module 100% New

Overview
The Triconex 3564 is a high‑density digital input module designed for safety‑critical industrial systems. It provides 64 isolated channels for discrete input signals. Brand: Triconex. Country of Origin: USA.

General Information
Part Number: 3564
Manufacturer: Triconex (Schneider Electric)
Brand: Triconex
Country of Origin: USA
Type: Digital Input Module
Channels: 64 discrete input points
Function: Captures field digital signals and relays them into the safety controller with channel‑wise isolation and diagnostics

Power Specifications
Nominal Input Voltage: 24 V DC
Typical Input Current: ~20 mA per channel
Input Impedance: Approx. 10 kΩ
Response Time: ~1 ms

Communication & Interface
Signal Type: Discrete digital inputs (24 V DC)
Interface: Module integrates into the Triconex I/O rack backplane
Diagnostics: Channel‑level fault detection including open‑circuit and short‑circuit monitoring

Environmental
Operating Temperature: ‑40 °C to +70 °C
Storage Temperature: ‑55 °C to +85 °C
Humidity: 5% to 95% RH, non‑condensing
Isolation: High‑voltage isolation between logic channels and earth to meet SIL safety requirements

Dimensions & Weight
Dimensions: Approx. 132 × 100 × 220 mm
Weight: Approx. 0.9 kg

We provide brand-new original items, verified and supported by real-time inventory.
