Overview

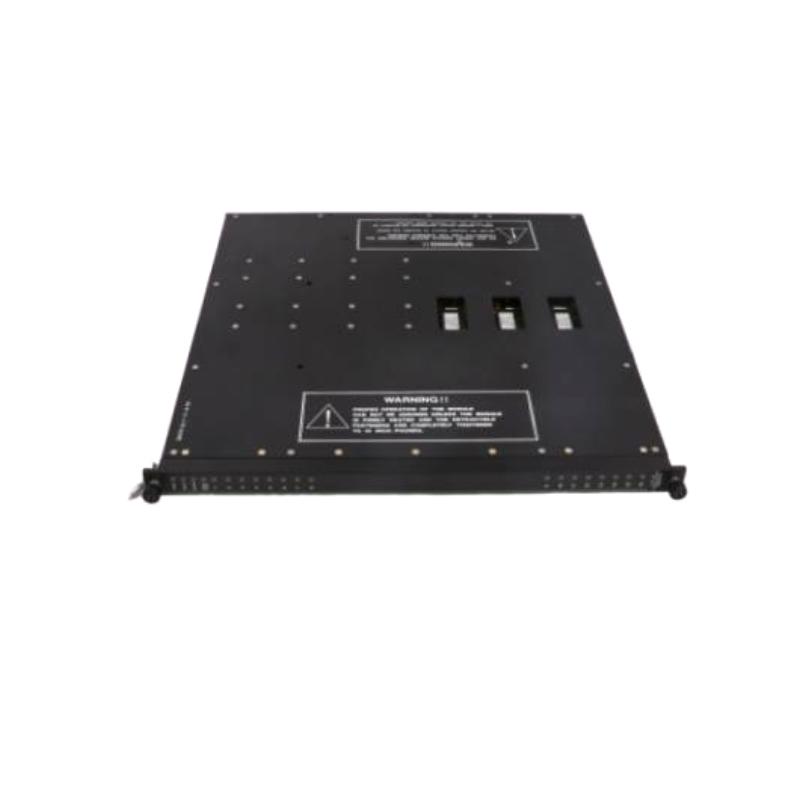

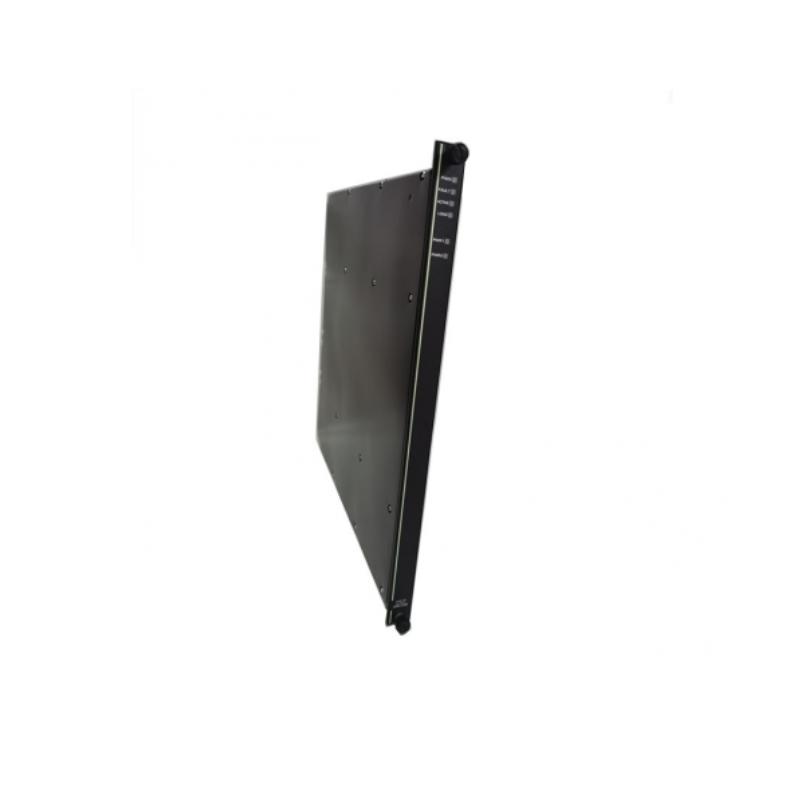

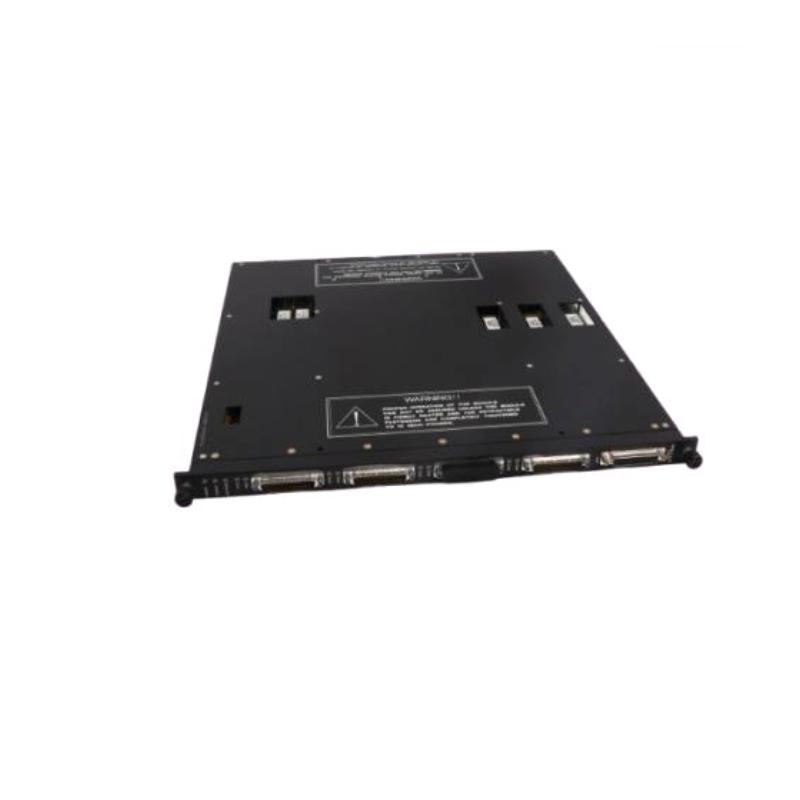

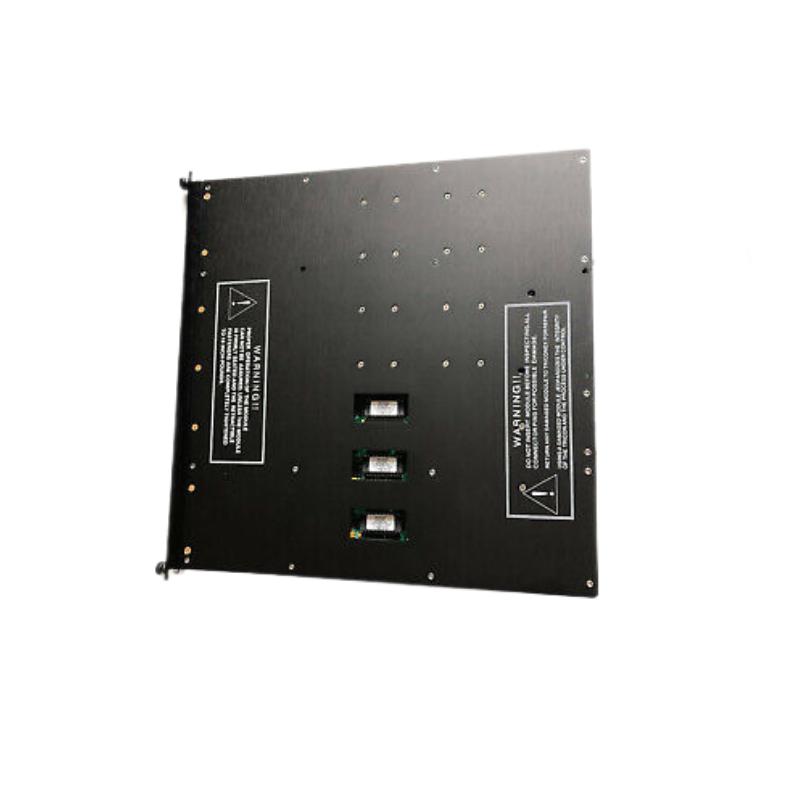

The Triconex 3601E is a safety-rated digital output module featuring Triple Modular Redundancy (TMR) architecture for high-availability applications in industrial automation systems. Brand: Triconex. Country of Origin: USA.

General Information
Part Number: 3601E
Manufacturer: Triconex
Brand: Triconex
Country of Origin: USA
Type: Digital Output Module
Channels: 16 discrete output points
Function: Converts system logic signals into field digital outputs while providing diagnostics and fault tolerance

Power Specifications
Input Voltage Range: 80–155 V AC, 47–63 Hz
Nominal Output Voltage: 115 V AC
Output Current: Up to 2 A per channel continuous; surge rating up to 12 A for short durations
Isolation: ≥1500 V DC between channels and system logic

Communication & Interface
Signal Type: Digital discrete outputs
Architecture: TMR with voting logic for fault tolerance and safe operation
Diagnostics: Module status indicators, load and fuse fault detection per channel
Interface: Connects to Triconex rack backplane and field termination assembly

Environmental
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –55 °C to +85 °C
Humidity: 5% to 95% RH, non-condensing
Installation: Suitable for control cabinets and safety instrumented environments

Dimensions & Weight
Dimensions: 132 × 100 × 220 mm
Weight: Approx. 0.9 kg
