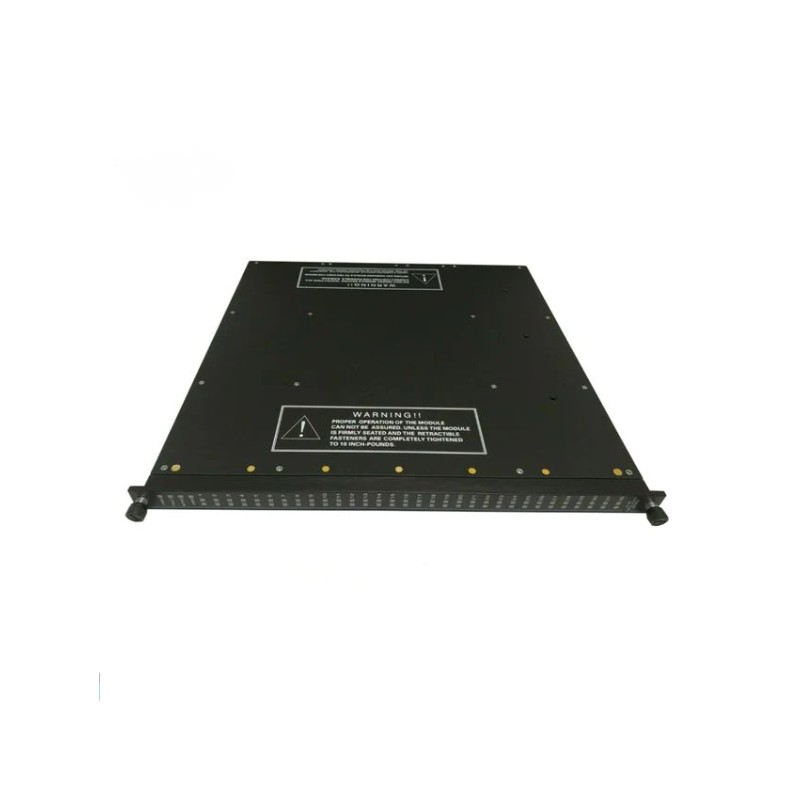

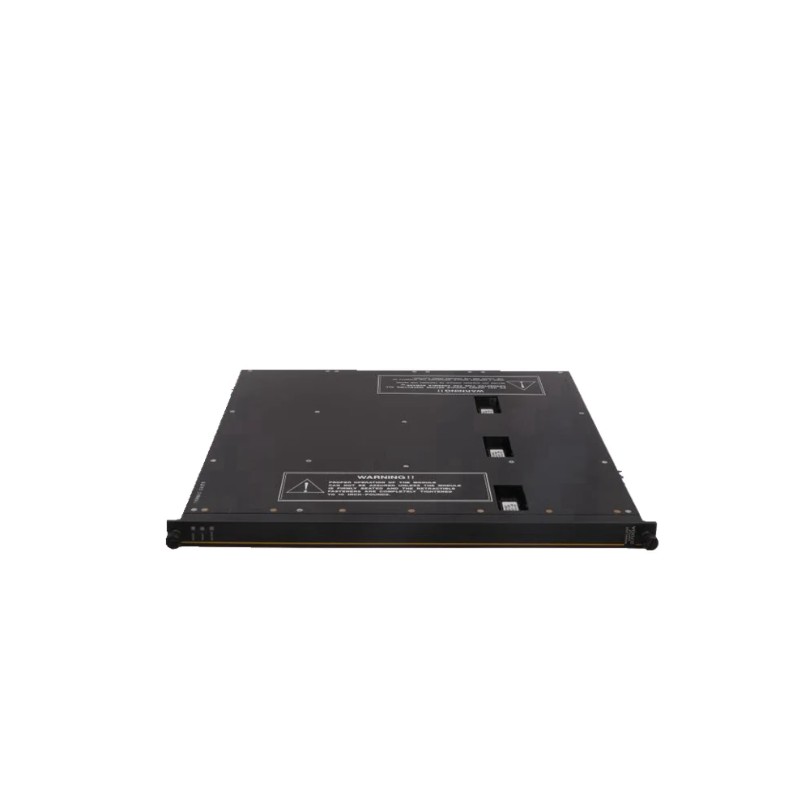

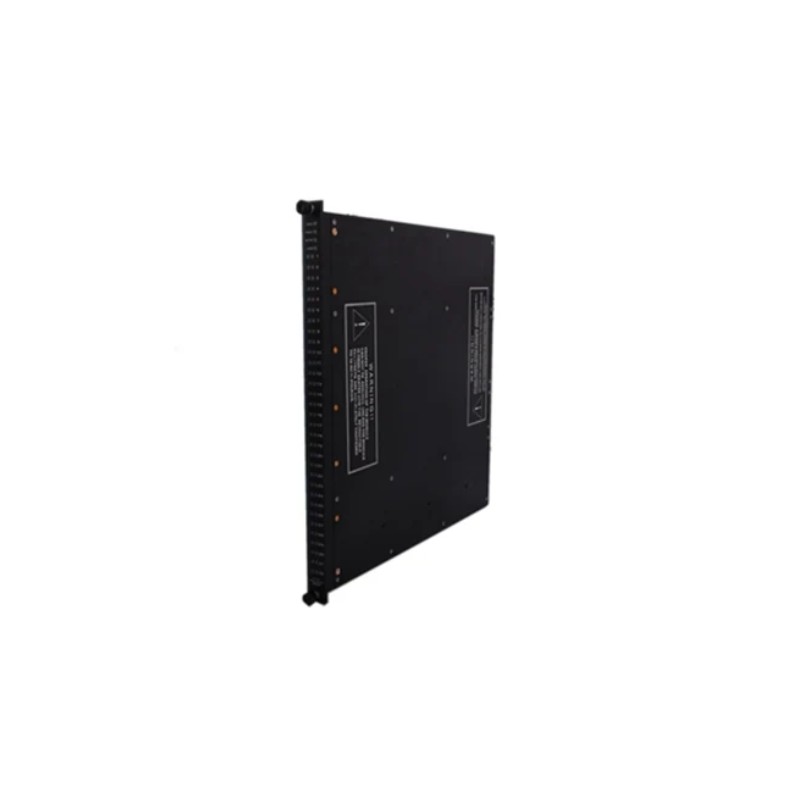

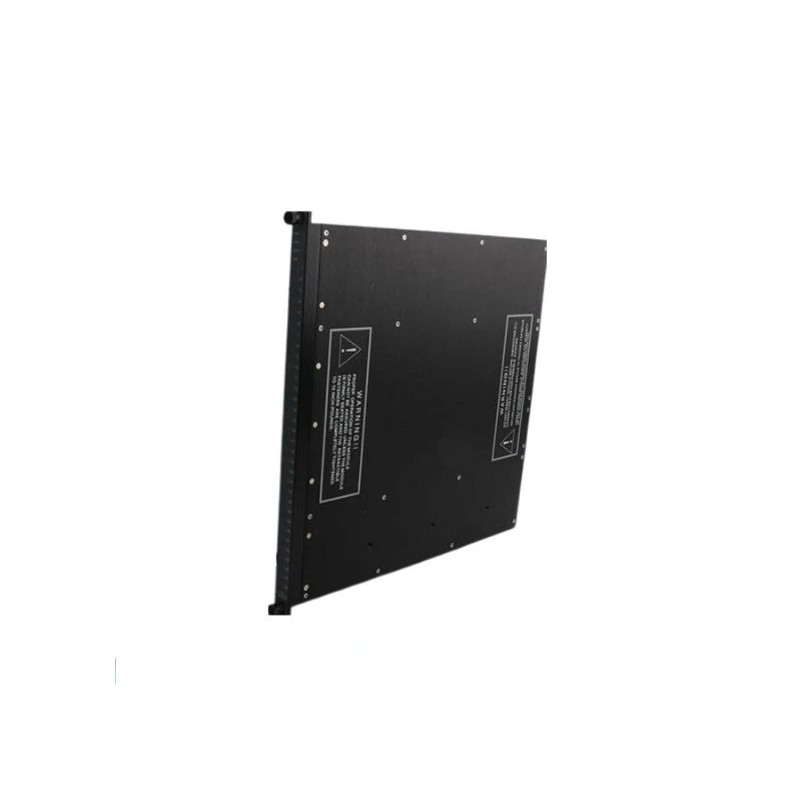

Triconex 3603B | Digital Output Module 30-Day Returns

Overview
The Triconex 3603B is a digital output module designed for high‑integrity safety systems, delivering 16 non‑commoned output channels with strong diagnostics and fault protection. Brand: Triconex. Country of Origin: USA.

General Information
Part Number: 3603B
Manufacturer: Triconex (Schneider Electric)
Brand: Triconex
Country of Origin: USA
Type: Digital Output Module
Channels: 16 non‑commoned output points
Function: Converts logic signals into field‑driving output channels, with robust monitoring and isolation

Power Specifications
Nominal Output Voltage: 120 V DC
Operating Voltage Range: 90 – 155 V DC
Maximum Current: 0.8 A per channel continuous; 4 A surge for 10 ms
Leakage Current (Off State): ≤ 2 mA
Want Load: ≥ 20 kΩ for unused channels

Communication & Interface
Signal Type: Discrete digital outputs
Architecture: Triple Modular Redundancy (TMR) reliability
Diagnostics: Status indicators for each channel (On/Off), plus module PASS/FAULT/ACTIVE indicators
Interface: Connects to safety rack backplane and field termination assembly

Environmental
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –55 °C to +85 °C
Humidity: 5% to 95% RH, non‑condensing
Isolation: Minimum 1 500 V DC between points and system logic

Dimensions & Weight
Dimensions: Approximately 132 × 100 × 220 mm
Weight: Approximately 0.9 kg

100% original new stock, fast quote delivery, and professional assistance available.
