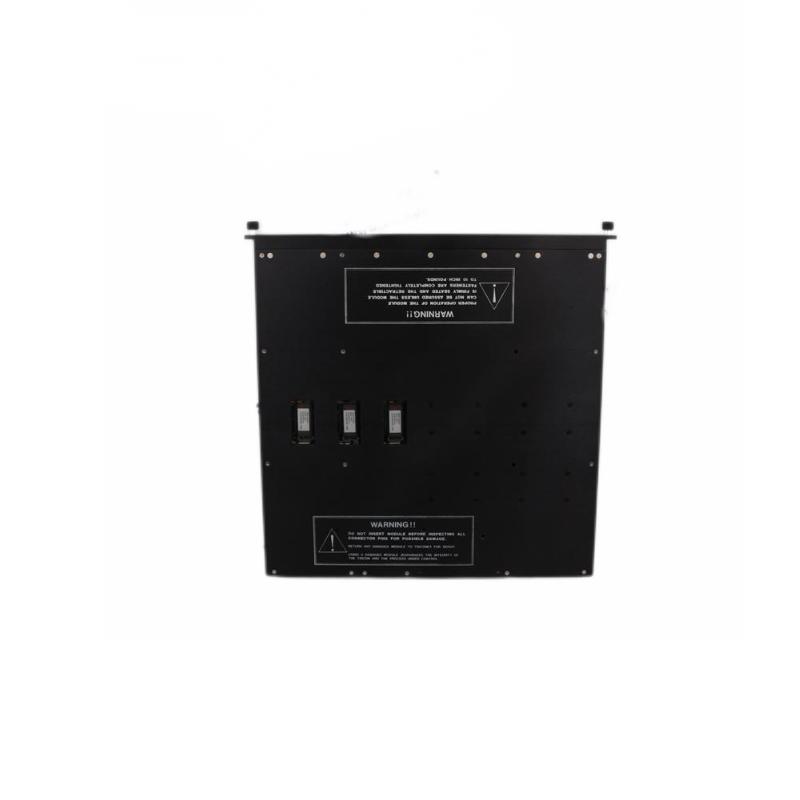

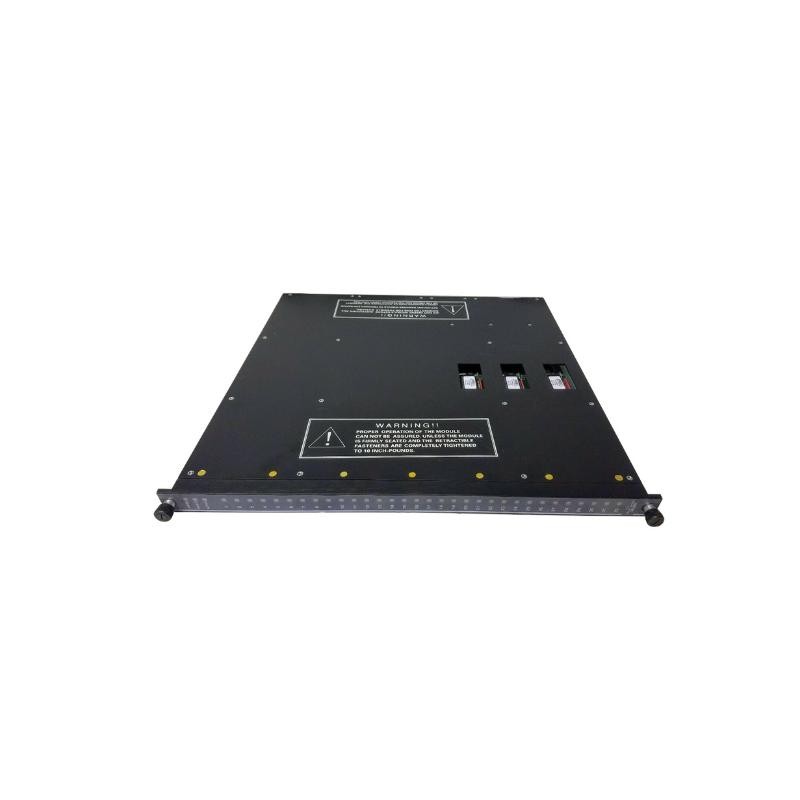

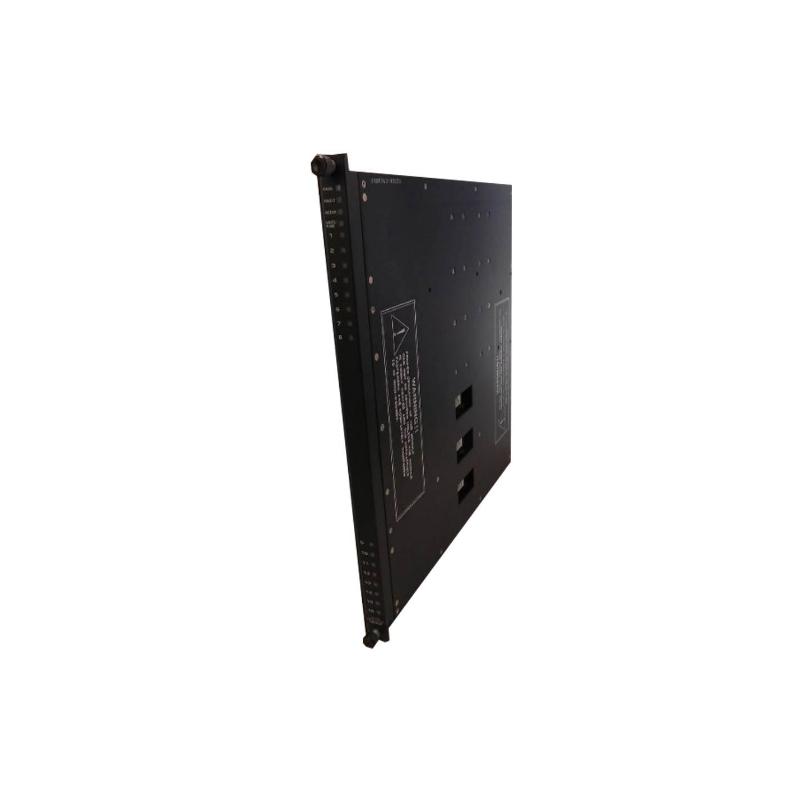

Triconex 3604E | Digital Output Module Hot Items

Overview
The Triconex 3604E is a 16‑point digital output module built for high‑integrity control systems, supporting 24 V DC output signals under triple modular redundancy architecture.

General Information
Part Number: 3604E
Manufacturer: Triconex (Schneider Electric)
Brand: Triconex
Country of Origin: USA
Type: Digital Output Module
Channels: 16 non‑commoned output points
Function: Converts voted logic signals into field‑driving outputs with full diagnostics and fault‑tolerant design

Power Specifications
Nominal Output Voltage: 24 V DC
Operating Range: 22‑45 V DC
Maximum Output Current: Up to 2 A per channel continuously
Surge Capability: 10 A per channel for 10 ms
Voltage Drop: Less than 4 V typical
Load Leakage: 2 mA maximum
Isolation: 1500 V DC between points and system logic

Communication & Interface
Signal Type: Digital discrete outputs
Architecture: Triple Modular Redundancy (TMR) for high availability and fail‑safe operation
Diagnostics: Channel‑by‑channel monitoring including LOAD/FUSE fault detection; module status indicators for PASS, FAULT, ACTIVE
Interface: Connects via system backplane and requires external termination panel for field wiring

Environmental
Operating Temperature: ‑40 °C to +70 °C
Storage Temperature: ‑55 °C to +85 °C
Humidity: 5% to 95% RH, non‑condensing
Installation: Suitable for control cabinets and safety‑instrumented systems

Dimensions & Weight
Dimensions: Approx. 132 × 100 × 220 mm
Weight: Approx. 0.9 kg
