Overview

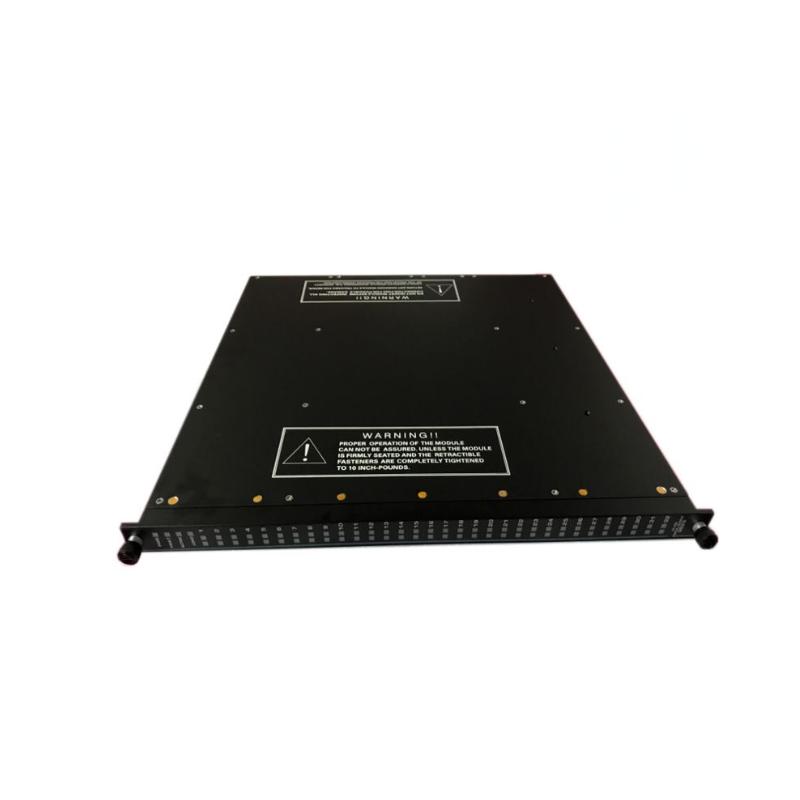

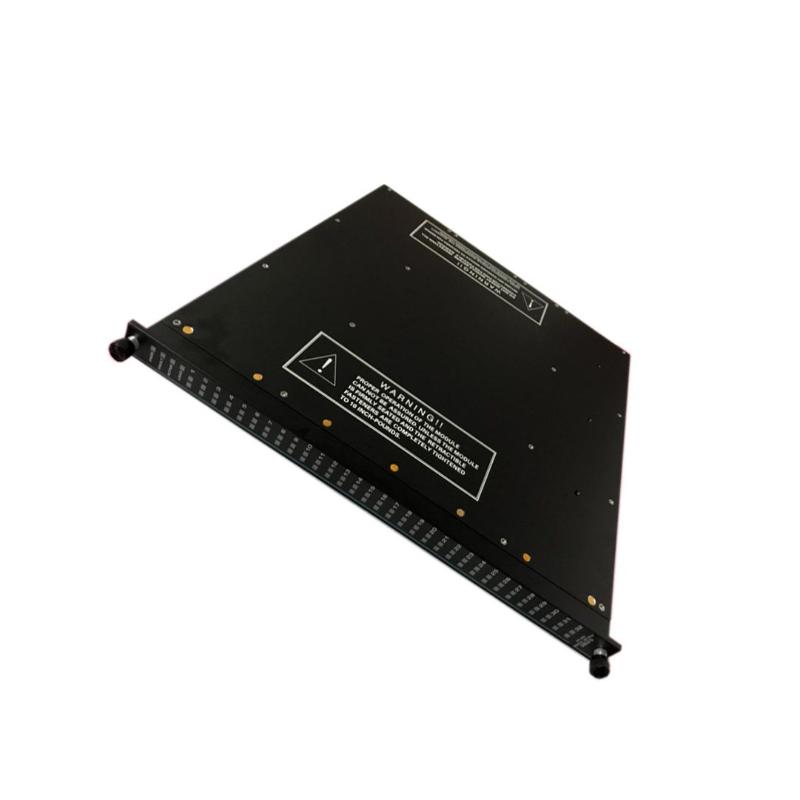

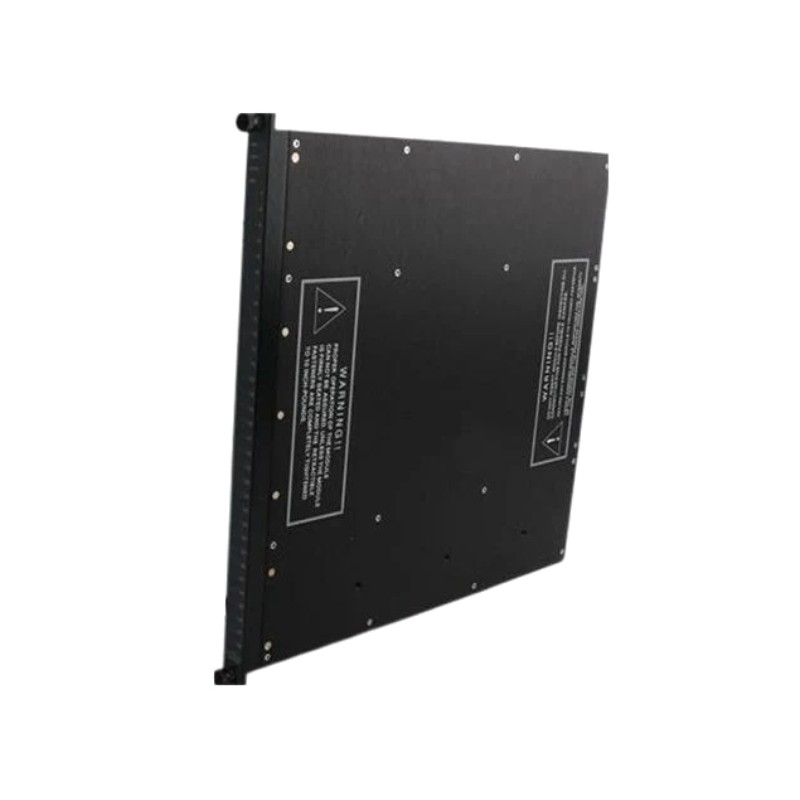

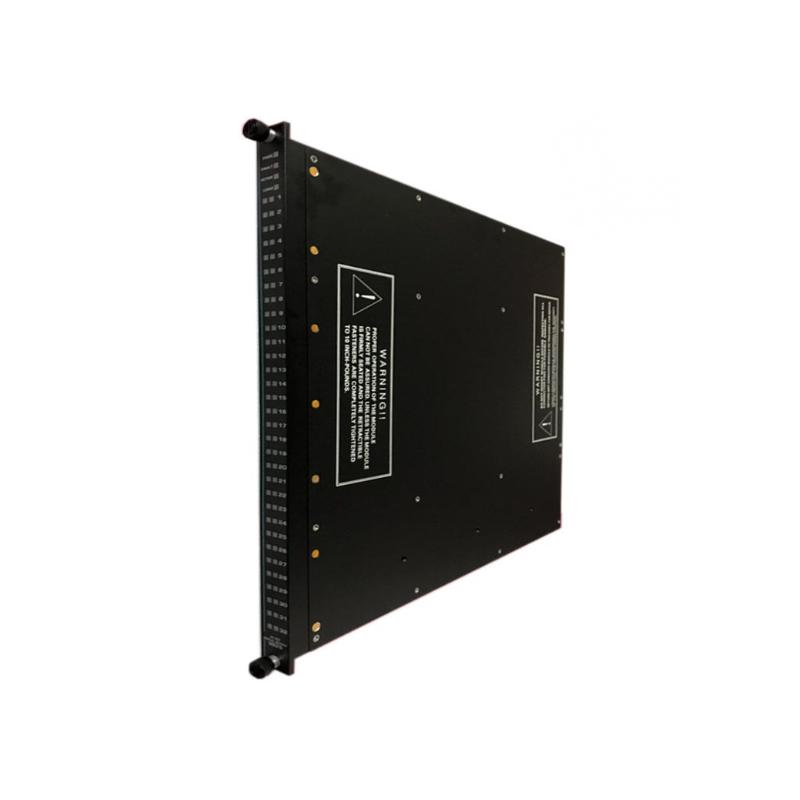

The Triconex 3625N is a 32-channel digital output module designed for safety-critical and fault-tolerant control systems. It provides both supervised and non-supervised outputs with built-in diagnostics to ensure reliable operation in industrial environments.
General Information
Part Number: 3625N
Manufacturer: Triconex (Schneider Electric)
Brand / Country of Origin: Triconex / USA
Type: Digital Output Module
Mounting: Plug-in card installation in Triconex I/O chassis
Technology: Supervised digital outputs with load monitoring and triple-modular redundancy architecture
Power Specifications
Supply Voltage: 24 V DC nominal
Voltage Range: 16–32 V DC
Maximum Load Current: Approx. 1.7 A per channel
Protection: Short-circuit and open-load detection, load supervision
Communication & Interface
Interface: Backplane connection to Triconex system
Channels: 32 digital output channels
Diagnostics: Monitors load presence, open/short circuits, and field wiring faults
Redundancy: Supports triple modular redundancy (TMR) for high system availability
Environmental
Operating Temperature: −40 °C to +70 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinets and safety instrumented systems
Dimensions & Weight
Dimensions (L × W × H): Approx. 160 × 160 × 120 mm
Weight: Approx. 1.5 kg
