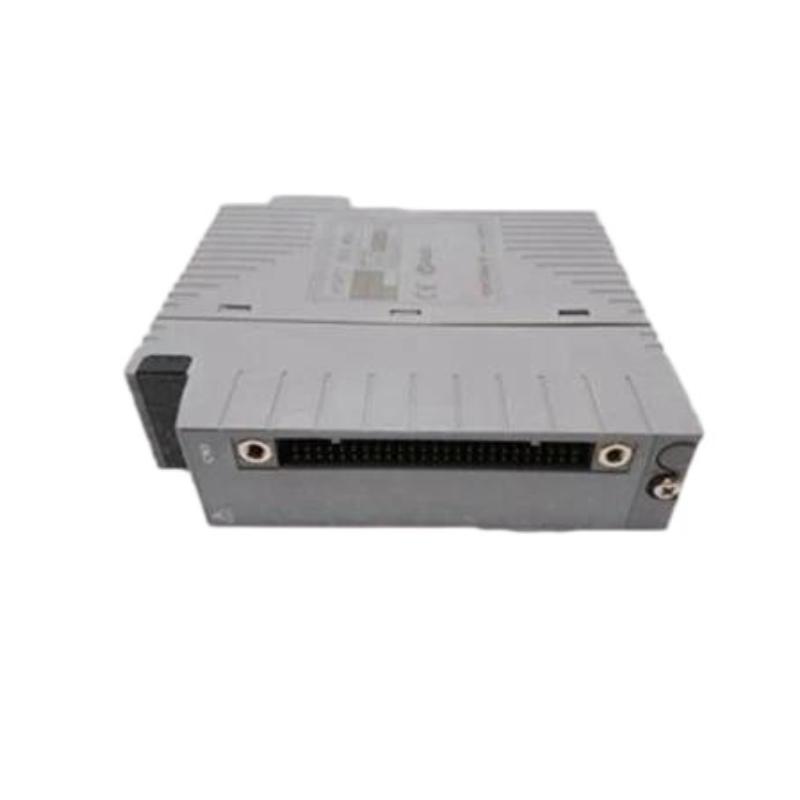

Yokogawa AAI141-H53 Analog Input Module Original

Overview

The Yokogawa AAI141-H53 is a high-performance 16-channel analog input module developed for use in Yokogawa’s CENTUM CS 3000 and CENTUM VP distributed control systems. It converts analog current signals (4–20 mA DC) from field instruments into digital data for process control and monitoring. The module provides isolated channels, precise signal processing, and built-in self-diagnostics, ensuring reliable operation in continuous process industries such as oil refining, petrochemical, and power generation.

General Information

• Part Number: AAI141-H53

• Manufacturer: Yokogawa Electric Corporation

• Series: AAI (Analog Input Module Series)

• Type: Analog Input Module (AI)

• Number of Channels: 16 isolated analog input channels

• Signal Type: 4–20 mA DC current input

• Country of Origin: Japan

• Mounting: Installed on FIO (Field Input/Output) base unit inside the control cabinet

• Technology: High-accuracy A/D conversion with channel-to-channel isolation, digital noise filtering, and long-term signal stability for precision process control

Power Specifications

• Power Supply Voltage: 24 V DC (supplied from the I/O base)

• Input Voltage Range: 20–28 V DC

• Power Consumption: Approx. 6.5 W

• Input Power Source: Through the backplane connection

• Isolation: Channel-to-channel and channel-to-ground optical isolation

• Protection: Overvoltage, reverse polarity, and surge protection

Communication & Interface

• Interface Type: Field I/O (FIO) bus communication

• System Compatibility: Yokogawa CENTUM CS 3000 / CENTUM VP

• Input Signal Range: 4–20 mA DC

• Input Resistance: 250 Ω typical

• Resolution: 16-bit A/D conversion

• Accuracy: ±0.1% of full scale or better

• Diagnostics: Built-in self-diagnostic functions with LED indicators for power, communication, and channel errors

• Configuration: Software-configurable via Yokogawa engineering tools (such as CENTUM system builder and FIO configuration utilities)

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: −20 °C to +70 °C

• Humidity: 10% to 90% RH, non-condensing

• Vibration Resistance: 10–60 Hz, amplitude 0.075 mm

• Protection Rating: IP20 (for internal cabinet installation)

• Maximum Operating Altitude: 2000 m

Dimensions & Weight

• Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

• Weight: 0.2 kg
