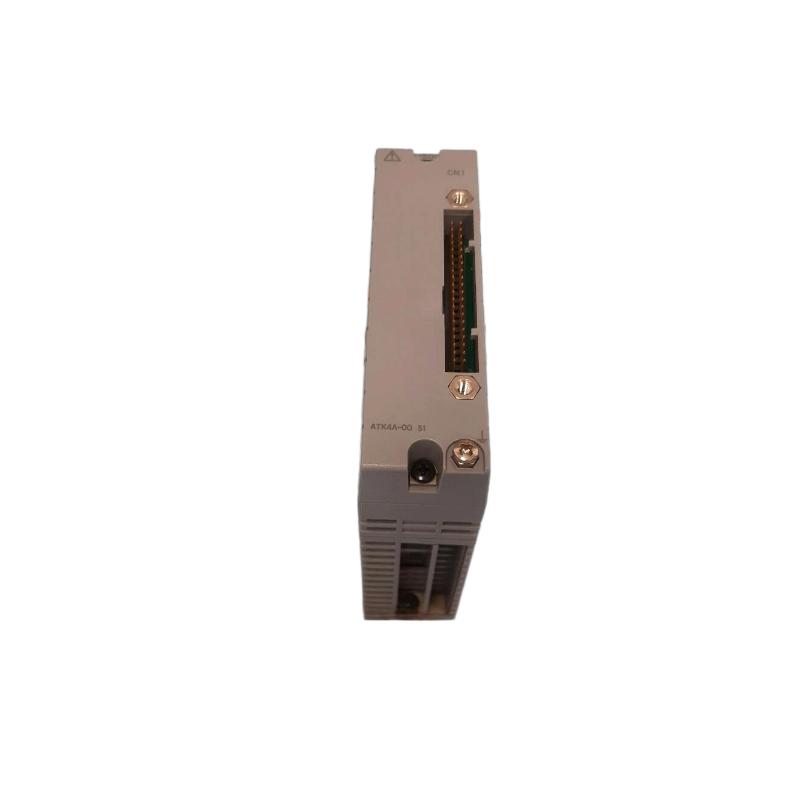

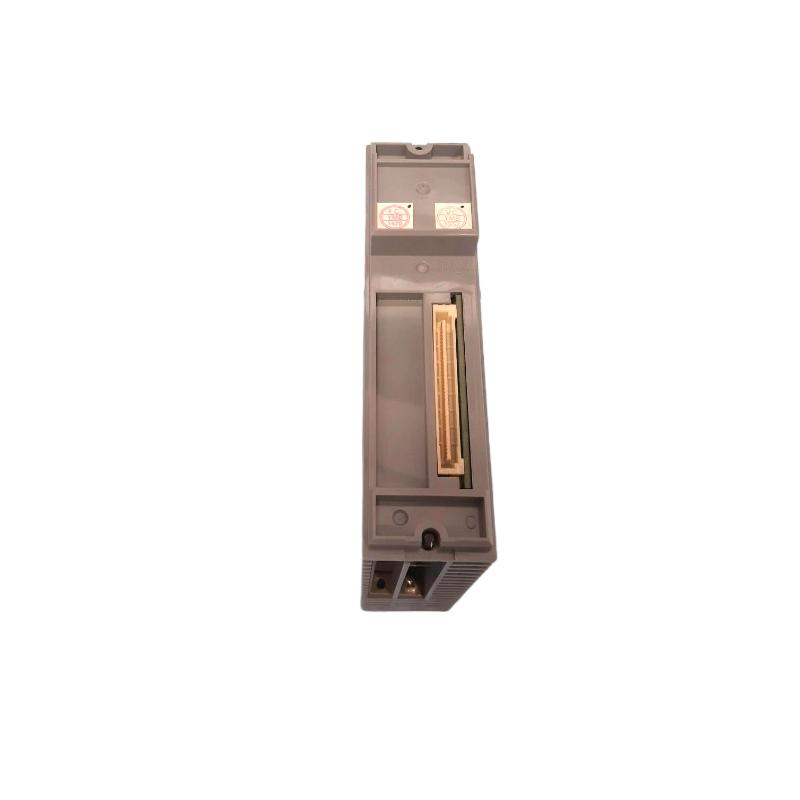

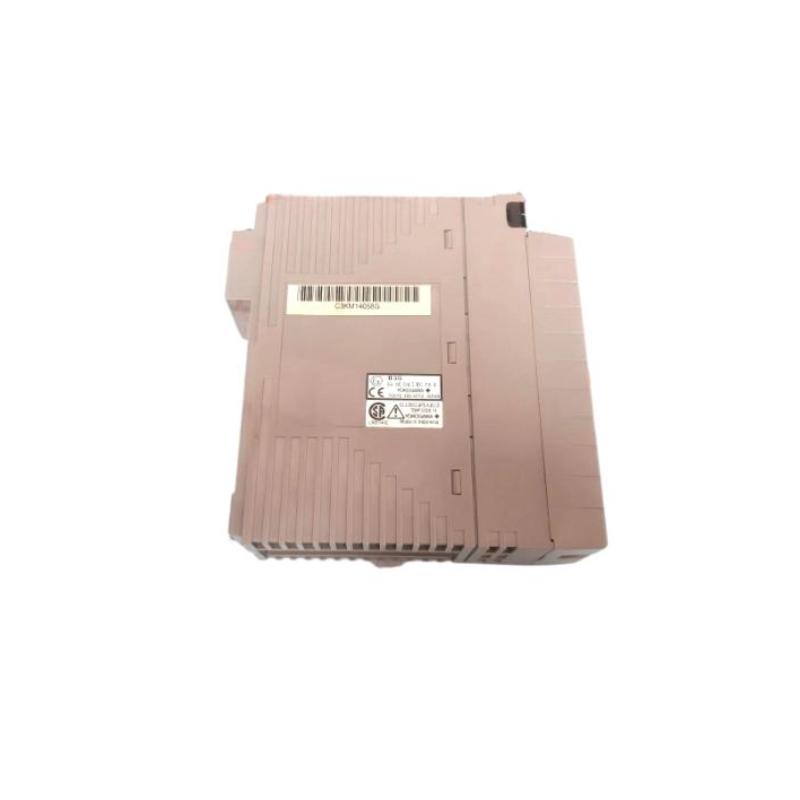

Yokogawa AAI141-S00/K400 Analog Input Module New In Stock

Overview

The Yokogawa AAI141-S00/K400 is a 16-channel analog input module developed for integration with Yokogawa’s CENTUM CS 3000 and CENTUM VP distributed control systems. It receives 4–20 mA analog current signals from field transmitters and converts them into digital signals for process control and monitoring. The “/K400” option code denotes a special calibration or factory configuration version designed for improved input precision and compatibility with specific process standards. This model is highly regarded for its accuracy, long-term reliability, and robust noise immunity, making it suitable for demanding applications in oil refining, power generation, and chemical processing.

General Information

• Part Number: AAI141-S00/K400

• Manufacturer: Yokogawa Electric Corporation

• Series: AAI (Analog Input Module Series)

• Type: Analog Input Module (AI)

• Number of Channels: 16 isolated analog input channels

• Signal Type: 4–20 mA DC current input

• Country of Origin: Japan

• Mounting: Installed on the Field I/O (FIO) base unit inside a control cabinet

• Technology: High-performance 16-bit A/D conversion, optical isolation, digital filtering, and integrated diagnostic logic for superior reliability and signal accuracy

Power Specifications

• Power Supply Voltage: 24 V DC (supplied from the I/O base)

• Input Voltage Range: 20–28 V DC

• Power Consumption: Approx. 6.5 W

• Input Power Source: Supplied through backplane connection

• Isolation: Optical isolation between channels and ground

• Protection: Overvoltage, reverse polarity, and surge protection

Communication & Interface

• Interface Type: Field I/O (FIO) bus communication

• System Compatibility: Yokogawa CENTUM CS 3000 / CENTUM VP

• Input Signal Range: 4–20 mA DC

• Input Resistance: 250 Ω typical

• Resolution: 16-bit A/D conversion

• Accuracy: ±0.1% of full scale or better

• Diagnostics: Built-in self-diagnostics with LED indicators for power, communication, and channel faults

• Configuration: Fully configurable using Yokogawa engineering software tools (CENTUM system builder and FIO configuration utility)

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: −20 °C to +70 °C

• Humidity: 10% to 90% RH, non-condensing

• Vibration Resistance: 10–60 Hz, amplitude 0.075 mm

• Protection Rating: IP20 (for installation inside an industrial cabinet)

• Maximum Operating Altitude: 2000 m

Dimensions & Weight

• Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

• Weight: 0.2 kg

Brand-new authentic inventory, always ready, and supported by 24-hour customer care.
