Overview

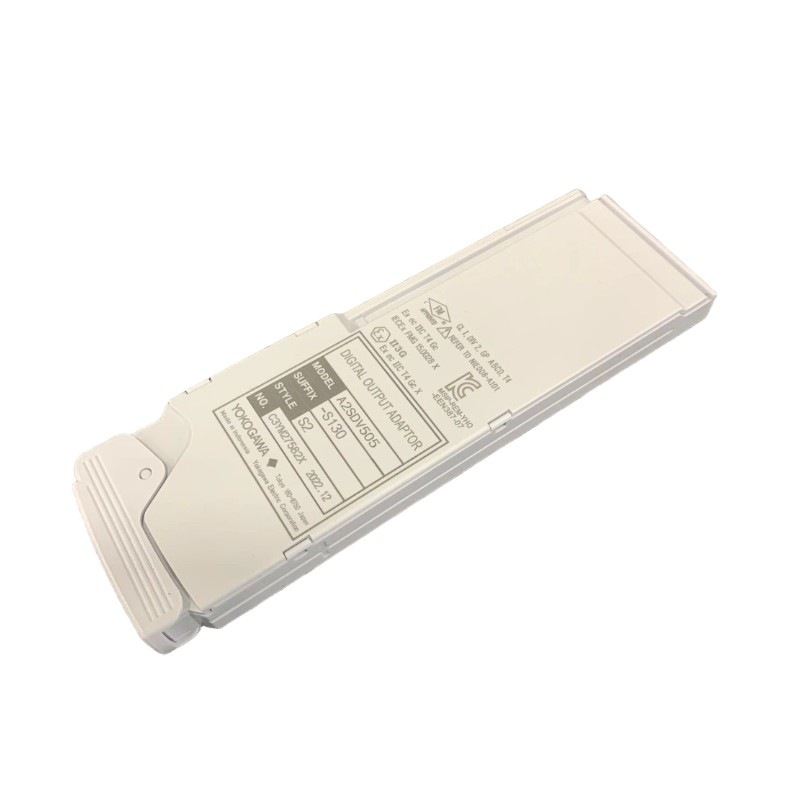

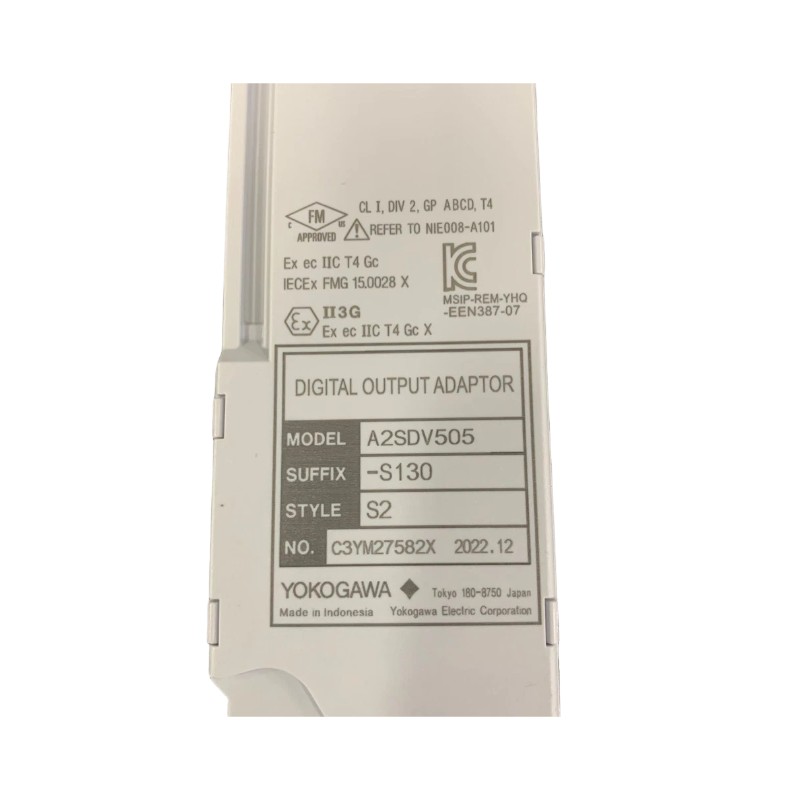

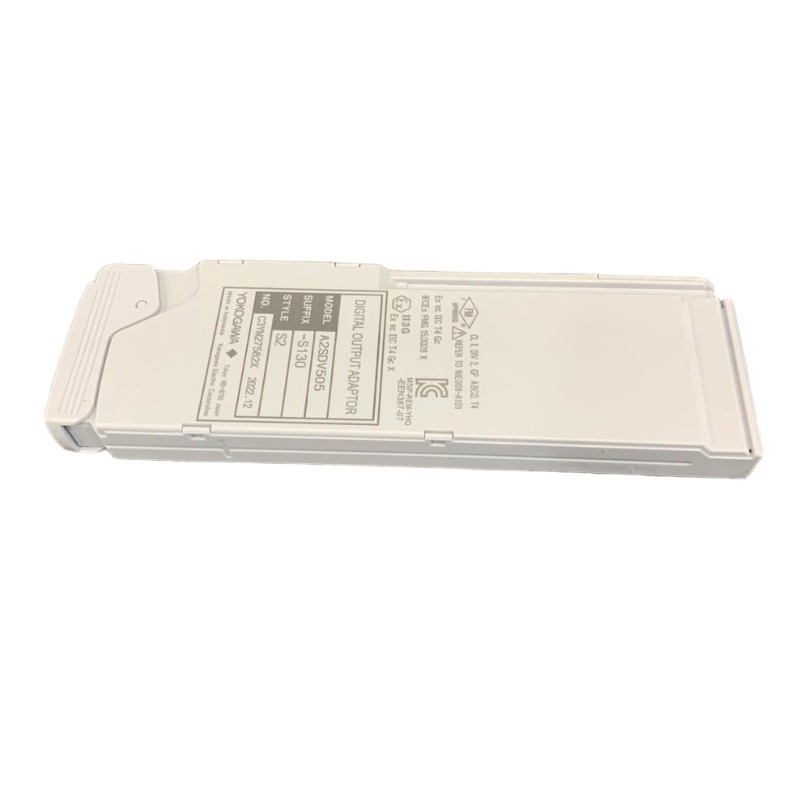

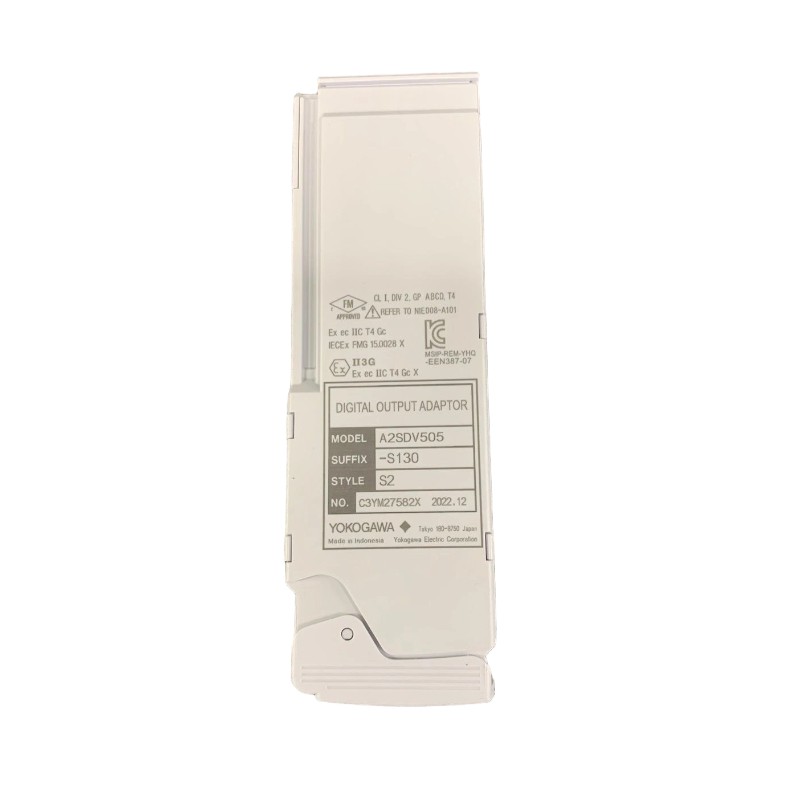

The Yokogawa A2SDV505-S000 is a digital output adaptor designed for the N-IO I/O adaptor system. It provides 24 V DC digital current-source output functionality and is mounted on the adaptor base plate to interface field devices with the I/O module in a distributed control system.

General Information
Brand: Yokogawa
Country of Origin: Japan
Model Number: A2SDV505-S000
Series: N-IO I/O Adaptors
Product Type: Digital Output Adaptor (24 V DC, 0.5 A current-source)
Application: Field device output signalling in control systems, automation I/O interface

Power Specifications
Rated Output Voltage: 24 V DC nominal
Maximum Output Current: Up to 0.5 A per channel (current-source output)
Load Type: Resistive or inductive loads (with appropriate suppression)
Protection Features: Withstanding voltage of 1500 V AC (1 minute) between output signal and system; isolated channels; monitoring of field power supply ripple

Communication & Interface
Output Channels: Single digital output channel per adaptor
Output Type: 24 V DC current source (0.5 A max)
Mounting: Plugged into adaptor base plate (model A2BN3D) which interfaces with I/O module
Diagnostics: Module supports status indication and monitors field power supply voltage ripple when mounted together with compatible modules

Environmental
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –55 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Installation: Mounted inside indoor industrial control cabinet; part of a modular I/O system

Dimensions & Weight
Dimensions (L × W × H): 130 × 12.8 × 40 mm
Weight: Approx. 0.1 kg
