Overview

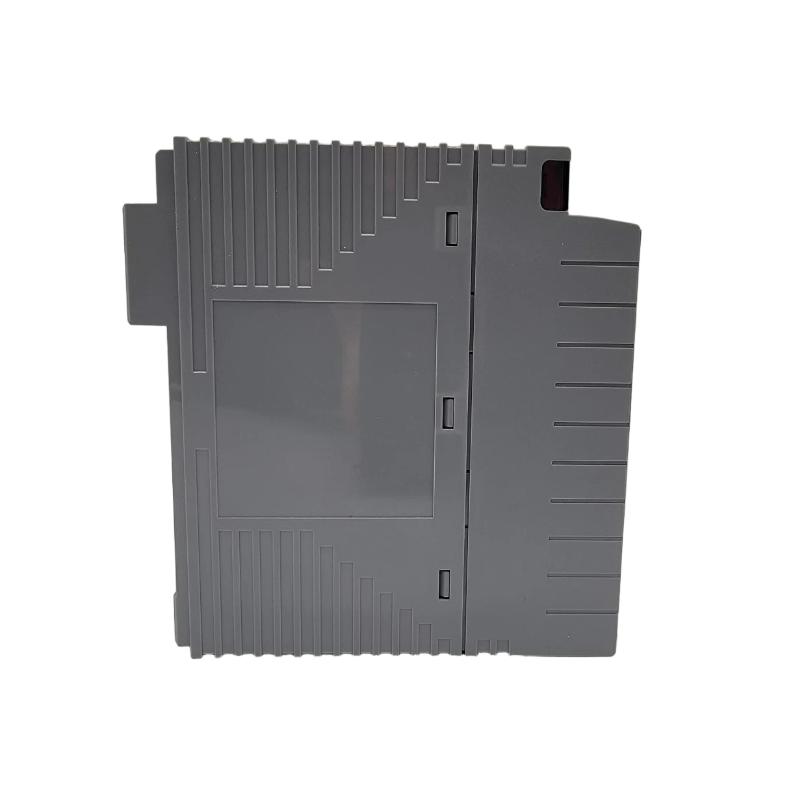

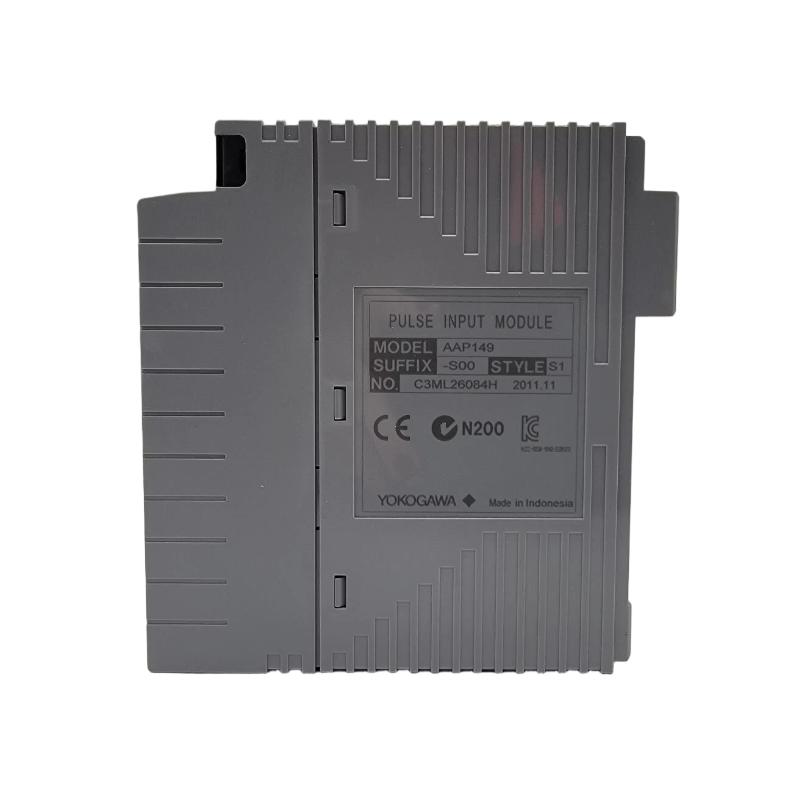

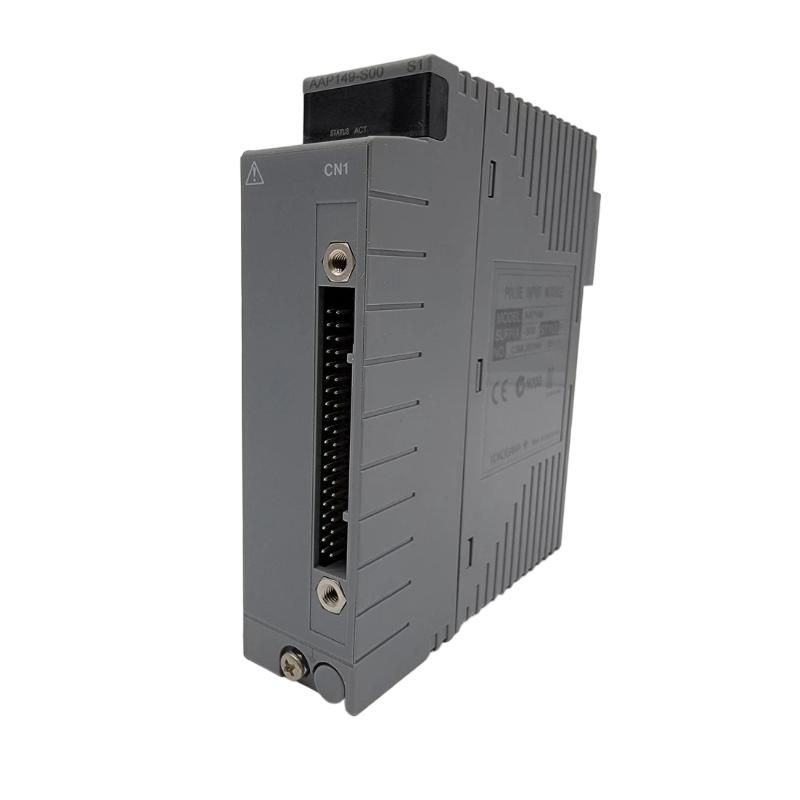

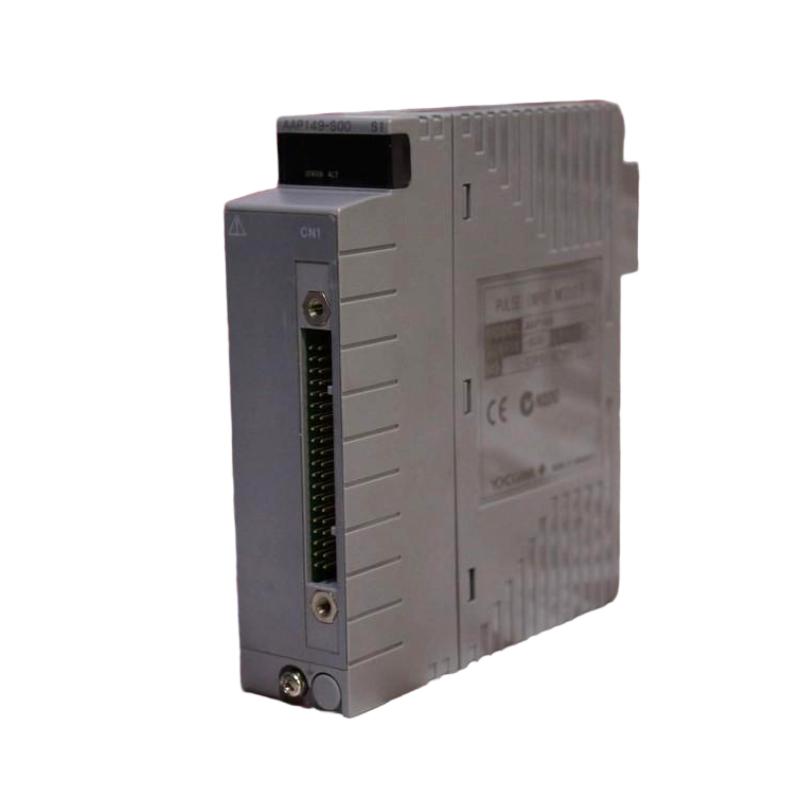

The Yokogawa AAP149-S00 is a 16-channel pulse input module designed for use in Yokogawa’s CENTUM VP/CS3000 control system. It accepts transistor contact or open-collector pulse inputs and converts them into digital data for process monitoring and control.

General Information
Brand: Yokogawa
Country of Origin: Japan
Model Number: AAP149-S00
Product Type: Pulse Input Module (16 channels)
Application: Industrial automation systems, pulse-counting from field devices such as flow meters and encoders

Power Specifications
Supply Voltage: 5 V or 24 V DC (system dependent)
Maximum Current Consumption: Up to approx. 400 mA at 5 V DC
Input Format: Transistor contact (open-collector) compatible

Communication & Interface
Channels: 16 non-isolated input channels
Input Frequency: 0 to 6 kHz
Update Period: Approx. 2 ms
Connection: Standard I/O rack backplane interface

Environmental
Operating Temperature: 0 °C to +50 °C
Storage Temperature: −20 °C to +60 °C
Humidity: Up to 95% RH, non-condensing
Installation: Mounted in industrial control cabinet or system rack

Dimensions & Weight
Dimensions (L × W × H): 127.2 × 32.8 × 130 mm
Weight: Approx. 0.30 kg
