Overview

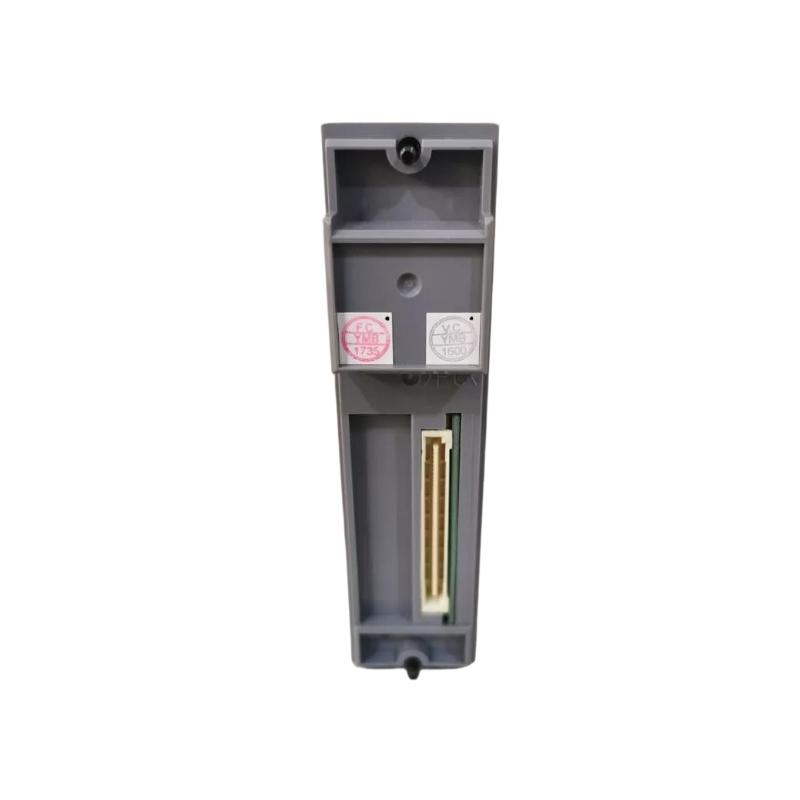

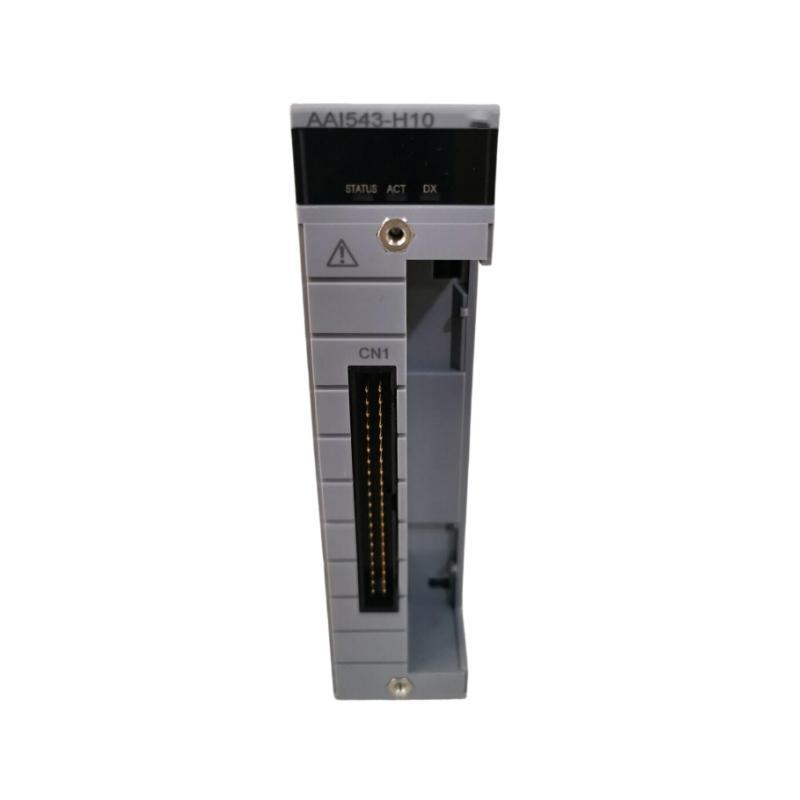

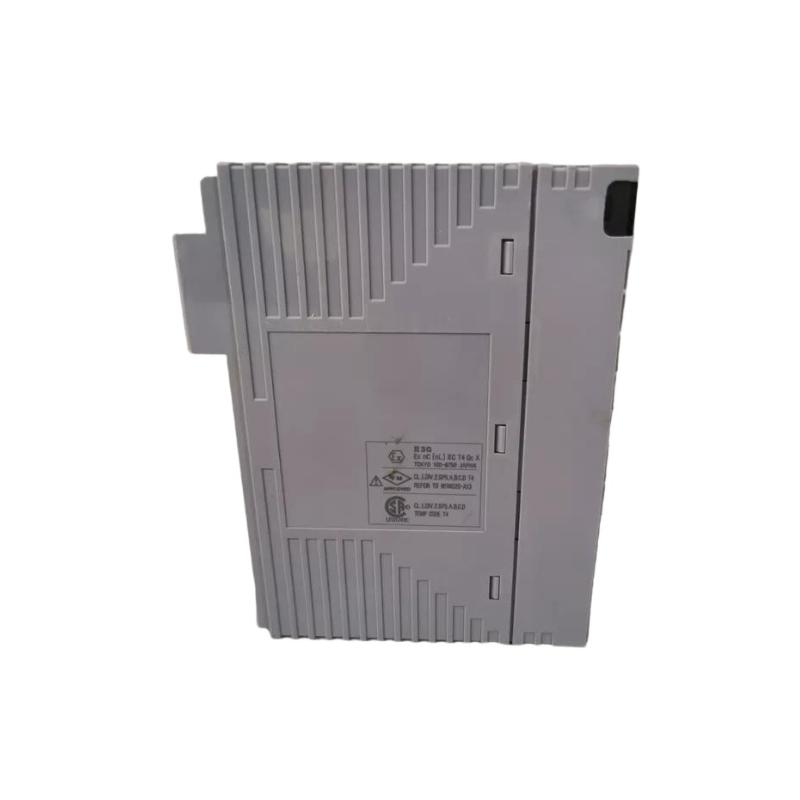

The Yokogawa AAI543-H10 is an analog input module for the CENTUM DCS system. It converts analog signals from field devices into digital data, ensuring precise monitoring and control of industrial processes.

General Information

• Part Number: AAI543-H10

• Manufacturer: Yokogawa

• Module Type: Analog Input Module

• Series / Family: CENTUM DCS Analog I/O Modules

• Country of Origin: Japan

• Mounting: Rack-mounted in CENTUM DCS chassis

Power Specifications

• Supply Voltage: 24 V DC (via system backplane)

• Power Consumption: ≤ 6 W

• Input Source: Powered via system backplane

• Protection: Surge and reverse-polarity protection

Communication & Interface

• Signal Input: Voltage or current analog signals

• Channels: 8–16 input channels depending on configuration

• Diagnostics: LED indicators for status, error detection, and module health

• Functions: Converts analog field signals to digital values for the DCS controller

Environmental

• Operating Temperature: 0 °C to +55 °C

• Storage Temperature: -20 °C to +70 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (cabinet environment)

Dimensions & Weight

• Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

• Weight:0.4 kg
