Overview

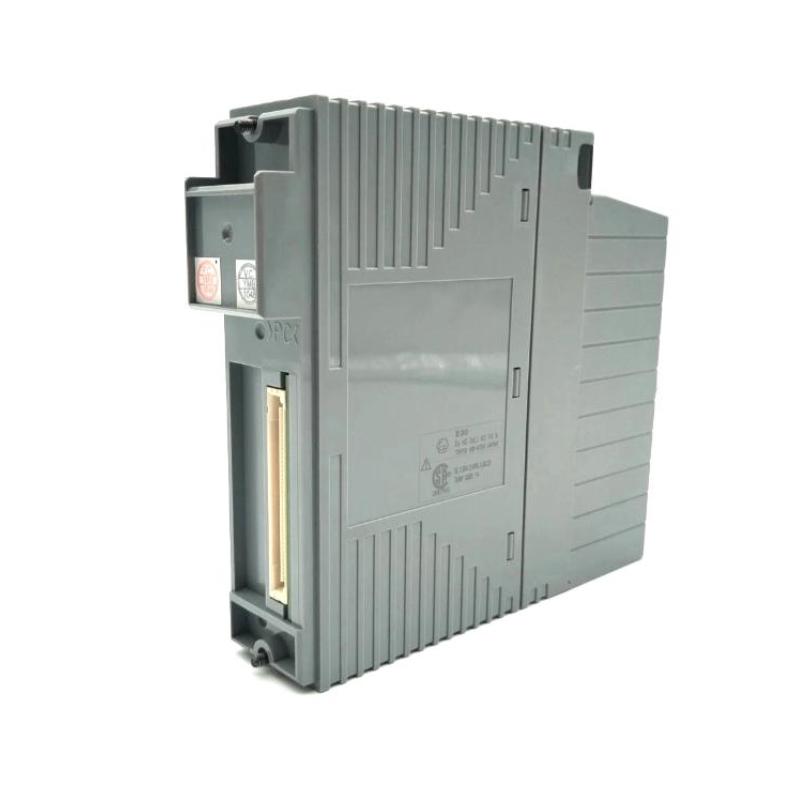

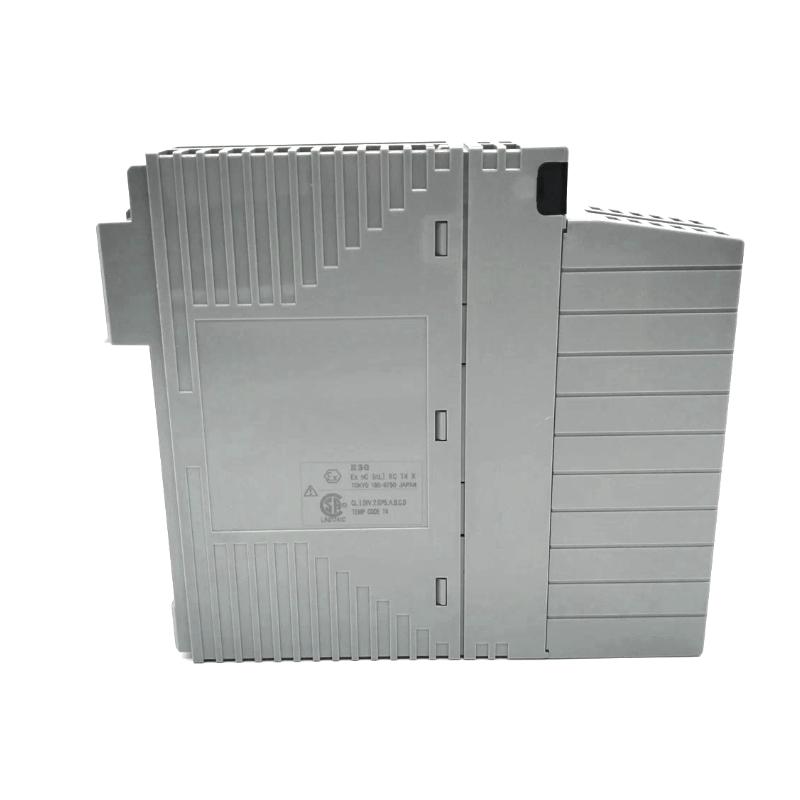

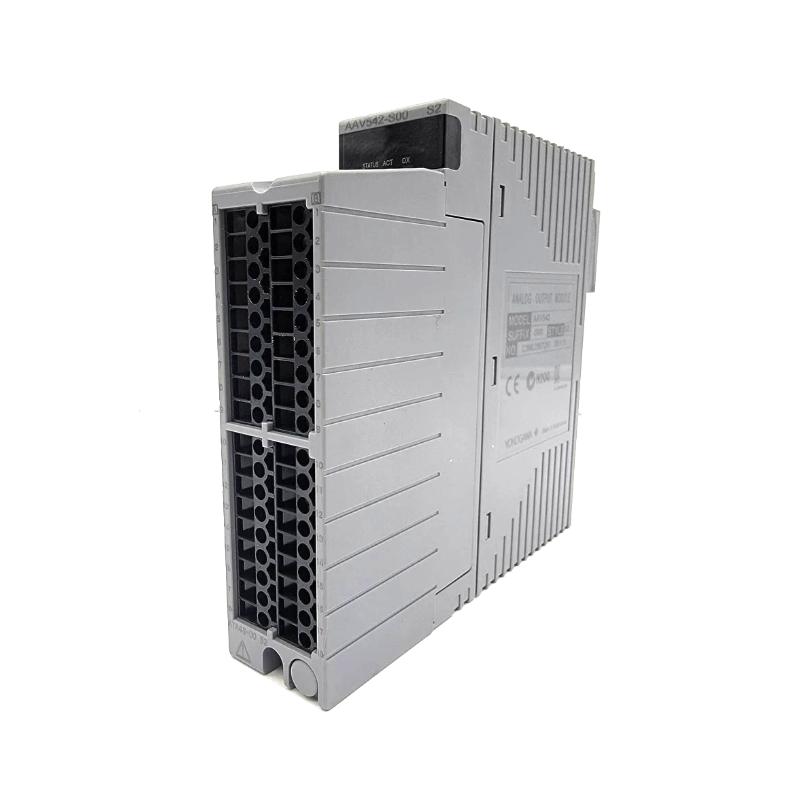

The Yokogawa AAV542‑S00 is a 16‑channel non‑isolated analog output module, designed to provide voltage signals in the range of –10 to +10 V for process control and automation tasks.
General Information
Part Number: AAV542‑S00
Brand / Country of Origin: Yokogawa / Japan
Product Type: Analog Output Module
Series: AAV542
Power Specifications
Output Channels: 16 non‑isolated voltage outputs
Signal Range: –10 V to +10 V
Accuracy: ±0.3 % of full scale or ±12 mV, whichever is greater
Response Time: 40 ms typical
Communication & Interface
Interface Type: Rack‑mounted module with backplane connection
Signal Connections: Terminals for analog voltage outputs and required wiring
Diagnostics: Channel status monitoring and fault indication
Environmental
Operating Temperature: –20 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed in enclosure
Dimensions & Weight
Dimensions (L × W × H): 107.5 × 130 × 32.8 mm
Weight: Approx. 0.20 kg
