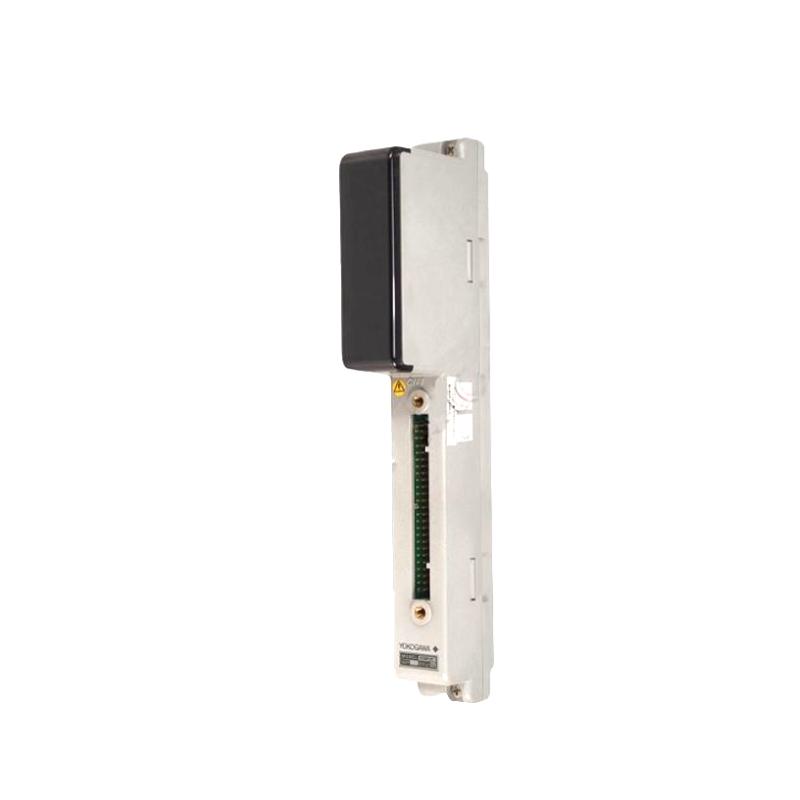

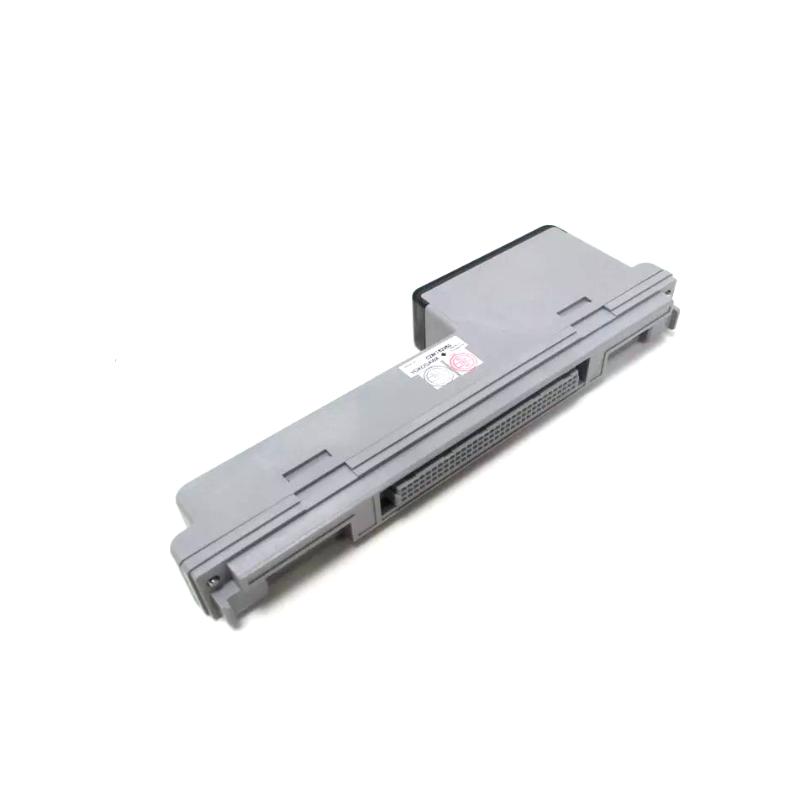

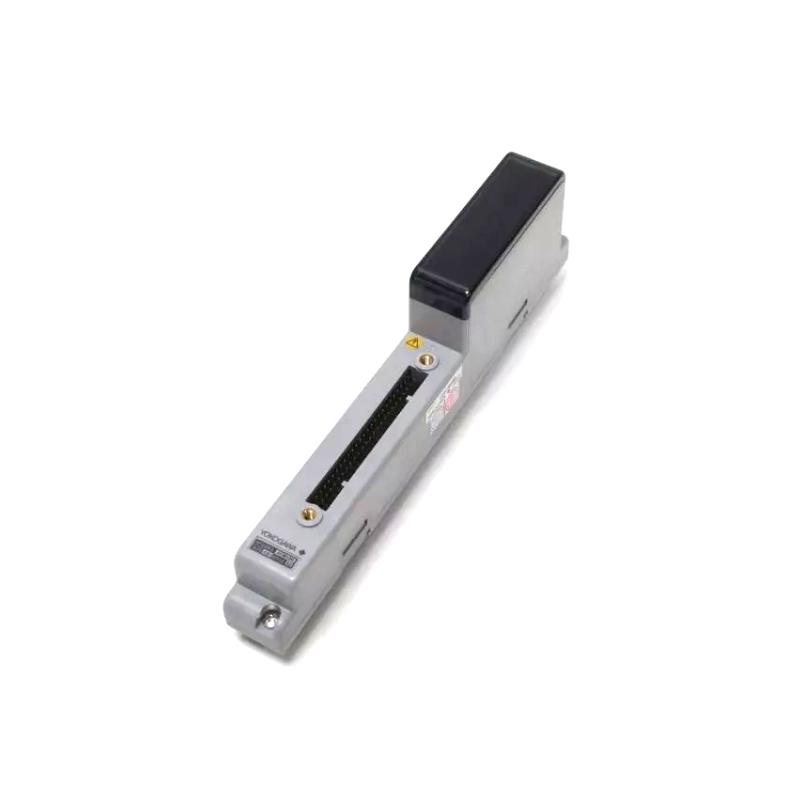

Yokogawa ADM12C | 32-Channel Contact Input Module 100% New

Overview

The ADM12C is a 32-channel contact input module by Yokogawa, designed for industrial DCS environments. It monitors discrete contact-type signals such as limit switches and push-buttons, converting them for system logic use.

General Information

Brand: Yokogawa
Country of Origin: Japan
Model: ADM12C
Type: Contact Input Module
Channels: 32 points
Function: Captures and processes external contact signals and interfaces to the control system backplane
Mounting: Rack or module nest installation

Power Specifications

Supply Voltage: 5 V DC (system backplane)
Power Consumption: Up to 600 mA at 5 V DC
Contact Rating: 5 V DC minimum at 20 mA (external contact standard)
Pulse Width: Minimum 40 ms
Pulse Period: Maximum 10 Hz

Communication & Interface

Interface Type: Digital contact input interface
Input Type: Dry contacts or voltage-driven contacts (Normally Open or Normally Closed)
Isolation: Common minus side provided every 16 points
Function: Converts contact inputs into system logic state for monitoring and control

Environmental

Operating Temperature: 0 °C to +60 °C
Humidity: 5% to 95% RH, non-condensing
Installation Environment: Industrial control cabinet or rack system

Dimensions & Weight

Dimensions: Approximate 200 x 130 x 30 mm
Weight: Approx. 0.35 kg

Brand-new and unused stock, always available with immediate quotations.
