Overview

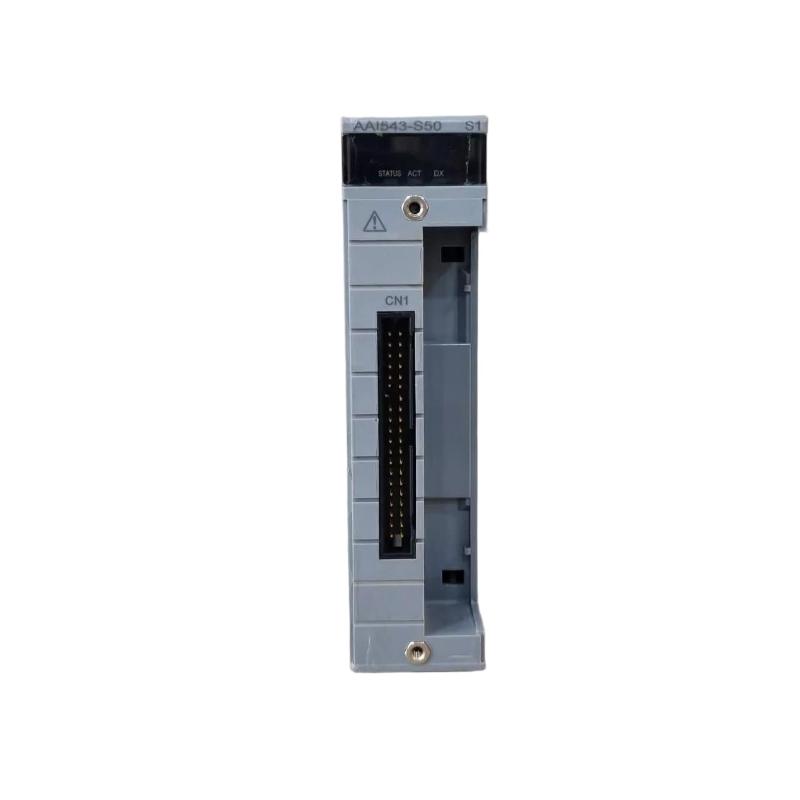

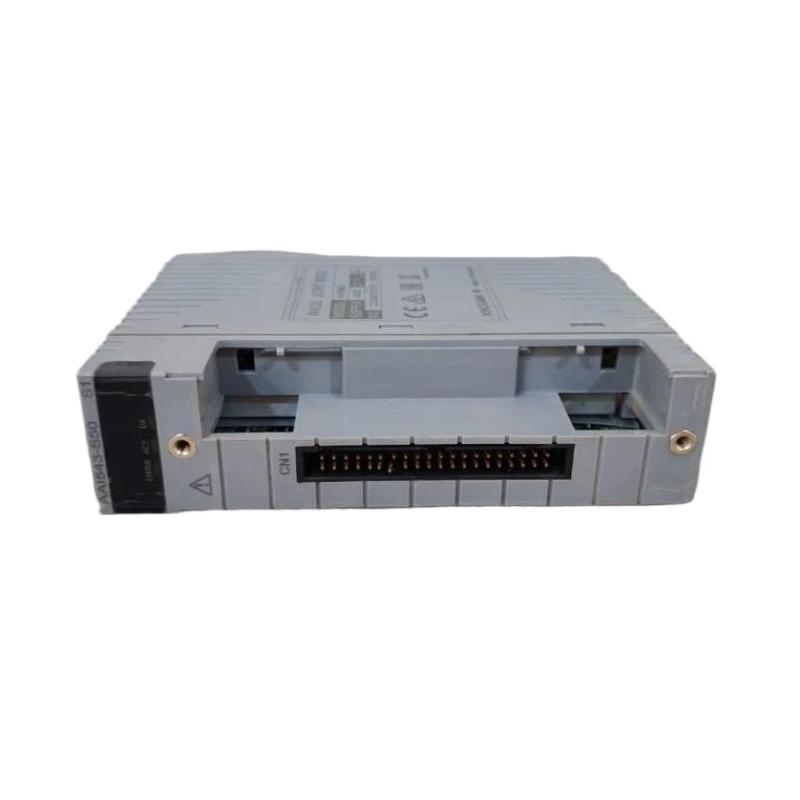

The Yokogawa AAI543-S50 S1 is a 16-channel analog output module designed for Yokogawa's CENTUM VP Distributed Control System (DCS). It provides isolated 4–20 mA DC output signals, ensuring precise control of field devices such as actuators and control valves.

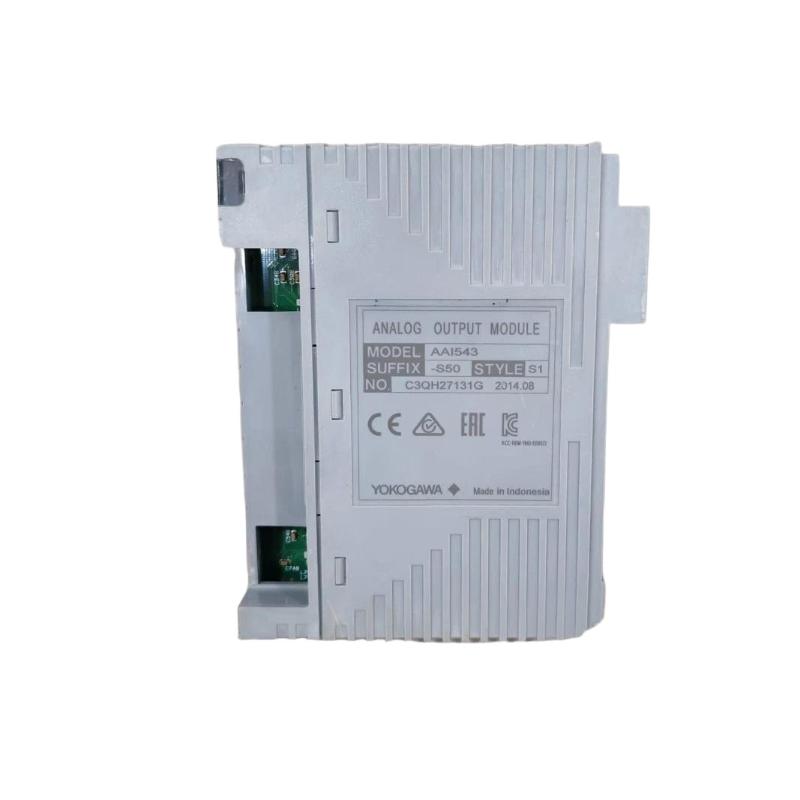

General Information

• Manufacturer: Yokogawa Electric Corporation

• Origin: Japan

• Model Number: AAI543

• Suffix: S50 S1

• Type: Analog Output Module

• Function: Provides 16 isolated 4–20 mA output channels

• Applications: Industrial automation, process control systems

Electrical Specifications

• Output Channels: 16

• Output Signal: 4–20 mA DC

• Accuracy: ±0.1% of span

• Allowable Load Resistance: 0–750 Ω

• Withstanding Voltage: 1500 V AC between output and system for 1 minute

• Isolation: Channel-to-channel and channel-to-system

• Data Update Period: 10 ms

• Maximum Current Consumption: 230 mA (5 V DC), 540 mA (24 V DC)

• Supply Voltage: 19.0–25.5 V DC (at 20 mA output)

Environmental Specifications

• Operating Temperature Range: −10°C to +70°C

• Protection Rating: IP20

• Conformal Coating: Yes, for protection against dust and moisture

Dimensions & Weight

• Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

• Weight: 0.4 kg
