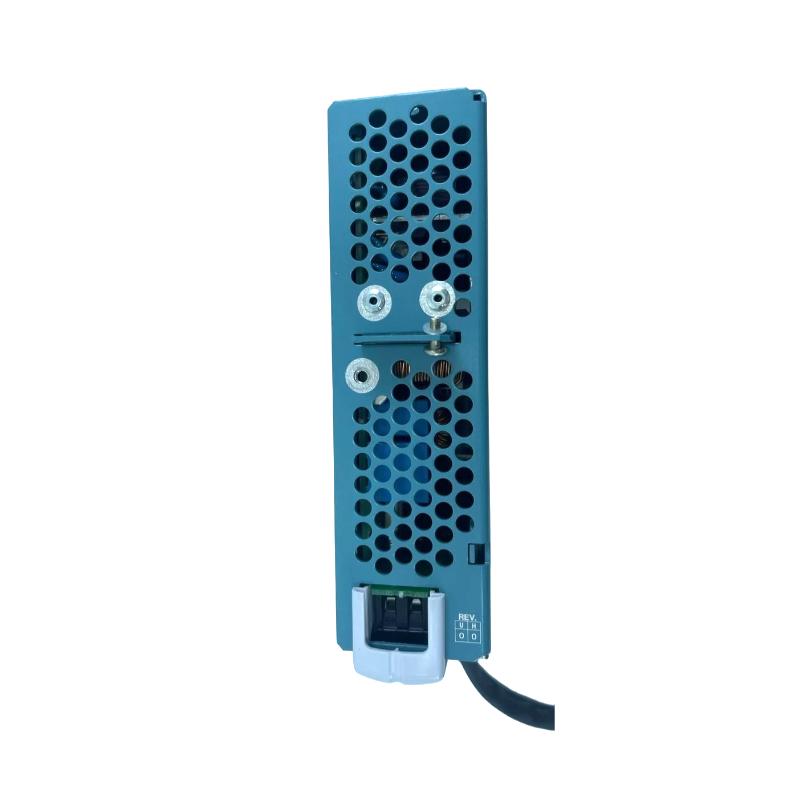

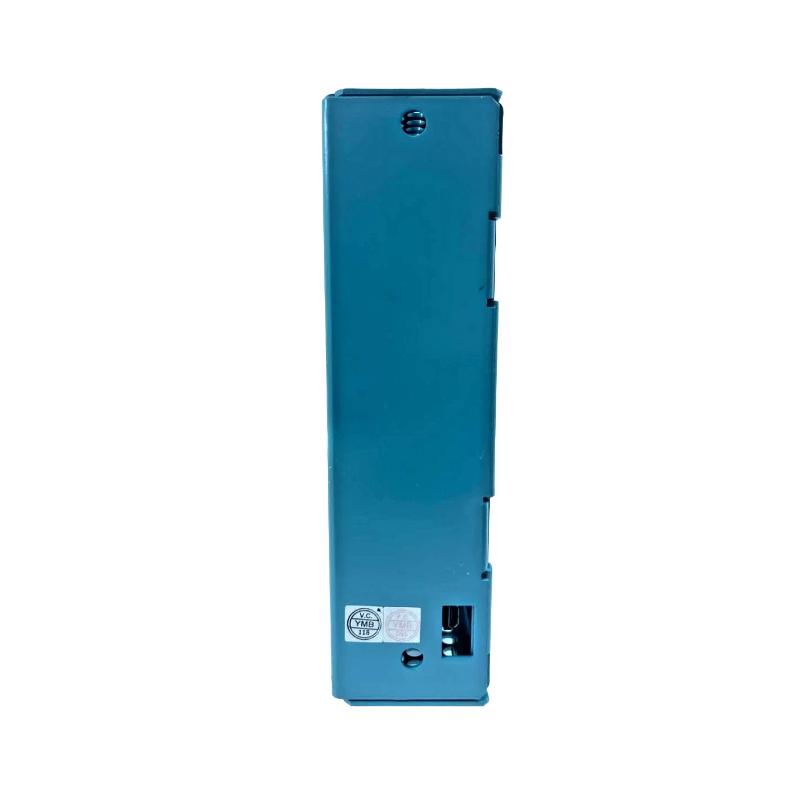

Yokogawa A2PW503-S0002 24 V DC Output Power Supply Unit New In Stock

Overview

The A2PW503-S0002 is a 24 V DC output power-supply unit designed for use in Yokogawa’s N-IO system architecture. It supports either single or dual-redundant configurations and is suitable for driving I/O modules, base plates and field devices in control systems.

General Information

• Part Number: A2PW503-S0002

• Model Type: A2PW503

• Manufacturer: Yokogawa Electric Corporation

• Country of Origin: Japan

• Product Category: 24 V DC Output Power Supply Unit (external power supply for N-IO)

• Intended Use: For system power supply to I/O modules and field units in Yokogawa N-IO installations.

Electrical & Functional Specifications

• Input Voltage (AC version): 100 to 240 V AC, 50/60 Hz

• Input Voltage (DC version): 24 V DC

• Input Voltage Tolerance: AC: 85 to 264 V AC; DC: 20.4 to 28.8 V DC

• Rated Output Voltage: 24 V DC (+4% / -6%)

• Rated Output Current: 5 A

• Efficiency (typical): ~90%

• Maximum Input Power Consumption: ~165 VA (AC input version)

• Withstanding Voltage (Input ↔ Output): 3000 V AC for 1 minute (AC version)

• Withstanding Voltage (Input ↔ Ground): 1500 V AC for 1 minute (AC version)

• Insulation Resistance (Input ↔ Output): ≥50 MΩ at 500 V DC

• Output Hold-Up Time (AC version): ~90 ms (at rated output)

• Redundant Output Support: Supports dual-redundant configuration with output balance for increased reliability.

Environmental & Physical Specifications

• Operating Temperature Range: 0 °C to +60 °C (standard)

• Extended Temperature Option: -40 °C to +70 °C (optional)

• Storage Temperature Range: -40 °C to +85 °C

• Humidity (Operating & Storage): 5 % to 95 % RH (non-condensing)

• Mounting: DIN-rail mounting (TH35-7.5 rail)

• Weight: 1.2 kg

• Dimensions: 200 × 80 × 250 mm
