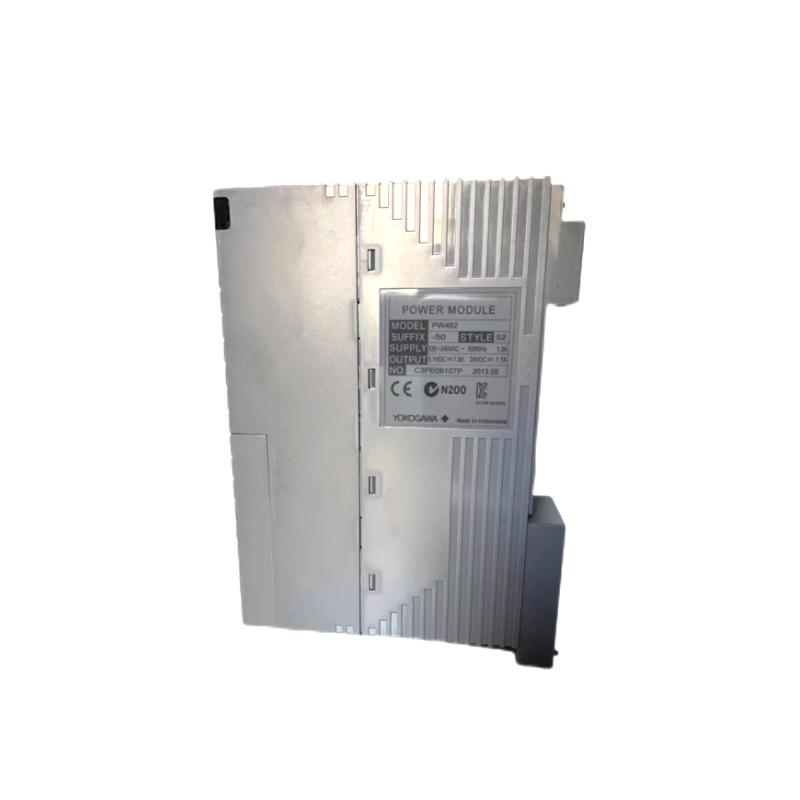

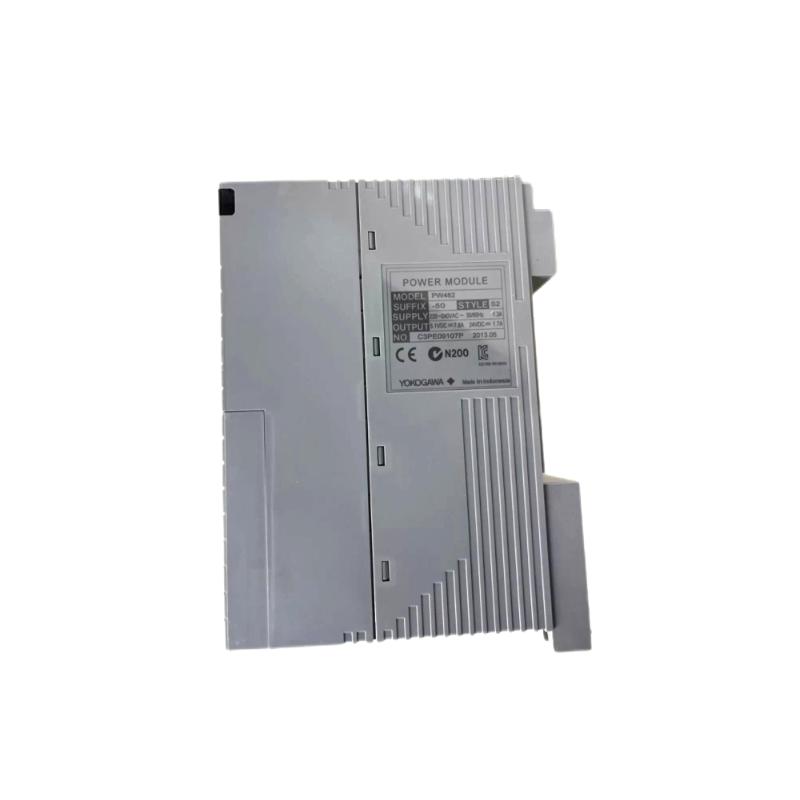

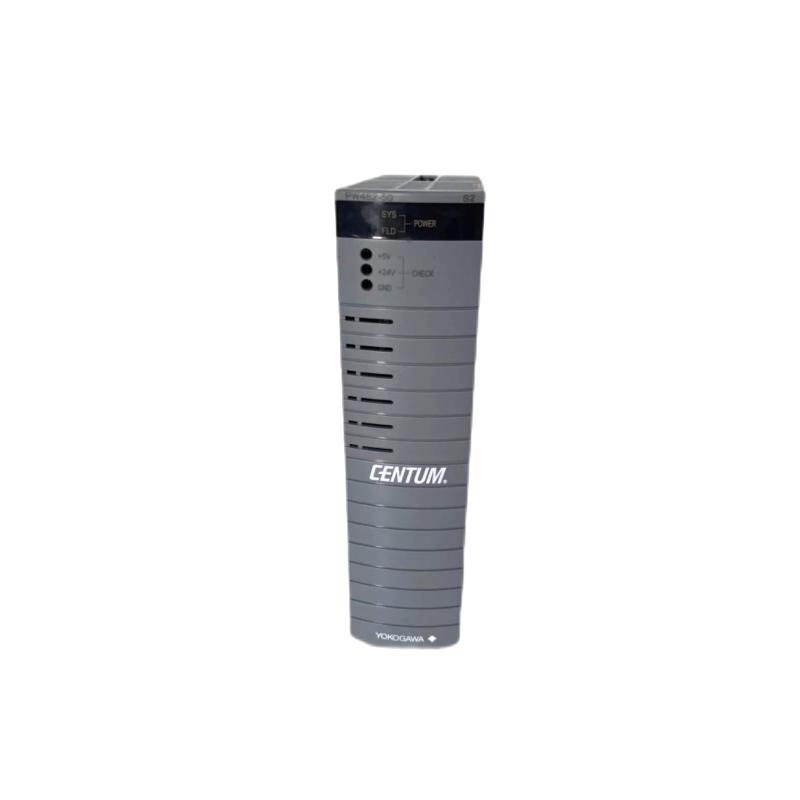

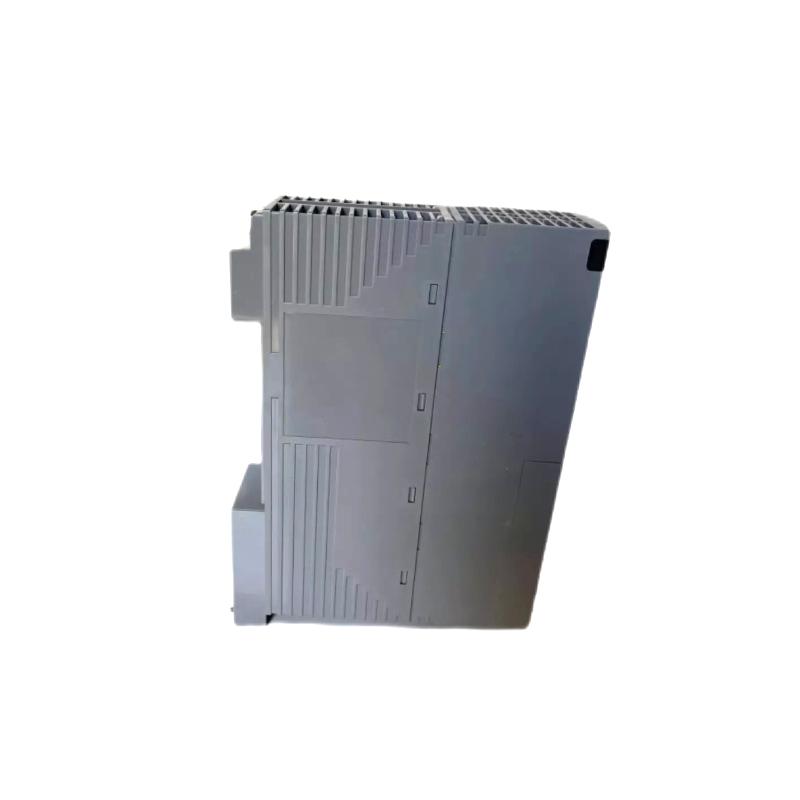

Yokogawa PW482-50 | 220-240 V AC Input Power Supply Module 100% New

Overview
The Yokogawa PW482-50 is a power supply module designed for Yokogawa industrial automation systems. It accepts 220-240 V AC input (or alternative input types with suffix codes) and provides regulated power to controller racks, supporting dual-redundant configurations for improved system reliability.

General Information

• Part Number: PW482-50

• Manufacturer: Yokogawa

• Series: PW48x Series

• Type: AC Input Power Supply Module

• Installation: Slots P1 or P2 in Yokogawa FCU, node unit, or repeater unit

• Country of Origin: Japan

Power Specifications

• Input Voltage: 220-240 V AC ±10%, 50/60 Hz ±3 Hz

• Maximum Power Consumption: Up to approx. 230 VA for this class of module with full load

• Redundancy Support: Capable of dual-module configuration for redundancy

• Protection & Interfaces: Surge protection, reverse-polarity protection, exclusive connector interface

Communication & Interface

• Module Function: Provides power supply only — no external communication ports

• Indicators / Status: System diagnostics monitor power status; module status visible via system interface

• Redundancy Configuration: Two identical modules of same model code enable dual-redundant power feed

Environmental

• Operating Temperature: Standard industrial range (refer system cabinet spec)

• Storage Temperature: Standard industrial range

• Humidity: Up to 95% RH, non-condensing

• Protection Rating: IP20 (when installed inside a control cabinet)

Dimensions & Weight

• Dimensions: 49.7  × 146.5  × 190 mm

• Weight: Approximately 1 kg

100% new and original products, with guaranteed stock and fast quotation replies.
