Overview

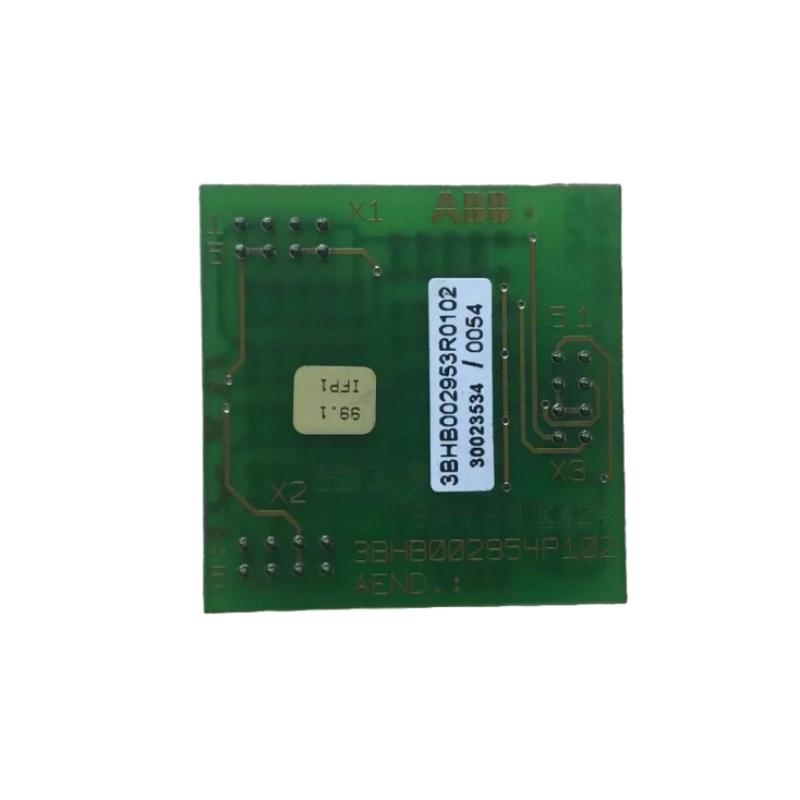

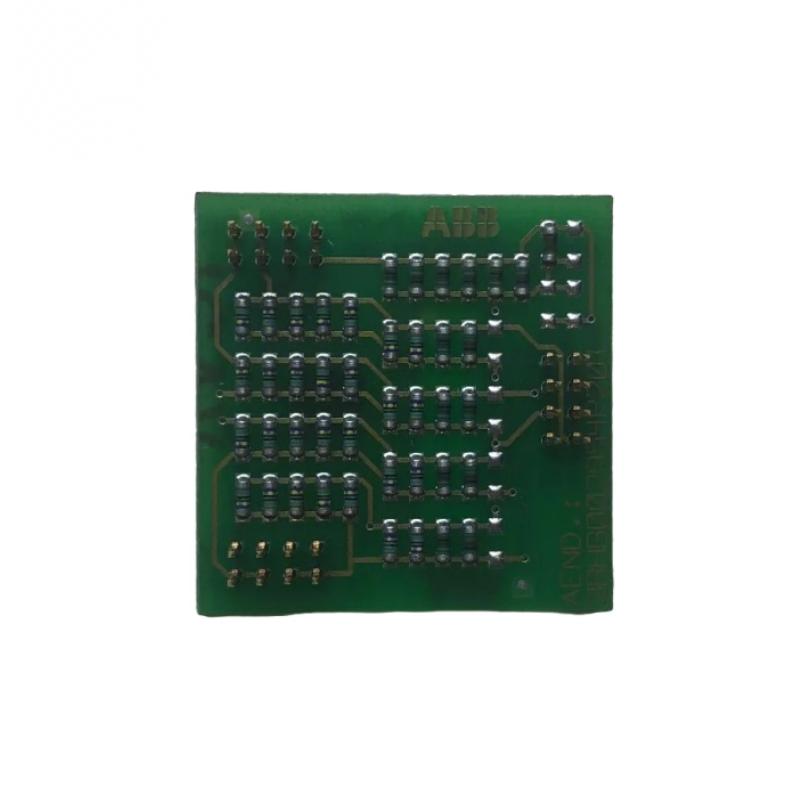

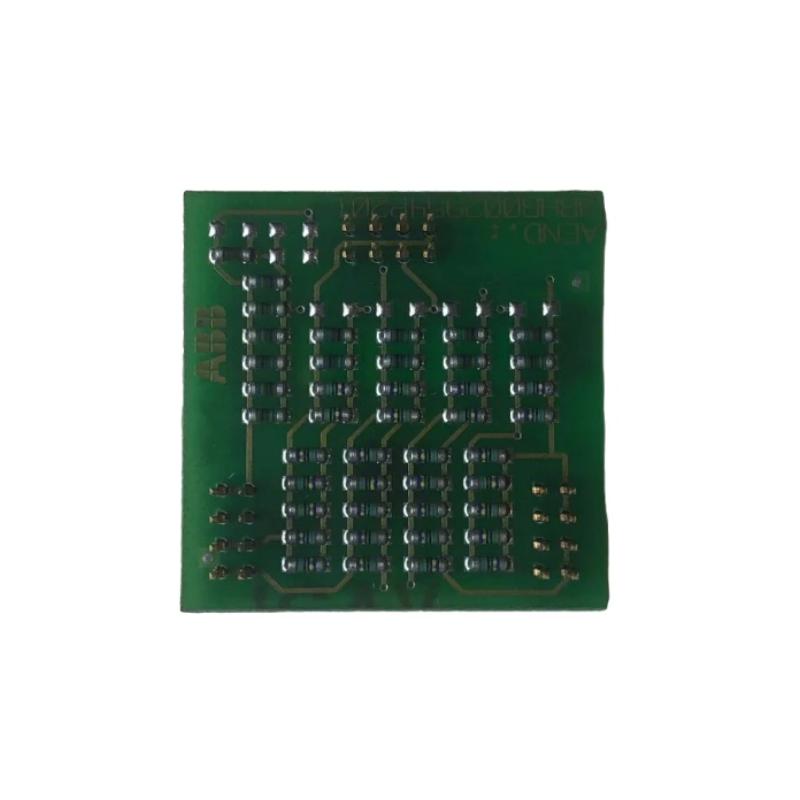

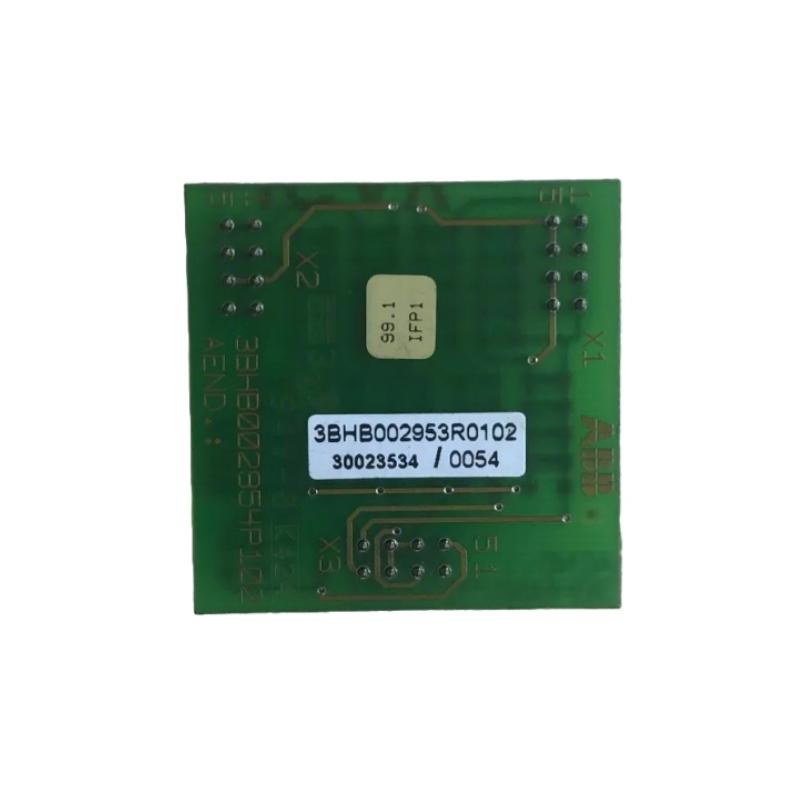

The ABB 3BHB002953R0102 is an advanced circuit board module developed for ABB’s industrial automation and drive systems. It is designed to provide reliable signal processing and communication between system components, ensuring stable and efficient operation in demanding environments.
General Information
Brand: ABB
Country of Origin: Sweden
Part Number: 3BHB002953R0102
Type: Circuit Board / Control Module
Function: Handles internal control, communication, and logic processing within ABB systems
Application: Commonly used in drive control, power systems, and industrial automation platforms
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: Approx. 5 W
Input Source: Controller backplane or external supply
Protection: Over-voltage and reverse-polarity protection
Communication & Interface
Interface Type: Internal system bus and signal connectors
Communication Role: Transmits data between main control unit and peripheral modules
Indicators: LED status indicators for power and operation
Mounting: Plug-in card installation within control chassis
Environmental
Operating Temperature: −25 to +70 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Standard industrial indoor conditions
Dimensions & Weight
Dimensions (L × W × H): 220 × 115 × 25 mm
Weight: Approx. 0.25 kg
