Overview

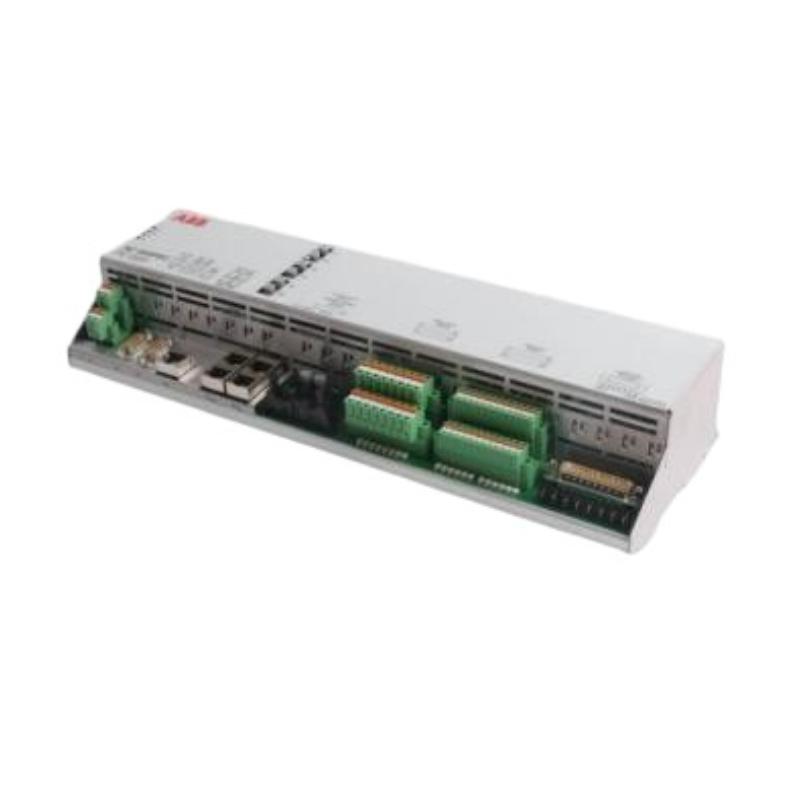

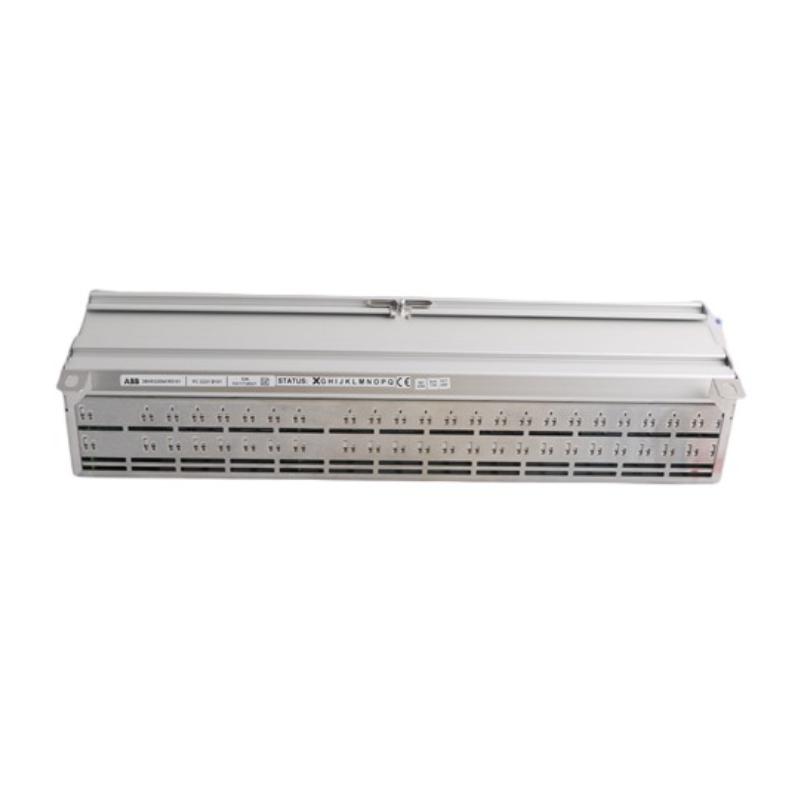

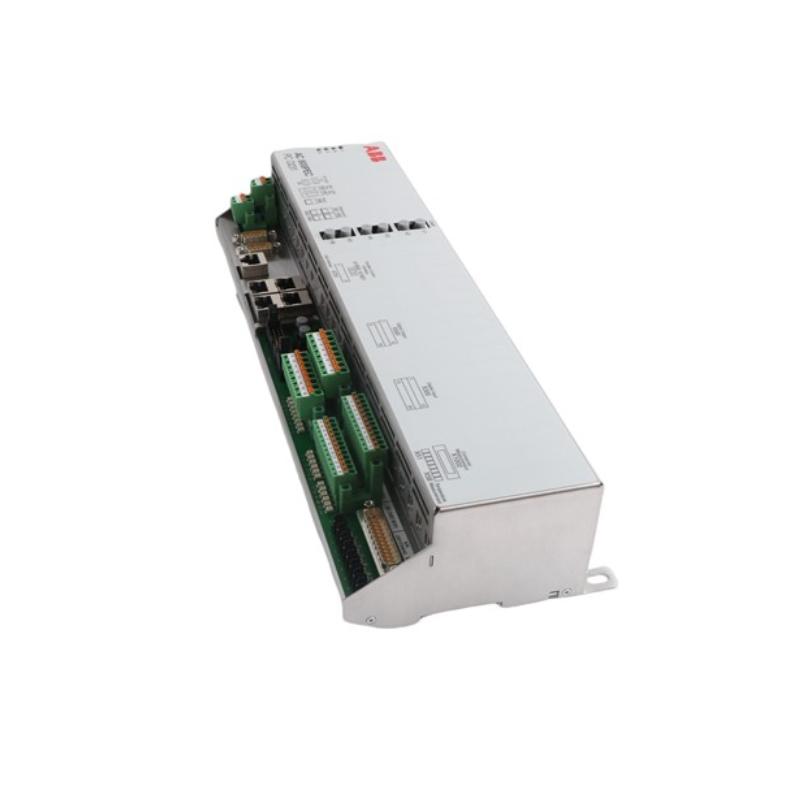

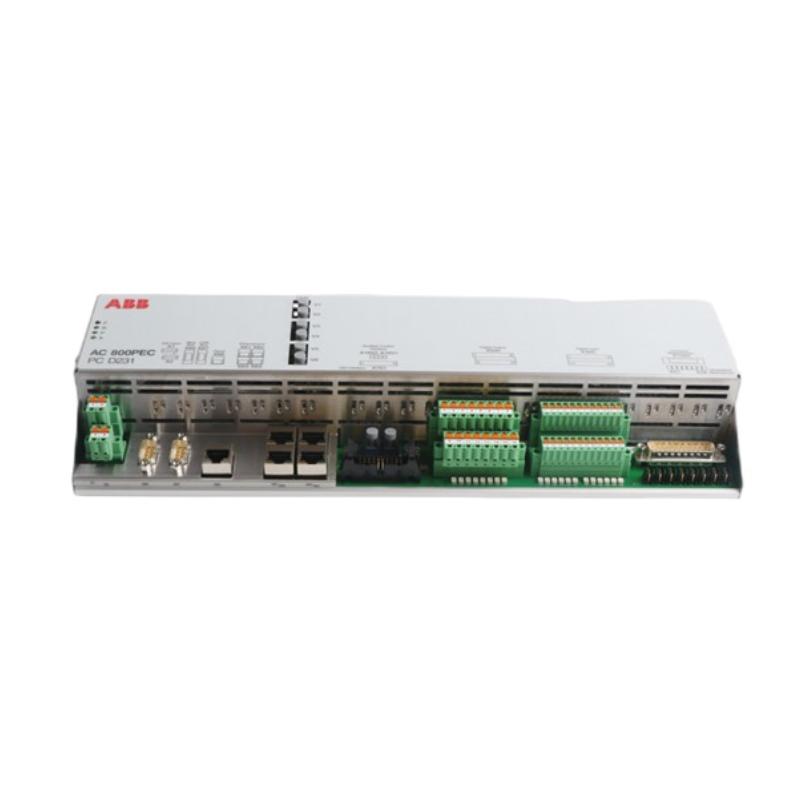

The ABB PCD231 (3BHE024642R0101) is a programmable controller module designed for industrial automation and process control applications. It provides flexible control logic, signal processing, and communication capabilities within ABB’s PCD system architecture.
General Information
Brand: ABB
Country of Origin: Sweden
Model Number: PCD231 / 3BHE024642R0101
Product Type: Programmable Controller Module
Application: Industrial automation, process control, machine monitoring, and system integration
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: Approx. 10 W
Protection: Over-voltage and reverse-polarity protection
Communication & Interface
Interface Type: System bus connection for modular PCD system
Connectivity: Supports digital and analog I/O modules
Diagnostics: Status LEDs and fault reporting for system monitoring
Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: −20 to +70 °C
Humidity: Up to 95% RH, non-condensing
Installation: Panel or rack mounted in industrial control cabinets
Dimensions & Weight
Dimensions (L × W × H): 142 × 373 × 73.5 mm
Weight: 1.43 kg
