Overview

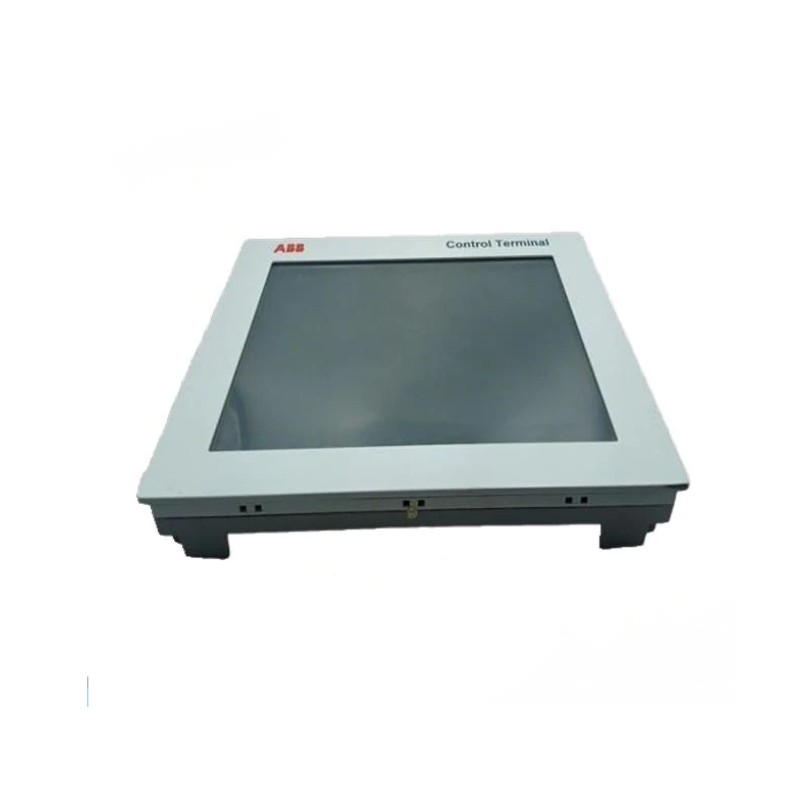

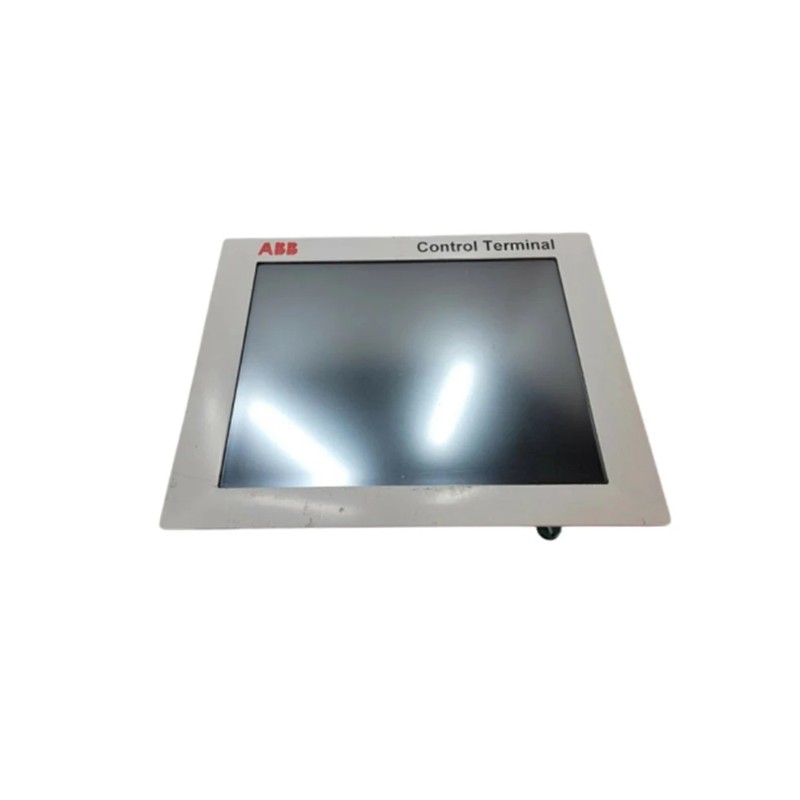

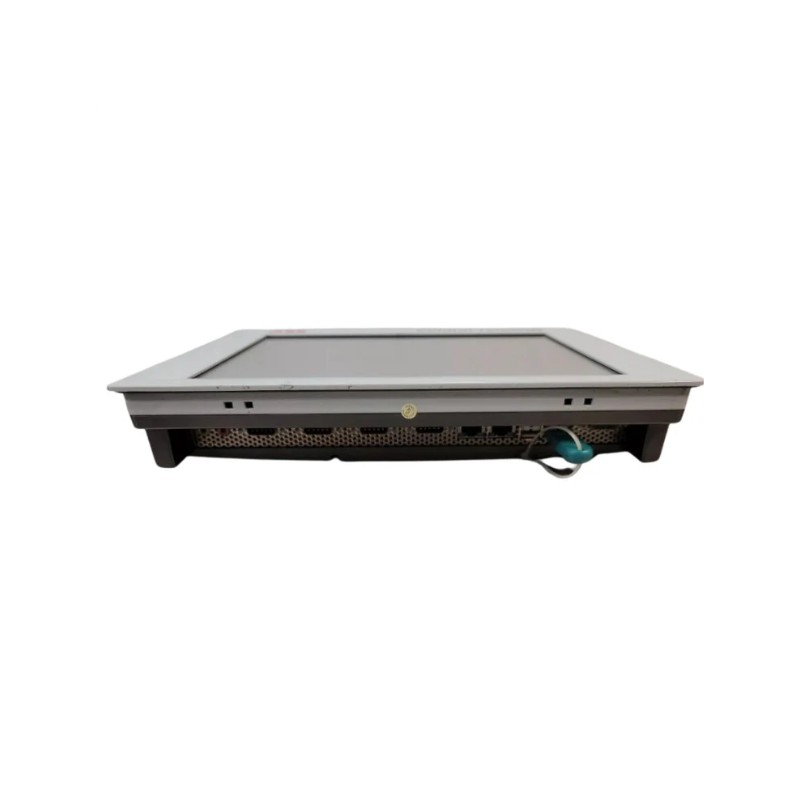

The ABB TPC-1570H (3BHE031734R1112) is a high-performance touch panel controller designed for ABB industrial automation systems. It provides real-time visualization, operator interface, and control capabilities for complex process and machine automation applications.
General Information
Brand: ABB
Country of Origin: Sweden
Model Number: TPC-1570H / 3BHE031734R1112
Product Type: Touch Panel Controller / HMI
Application: Operator interface for monitoring and controlling industrial processes
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: Approx. 25 W
Protection: Over-voltage and reverse-polarity protection
Communication & Interface
Display Type: TFT color touchscreen
Resolution: 1024 × 768 pixels
Interface Ports: Ethernet, RS-232/RS-485, USB, and optional fieldbus modules
Connectivity: Connects to ABB controllers, PLCs, and I/O modules for real-time monitoring
Environmental
Operating Temperature: 0 to +50 °C
Storage Temperature: −20 to +60 °C
Humidity: 10–90% RH, non-condensing
Mounting: Panel-mounted in industrial control cabinets
Dimensions & Weight
Dimensions (L × W × H): Approx. 400 × 310 × 80 mm
Weight: Approx. 4.5 kg
