Overview

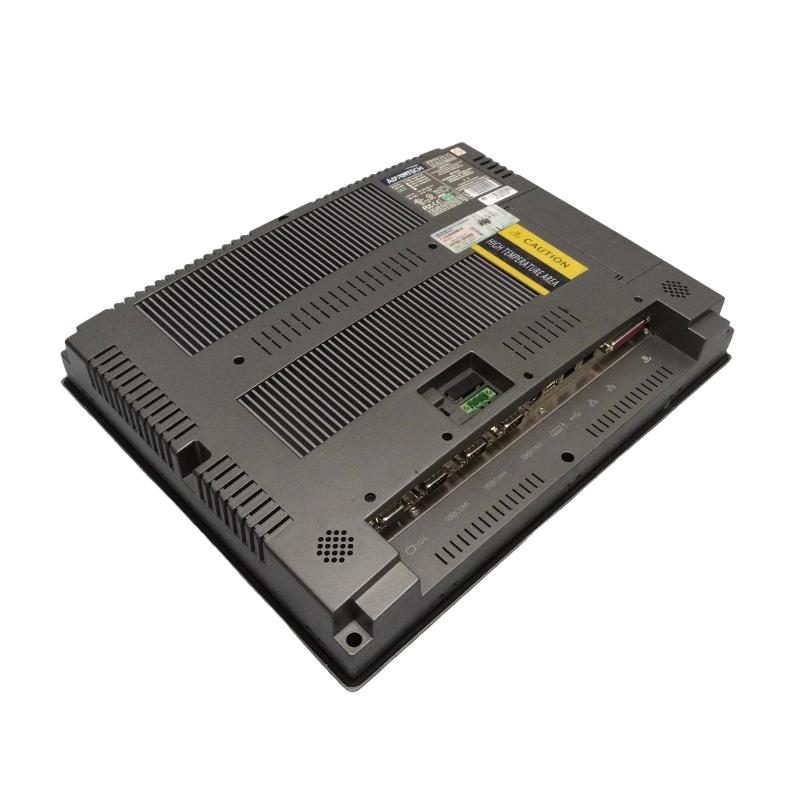

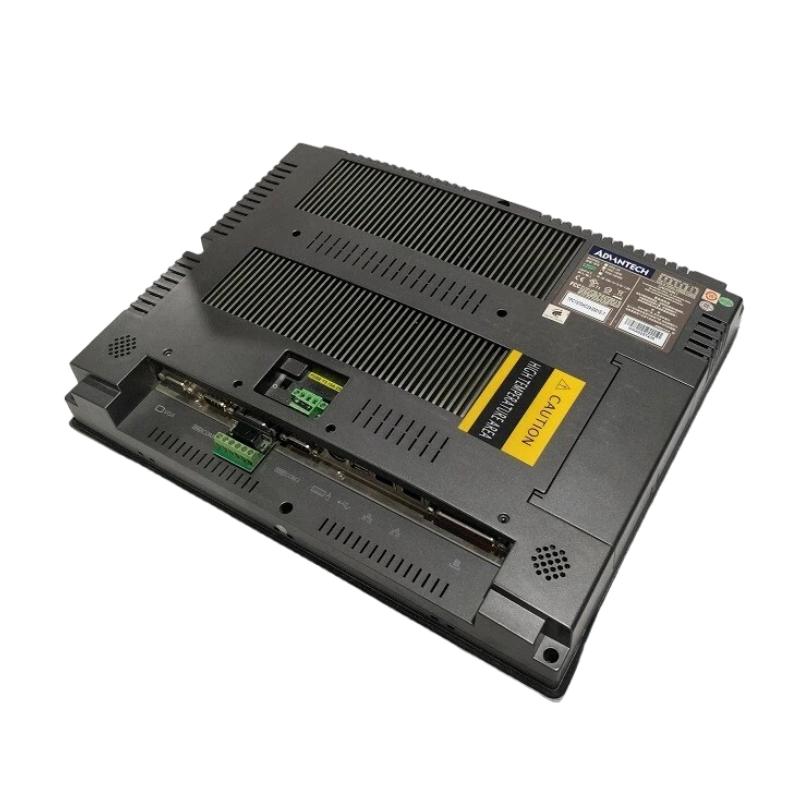

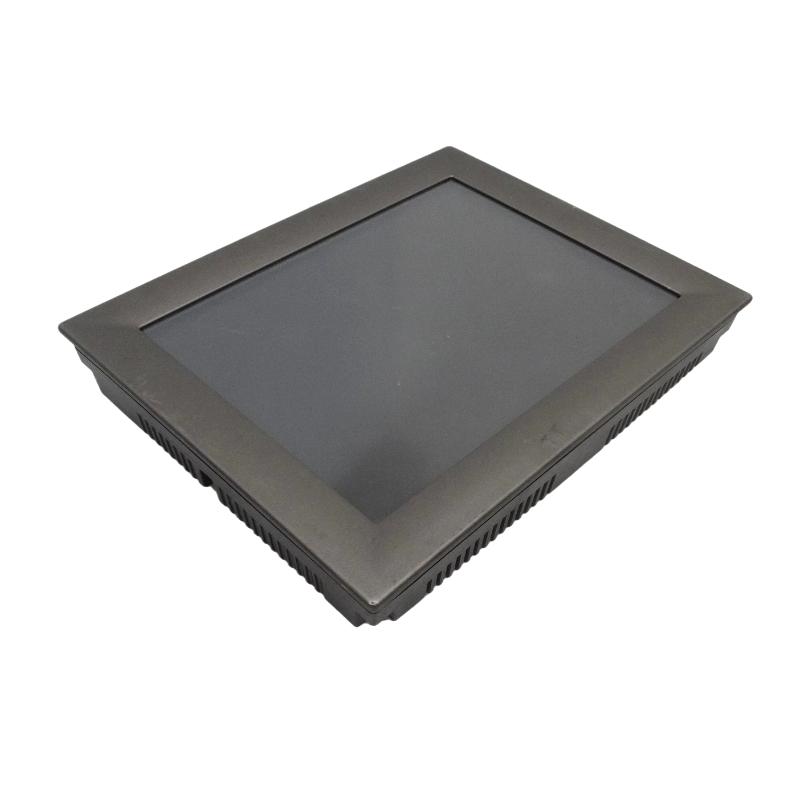

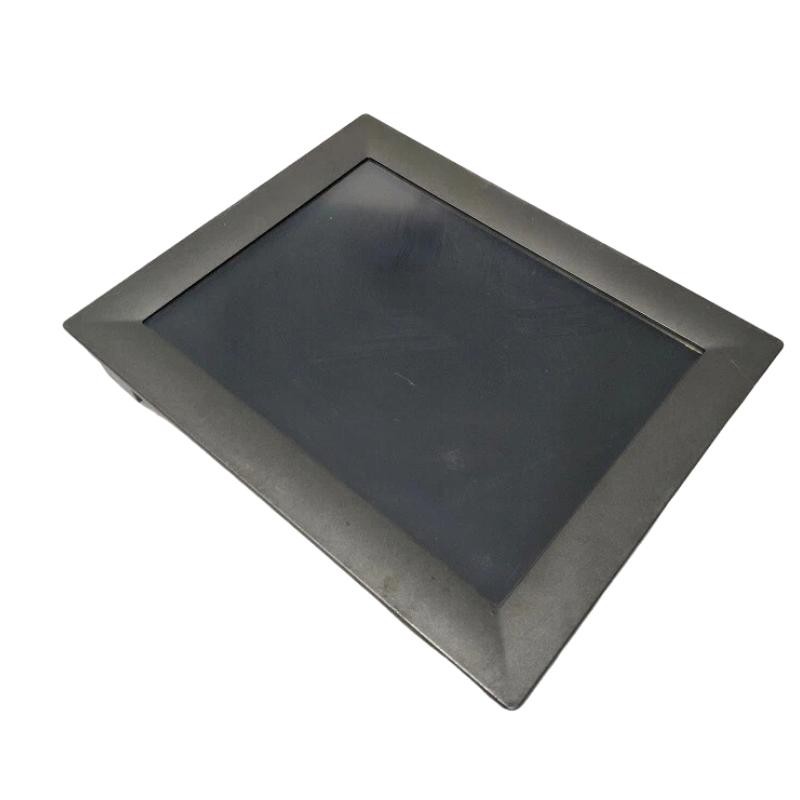

The ABB TPC-1570H (3BHE031734R1111) is an industrial touch panel controller designed for real-time visualization and operator interface in ABB automation systems. It enables efficient process monitoring and control for complex machinery and industrial operations.
General Information
Brand: ABB
Country of Origin: Sweden
Model Number: TPC-1570H / 3BHE031734R1111
Product Type: Touch Panel Controller / HMI
Application: Operator interface for process control, monitoring, and system management
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: Approx. 25 W
Protection: Over-voltage and reverse-polarity protection
Communication & Interface
Display Type: TFT color touchscreen
Resolution: 1024 × 768 pixels
Interface Ports: Ethernet, RS-232/RS-485, USB, and optional fieldbus modules
Connectivity: Supports communication with ABB PLCs and I/O modules for real-time operation
Environmental
Operating Temperature: 0 to +50 °C
Storage Temperature: −20 to +60 °C
Humidity: 10–90% RH, non-condensing
Mounting: Panel-mounted in industrial control cabinets
Dimensions & Weight
Dimensions (L × W × H): 383 × 307 × 64.5 mm
Weight: 5 kg
