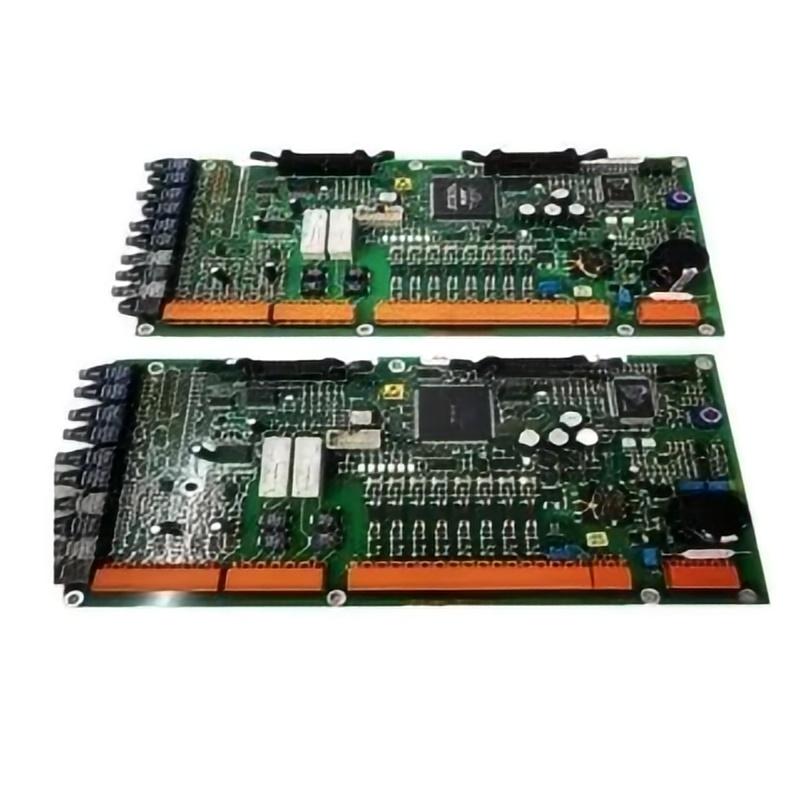

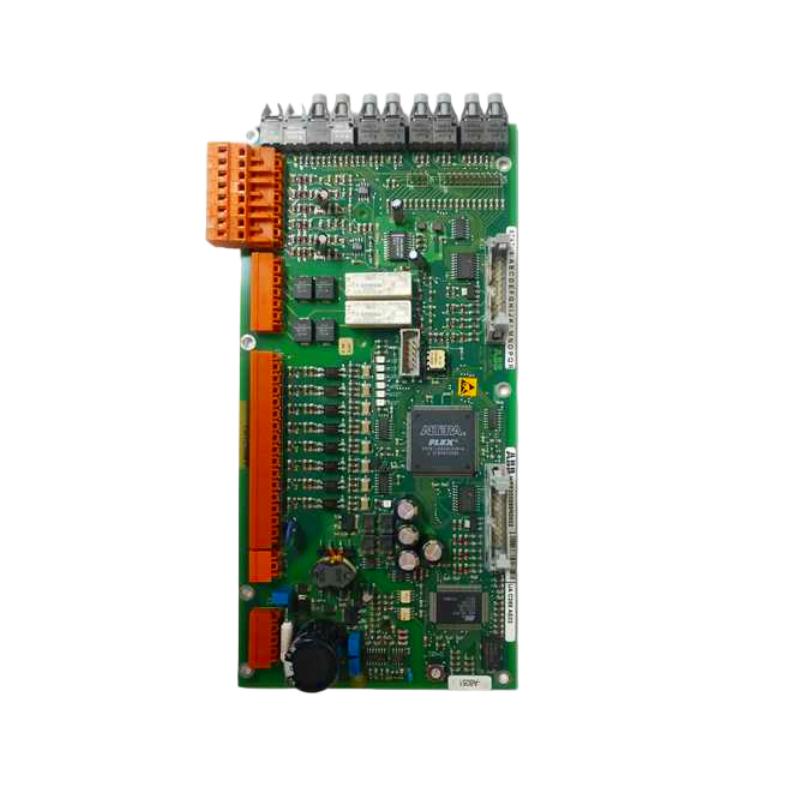

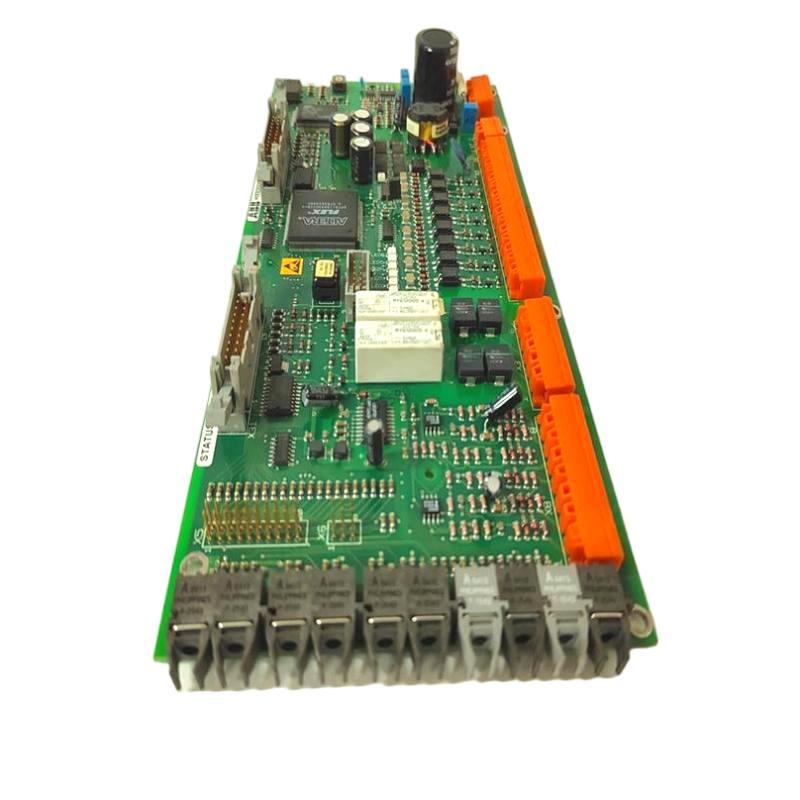

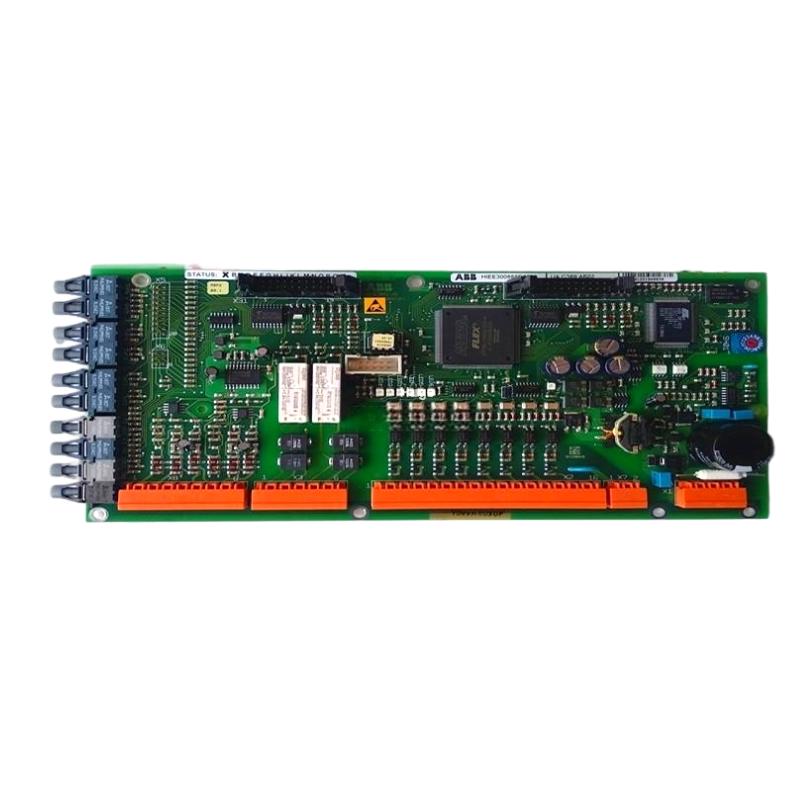

ABB 3BUS212310-001 | Slice Drive Module Quality Assurance

Overview

The ABB 3BUS212310-001 is a slice drive module designed for ABB industrial automation and motion control systems. It provides precise drive control and stable power delivery for motor and actuator operations. This module ensures efficient performance, smooth motion response, and high system reliability in process and manufacturing environments.

General Information

Part Number: 3BUS212310-001

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: Slice Drive Series

Type: Drive Control Module

Mounting: Rack-mounted or cabinet-installed

Function: Controls and regulates motor drives and field devices within ABB control systems

Power Specifications

Supply Voltage: 24 V DC nominal

Power Output: 5 V DC and control-level drive signals

Current Rating: Up to 3 A

Power Consumption: ≤ 30 W typical

Protection: Overcurrent, short-circuit, and reverse polarity protection

Indicators: LEDs for power and drive status

Communication & Interface

System Connection: Integrated backplane connector for drive and I/O communication

Interface Type: Internal control bus interface

Diagnostics: LED indicators for status, fault, and communication monitoring

Compatibility: Designed for ABB drive and motion control systems

Control Features: Supports precise drive control, feedback monitoring, and fault reset functions

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for use in enclosed panels)

Cooling: Natural convection

Dimensions & Weight

Dimensions (L × W × H): 120  x 200 x 60 mm

Weight: 1.88 kg

Brand-new originals, stock ready, professional customer support, get a quote instantly.
