Overview

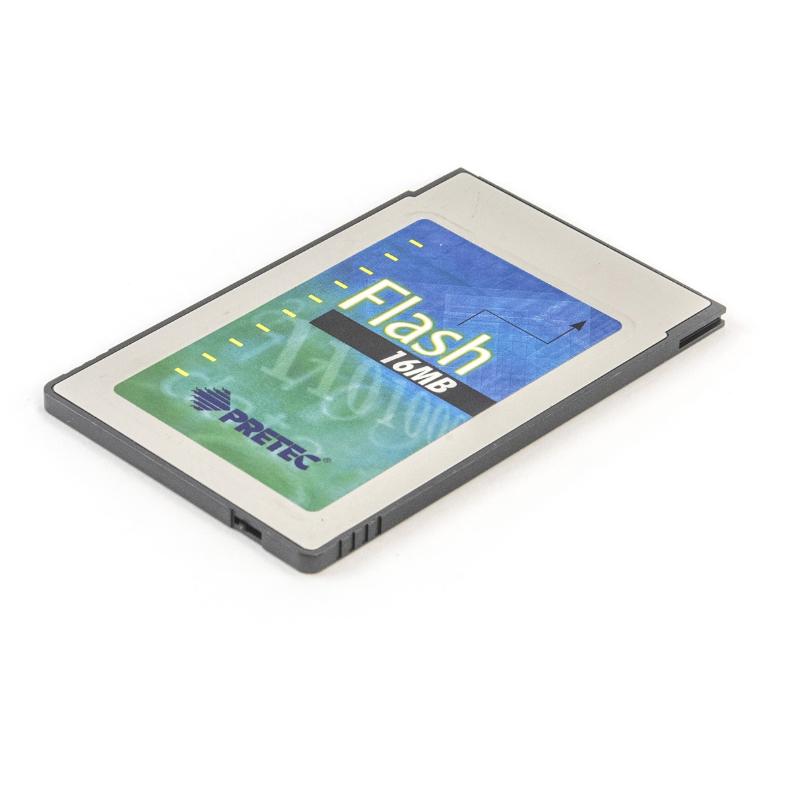

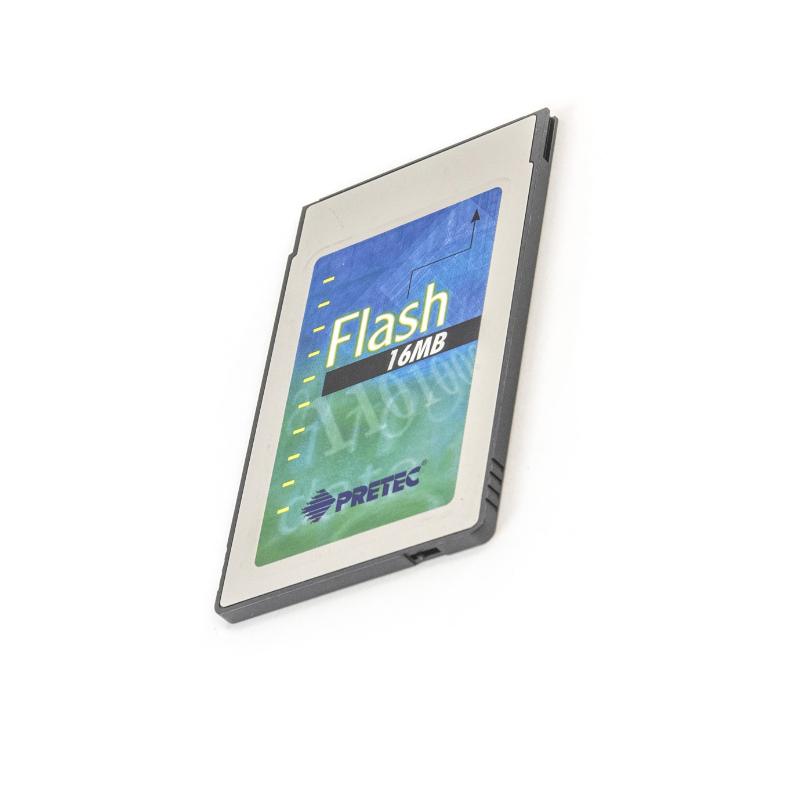

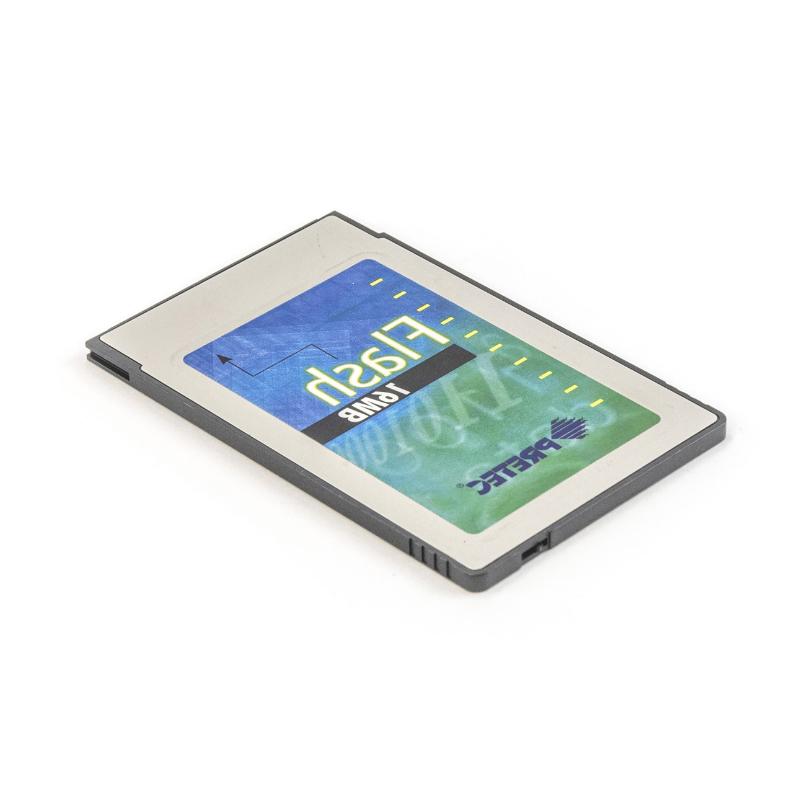

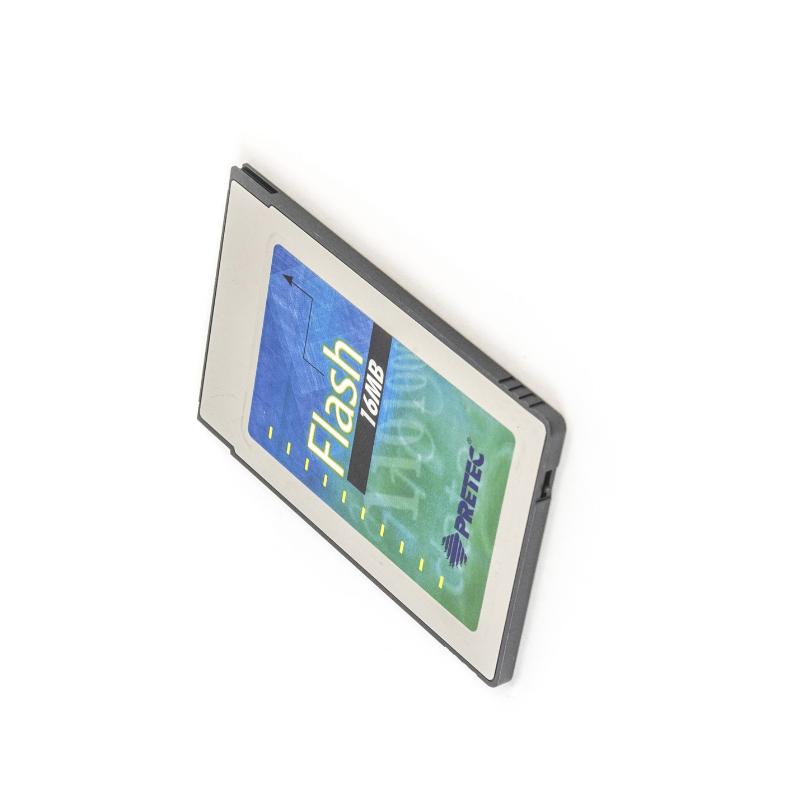

The ABB 3BSC630036R5 is a flash memory card designed for data storage and program backup within ABB control and automation systems. It ensures fast data access, secure file retention, and reliable performance in industrial environments where system stability and data integrity are essential.
General Information
Part Number: 3BSC630036R5
Manufacturer: ABB
Brand / Country of Origin: ABB / Sweden
Series: Control System Accessories
Type: Flash Memory Card
Function: Stores firmware, configuration data, and system backups
Mounting: Plug-in type for compatible ABB controllers and modules
Power Specifications
Supply Voltage: 3.3 V DC nominal
Power Consumption: < 1 W
Data Retention: ≥ 10 years typical
Read/Write Cycles: Up to 100,000 cycles
Protection: Built-in data integrity and power-failure protection
Communication & Interface
Interface Type: Standard card interface for ABB system slots
Compatibility: Used in ABB AC 800M and related control systems
Access Speed: High-speed flash memory read/write capability
Diagnostics: LED or controller-based status monitoring
Environmental
Operating Temperature: −25 to +70 °C
Storage Temperature: −40 to +85 °C
Humidity: ≤ 95% RH, non-condensing
Protection Rating: IP20 (when installed in enclosure)
Cooling: No active cooling required
Dimensions & Weight
Dimensions (L × W × H): 81 × 7.2 × 58.5 mm
Weight: 0.01 kg
