Overview

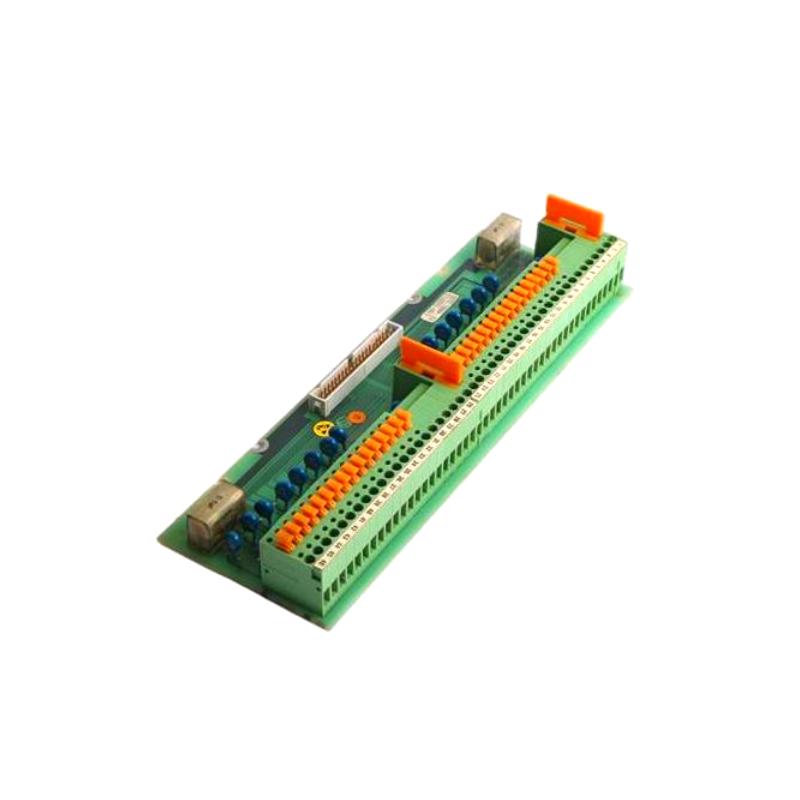

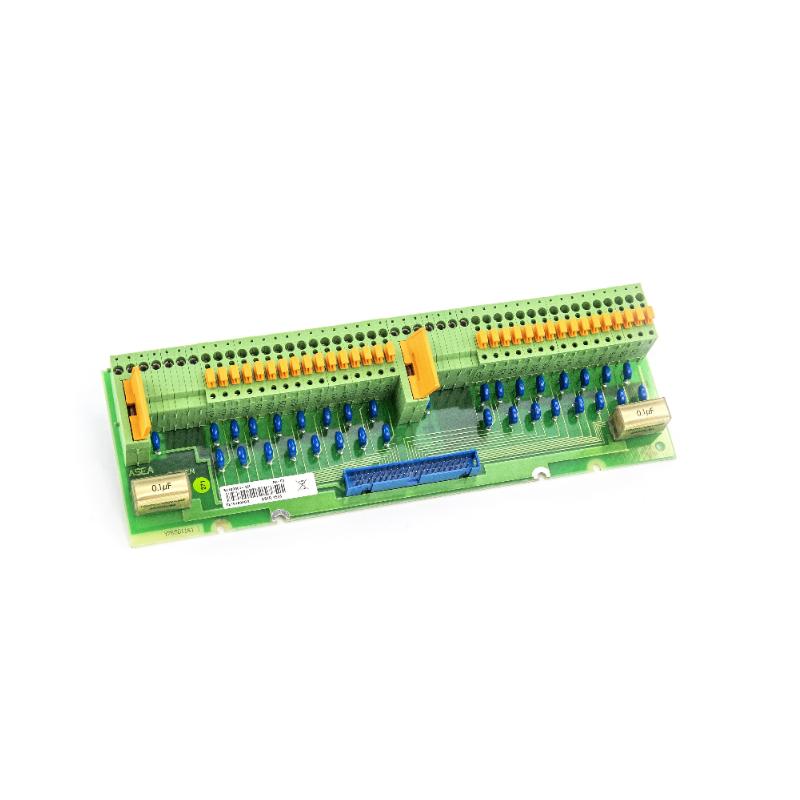

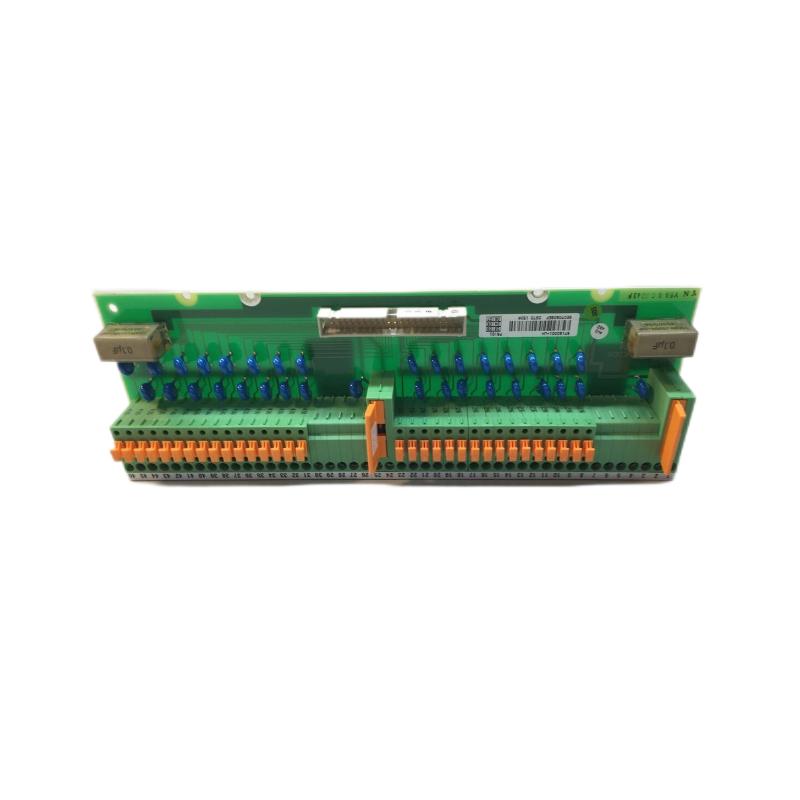

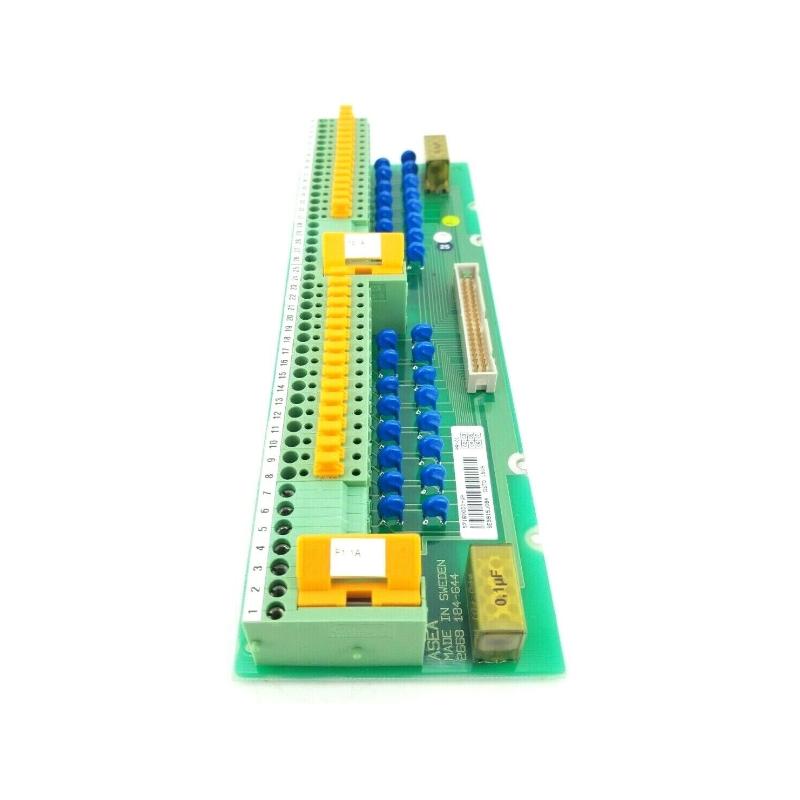

The ABB DSTD150A 57160001-UH is a digital signal terminal module designed for ABB automation and control systems. It provides reliable signal interfacing for digital inputs and outputs, ensuring accurate data transmission and stable system operation in industrial environments.
General Information
Part Number: 57160001-UH
Manufacturer: ABB
Brand / Country of Origin: ABB / Sweden
Series: DSTD (Digital Signal Terminal)
Type: Digital Signal Terminal Module
Mounting: Rack or panel installation
Function: Interfaces digital signals between field devices and control modules
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: ≤ 5 W
Protection: Overvoltage and short-circuit protection
Indicators: LEDs for power and signal status
Communication & Interface
Interface Type: Digital input/output terminals
System Connection: Connects to ABB Advant or Master I/O backplane
Diagnostics: LED indicators for operational status and fault detection
Compatibility: Compatible with ABB DSTD series and Advant/Master I/O systems
Reset Features: Supports system-level resets
Environmental
Operating Temperature: −25 to +70 °C
Storage Temperature: −40 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Cooling: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 255 × 25 × 90 mm
Weight: Approx. 0.135 kg
