Overview

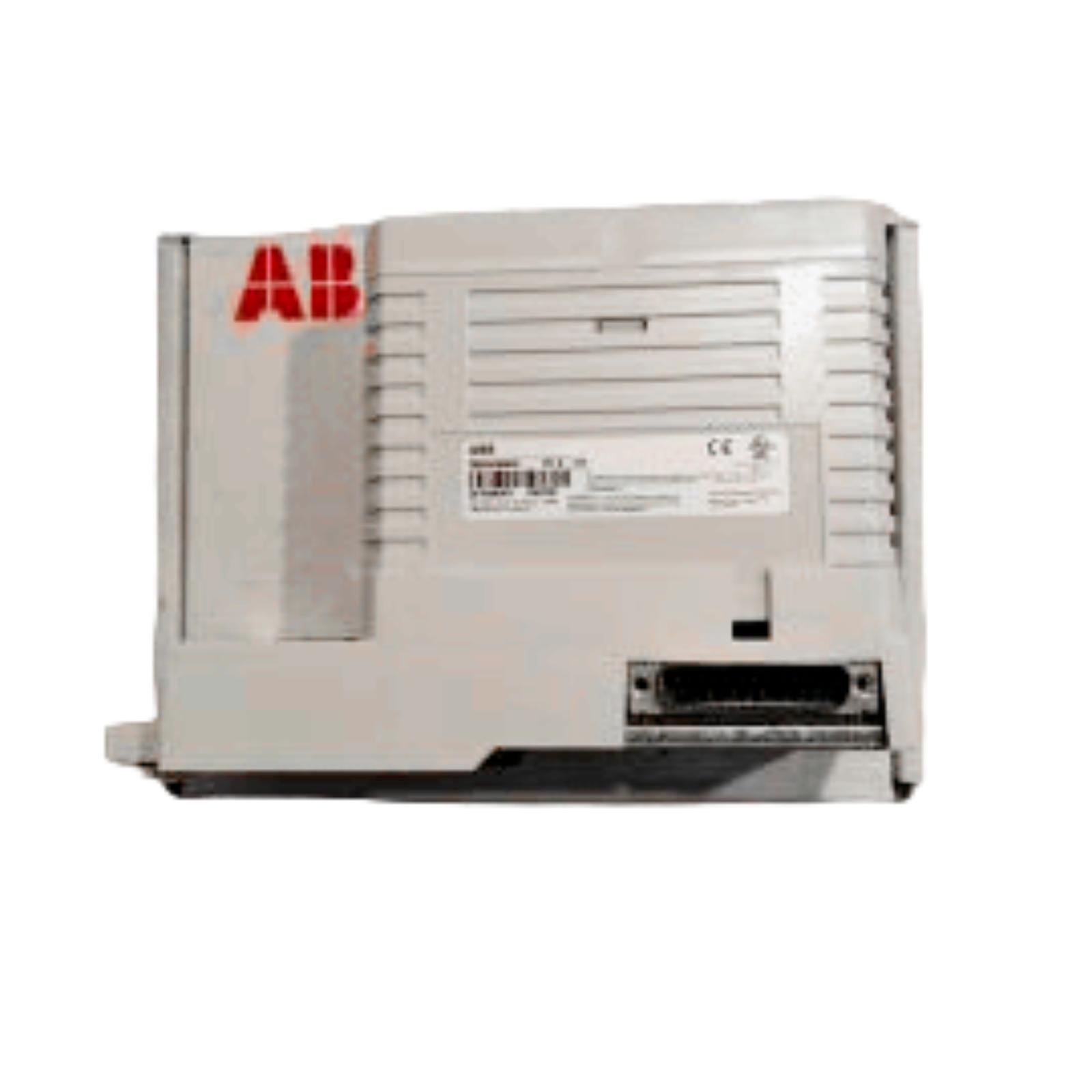

The ABB 3BSE034741R3122 is a controller module designed for integration within the ABB S800 I/O system. It manages logic execution, I/O communication, and system diagnostics in industrial automation setups.
General Information
Part Number: 3BSE034741R3122
Brand / Country of Origin: ABB / Sweden
Product Type: Controller Module
Series: S800 I/O
Power Specifications
Rated Supply Voltage: 24 V DC (provided via rack backplane)
Power Input Type: Isolated DC logic supply
Typical Power Consumption: Consistent with S800 controller modules
Communication & Interface
Interface Type: S800 backplane bus connection
Supported Functions: Logic execution, I/O coordination, system diagnostics
Compatibility: Fully compatible with ABB S800 racks and I/O termination units
Environmental
Operating Temperature: 0 °C to +55 °C
Storage Temperature: −40 °C to +70 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20
