Overview

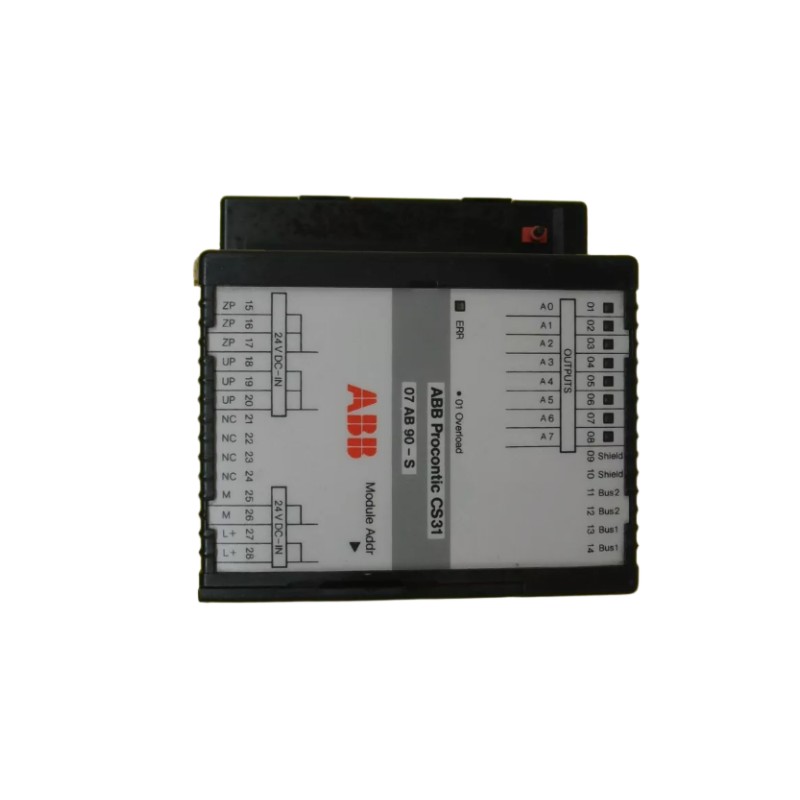

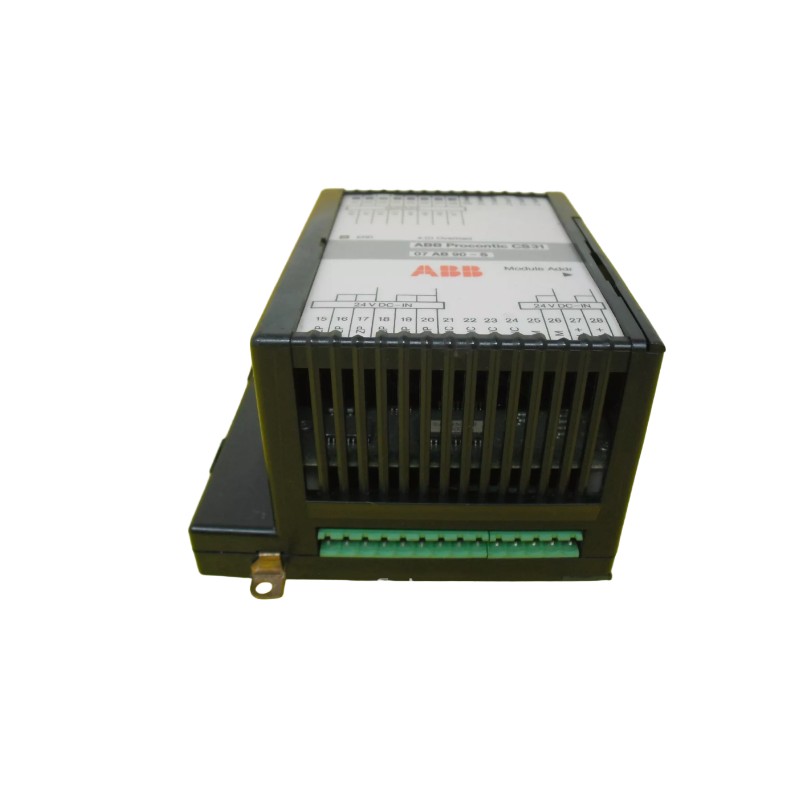

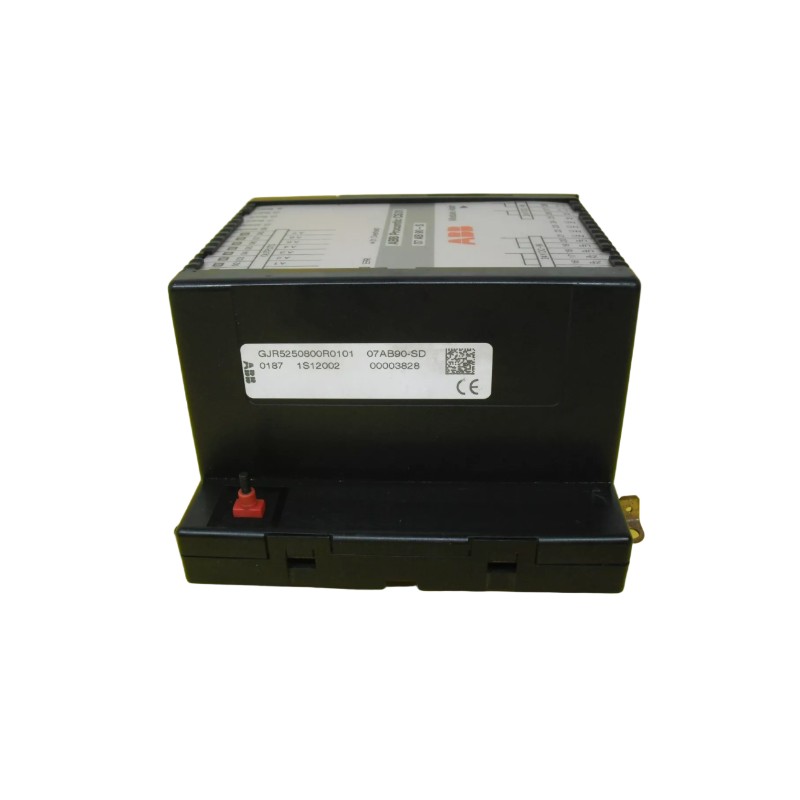

The ABB 07AB90‑SD (GJR5250800R0101) is a digital output module designed for integration in ABB’s Procontic CS31 automation line. It provides multiple relay or transistor outputs and supports reliable switching and monitoring of discrete field elements.
General Information
Part Number: GJR5250800R0101
Brand / Country of Origin: ABB / Sweden
Product Type: Digital Output Module
Series: Procontic CS31
Power Specifications
Supply Voltage: 24 V DC nominal
Output Type: 8 digital outputs (relay or transistor depending on configuration)
Load Capacity: Supports output loads up to 2 A per channel under typical conditions
Protection Features: Built‑in isolation and diagnostics to ensure signal integrity
Communication & Interface
Interface Type: Bus module connection for CS31 I/O rack system
Signal Connections: Digital output terminals across multiple channels
Diagnostics: Module supports fault detection on output channels and communicates status to the host controller
Compatibility: Compatible with CS31 remote I/O backplane and control modules
Environmental
Operating Temperature: ‑20 °C to +60 °C
Storage Temperature: ‑40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed within enclosure; requires adequate ventilation
Dimensions & Weight
Dimensions (L × W × H): 90 × 120 × 70 mm (approximately)
Weight: Approx. 0.75 kg
