Overview

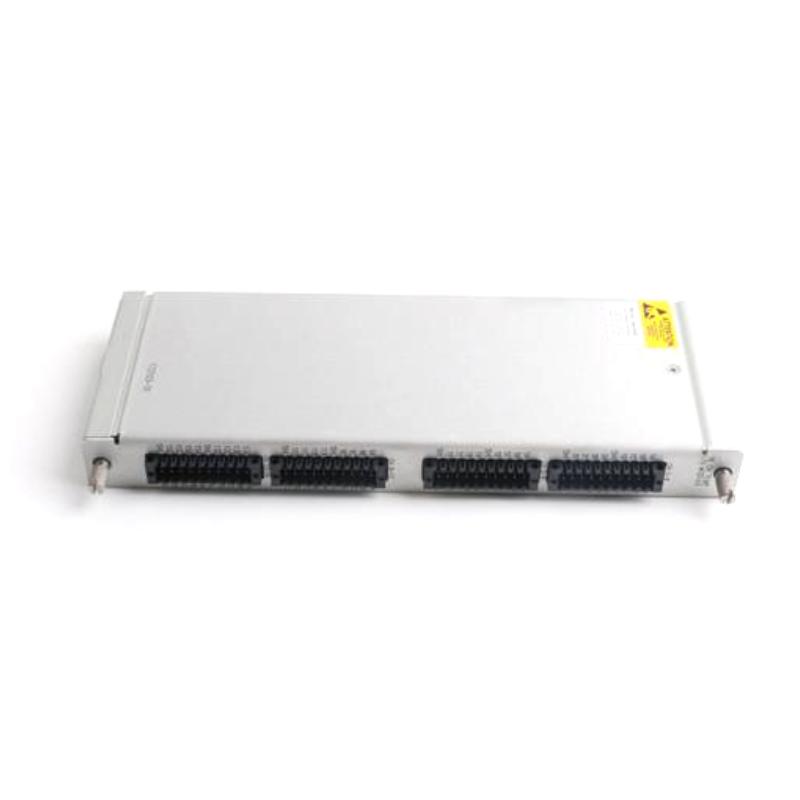

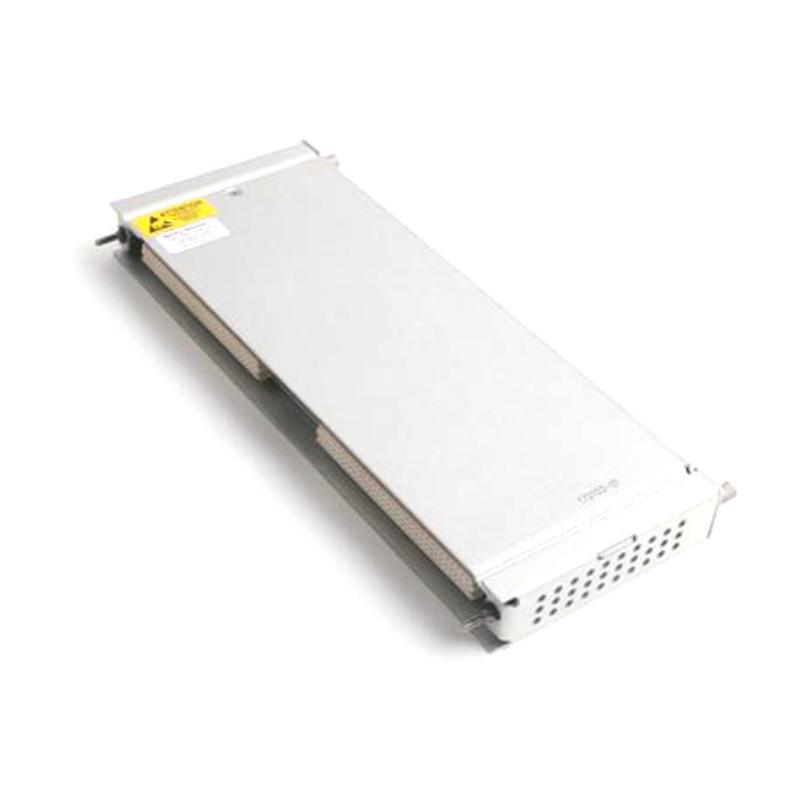

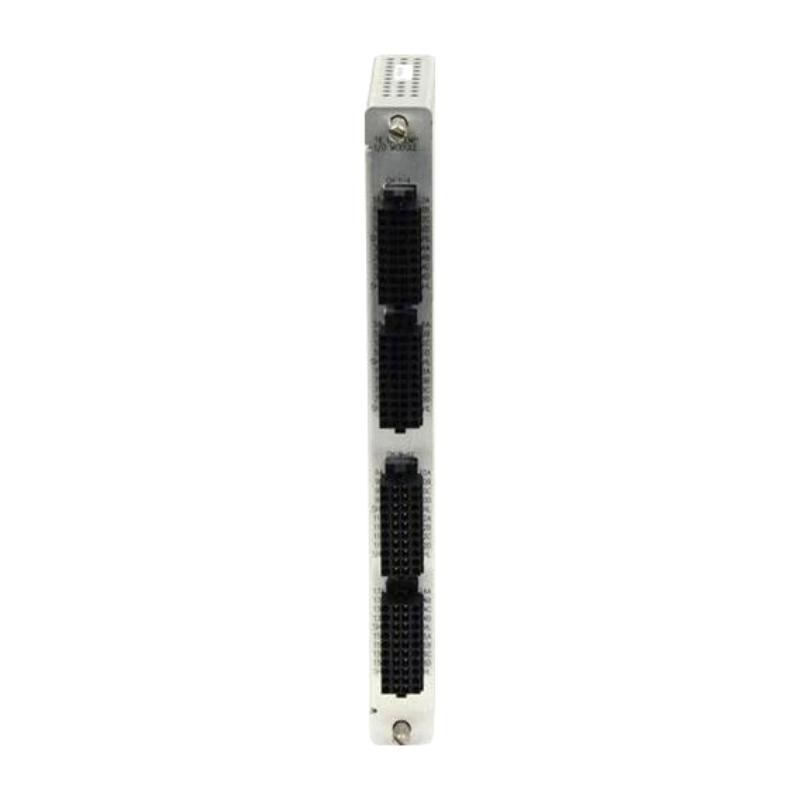

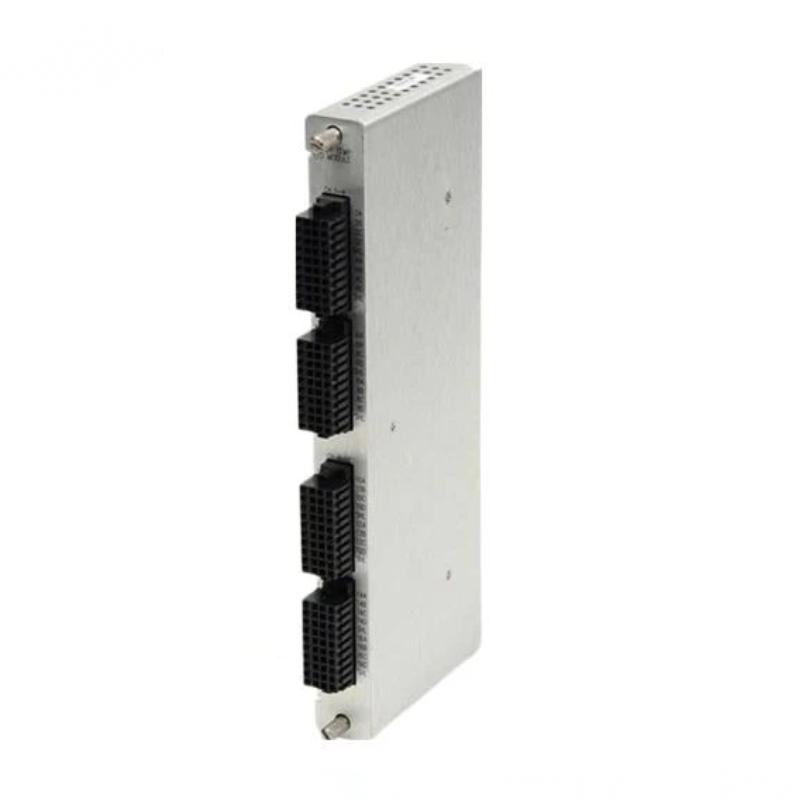

The Bently Nevada 3500/65 172103-01 is a vibration monitoring module used in industrial machinery protection systems. It provides precise measurement and analysis of vibration signals to detect early signs of mechanical faults, helping prevent equipment failures and maintain operational reliability.
General Information
Part Number: 172103-01
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500 Series
Type: Vibration Monitor Module
Mounting: Rack-mounted within 3500 series chassis
Function: Monitors and processes vibration data from sensors to protect rotating machinery
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: ≤ 5 W
Protection: Overvoltage and short-circuit protection
Indicators: LEDs for power and alarm status
Communication & Interface
Interface Type: Backplane connection for 3500 series chassis
System Connection: Integrates with 3500 series machinery protection system
Diagnostics: LED indicators for channel status, alarms, and faults
Compatibility: Compatible with 3500 series sensors and monitoring modules
Reset Features: Supports software and system-level reset
Environmental
Operating Temperature: −20 to +70 °C
Storage Temperature: −40 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (within enclosure)
Cooling: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 99.1 mm
Weight: Approx. 0.45 kg
