Overview

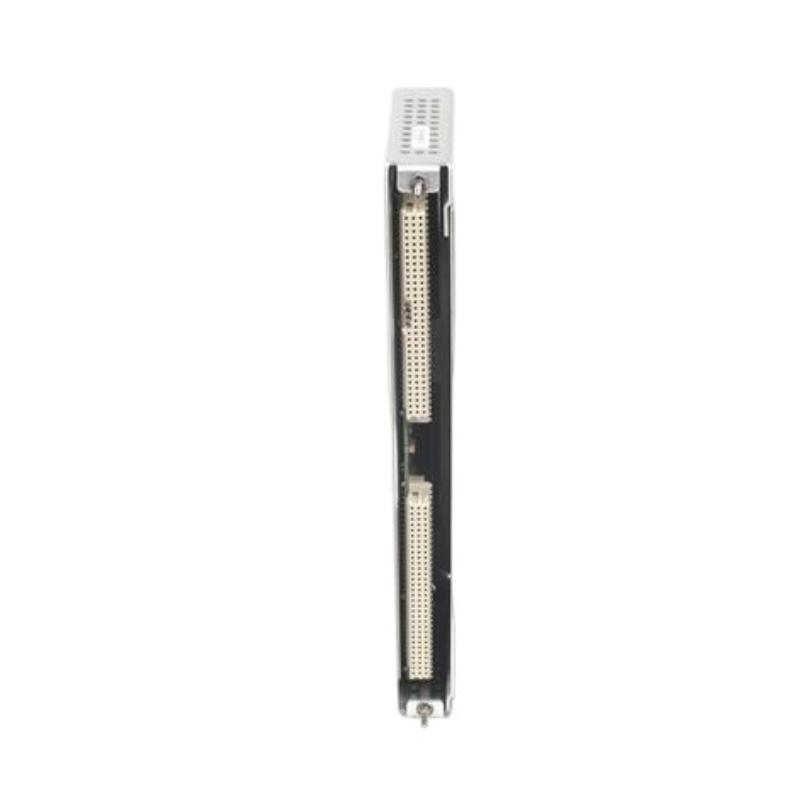

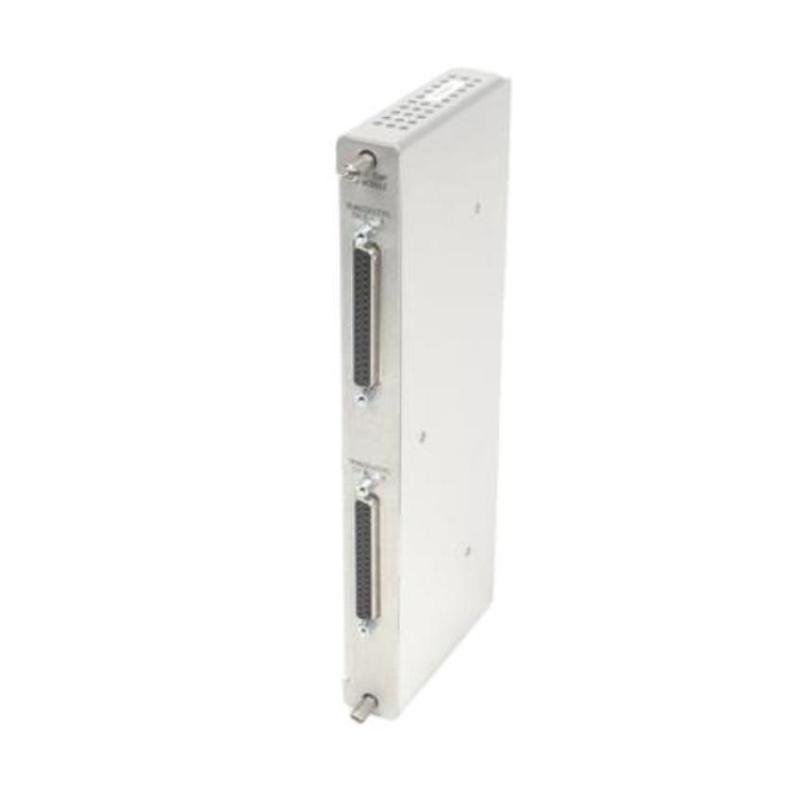

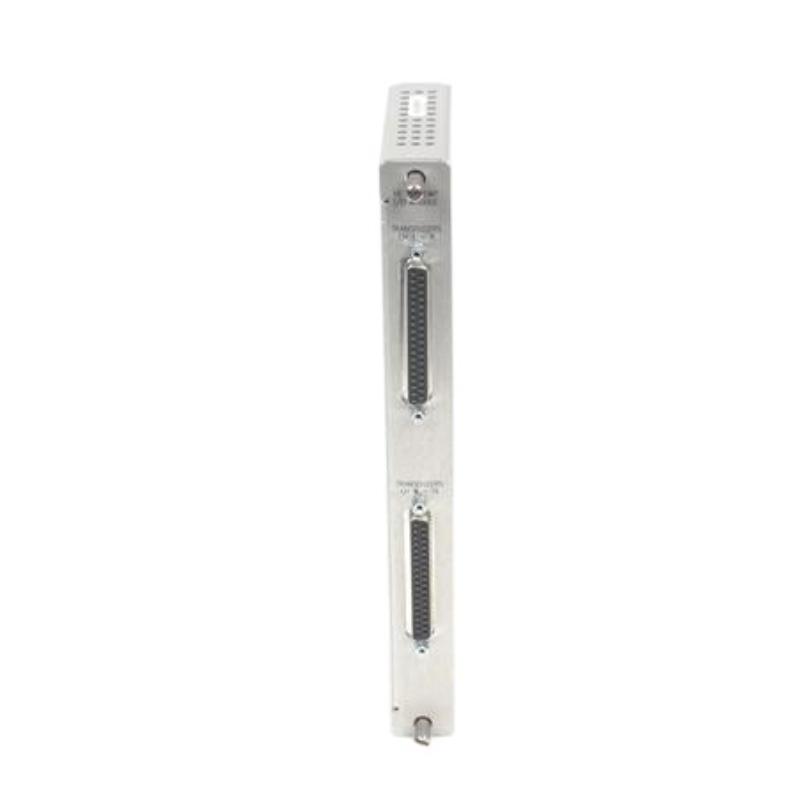

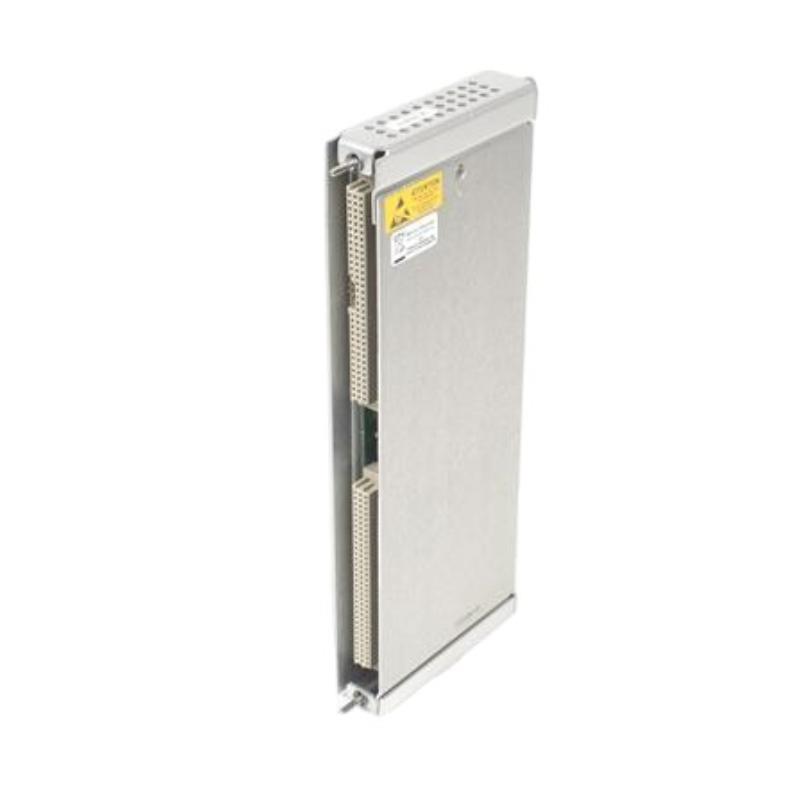

The Bently Nevada 3500/65 172109-01 is a vibration monitoring module designed for industrial machinery protection systems. It accurately measures and analyzes vibration signals to detect potential mechanical issues, helping prevent equipment damage and ensuring reliable operation.
General Information
Part Number: 172109-01
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500 Series
Type: Vibration Monitor Module
Mounting: Rack-mounted within 3500 series chassis
Function: Monitors vibration from sensors and provides alarms for machinery protection
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: ≤ 5 W
Protection: Overvoltage and short-circuit protection
Indicators: LEDs for power, channel status, and alarms
Communication & Interface
Interface Type: Backplane connection for 3500 series chassis
System Connection: Integrates with 3500 series machinery protection system
Diagnostics: LED indicators for operational and fault status
Compatibility: Compatible with 3500 series vibration sensors and modules
Reset Features: Supports software and system-level reset
Environmental
Operating Temperature: −20 to +70 °C
Storage Temperature: −40 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (within enclosure)
Cooling: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 99.1 mm
Weight: Approx. 0.45 kg
