Overview

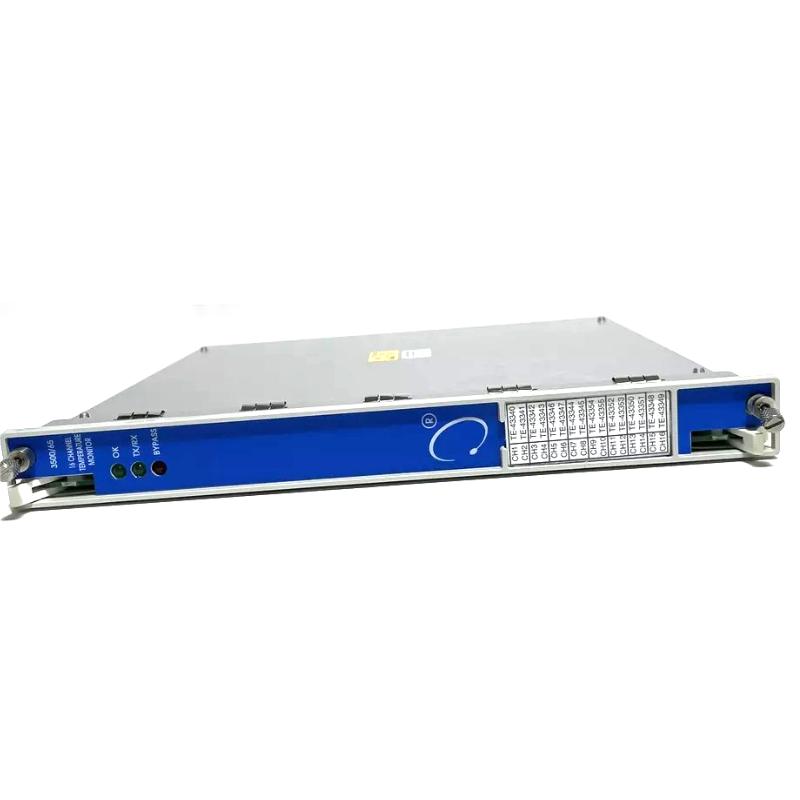

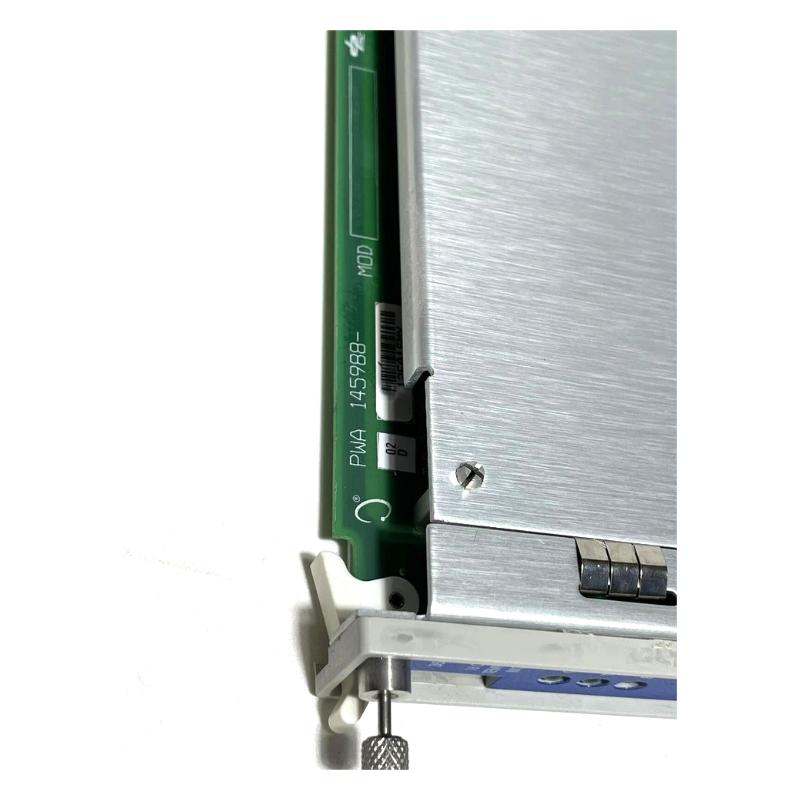

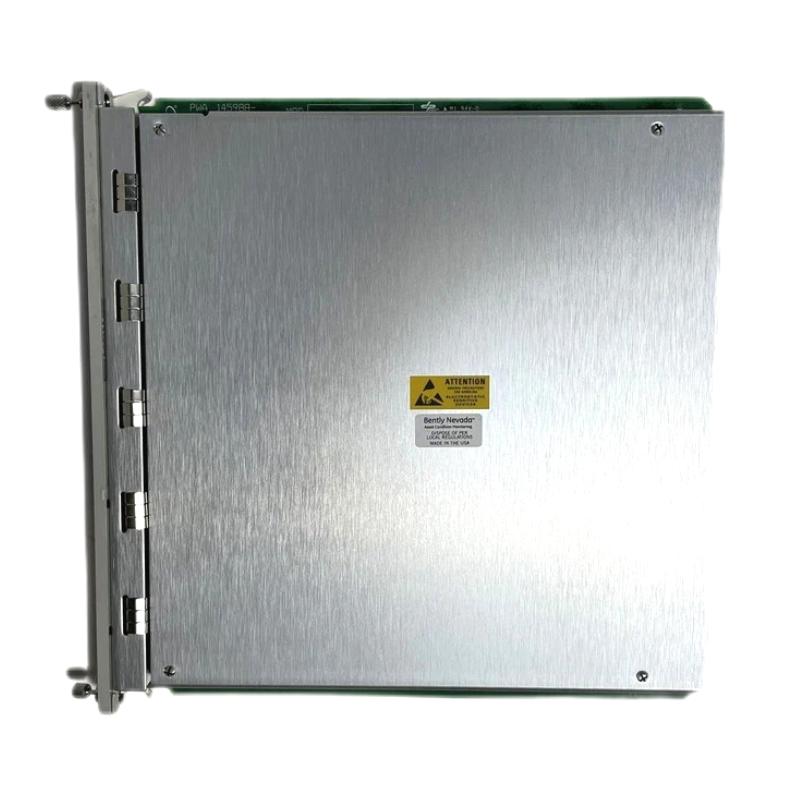

The Bently Nevada 3500/65 145988-02 is a 16-channel temperature monitoring module for industrial machinery protection. It supports RTD and isolated thermocouple inputs, monitoring critical temperature points and triggering alarms to prevent equipment damage.
General Information
Part Number: 145988-02
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500/65 Channel Monitor
Type: 16-Channel Temperature Monitor Module
Mounting: Rack-mounted in 3500/65 system chassis
Function: Monitors temperature channels, provides alarms, and system diagnostics
Power Specifications
Supply Voltage: 24 V DC via system backplane
Power Consumption: Approx. 3 W
Protection: Internal protection circuits for safe operation

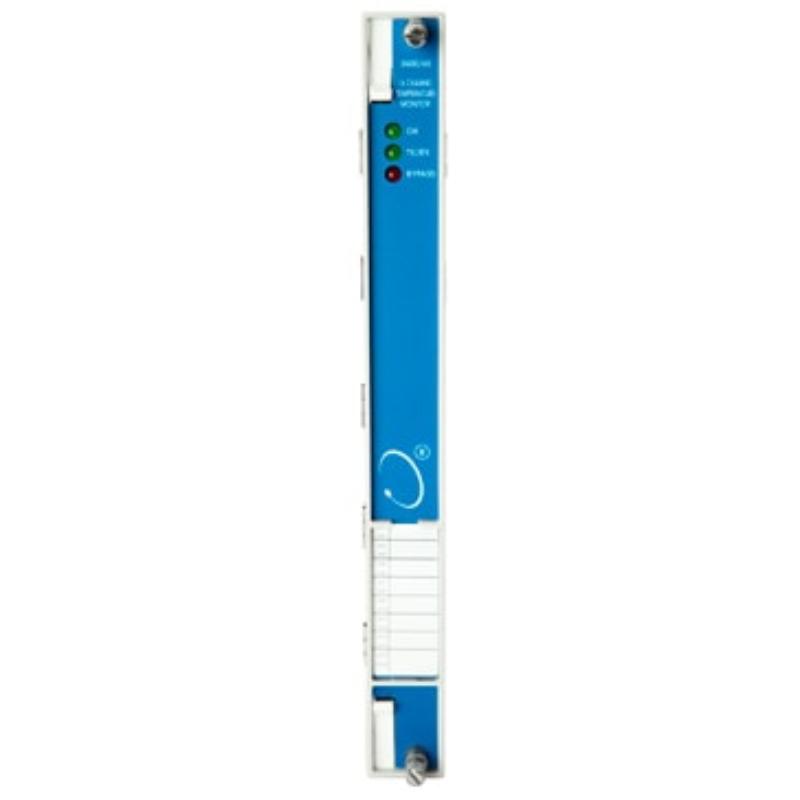

Indicators: LEDs for module status and alarms
Communication & Interface
Interface Type: Backplane connection for 3500/65 system
Input Channels: RTD and isolated thermocouples
Diagnostics: Provides operational and fault status via LEDs and system software
Compatibility: Fully compatible with 3500/65 system modules and accessories
Environmental
Operating Temperature: −20 to +70 °C
Storage Temperature: −40 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Cooling: Passive
Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 241.8 mm
Weight: 0.91 kg
