Overview

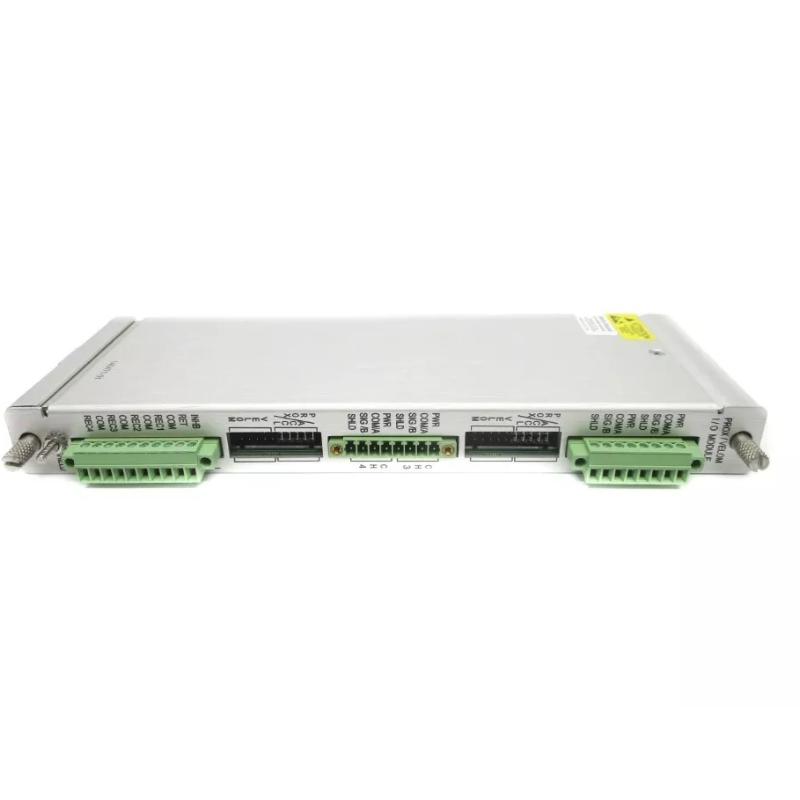

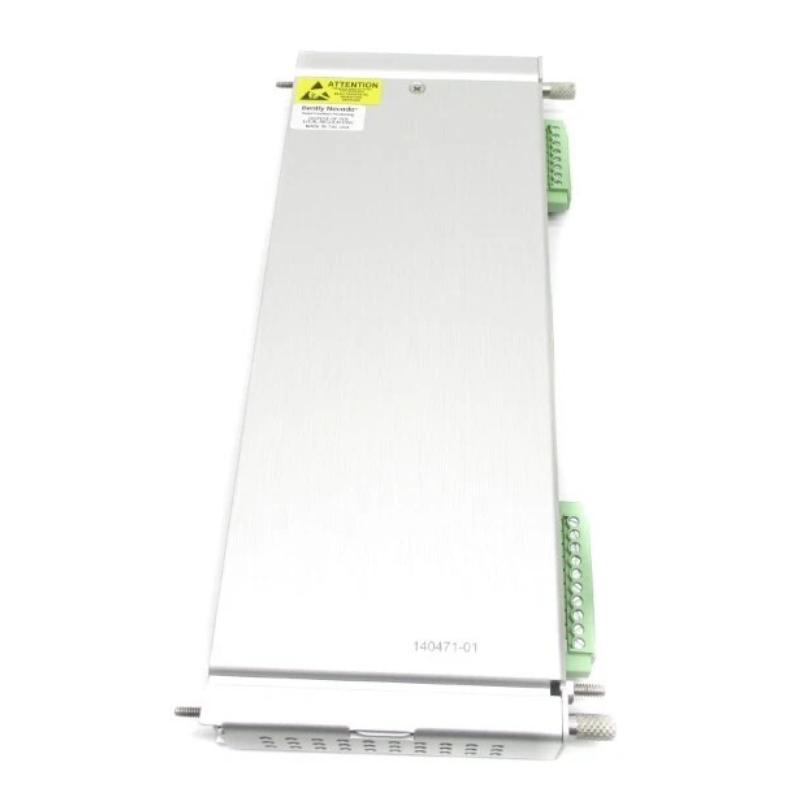

The Bently Nevada 3500/70 140471-01 is an I/O module for proximity and velocity sensors. It collects critical vibration and position data for machinery protection systems, enabling real-time monitoring and alarm functions.
General Information
Part Number: 140471-01
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500/70
Type: Prox/Velom I/O Module
Mounting: Rack-mounted in 3500 system chassis
Function: Interfaces Proximitor/Velomitor sensors to the monitoring system
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: ~10 W
Protection: Overload and short-circuit protection
Indicators: LEDs for module status and alarms
Communication & Interface
Interface Type: 3500/70 system backplane
Inputs: Proximity or velocity sensors
Diagnostics: LED indicators; monitored by central system
Compatibility: Compatible with 3500/70 rack system
Environmental
Operating Temperature: −20 to +70 °C
Storage Temperature: −40 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Cooling: Passive
Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 99.1 mm
Weight: 0.20 kg
