Overview

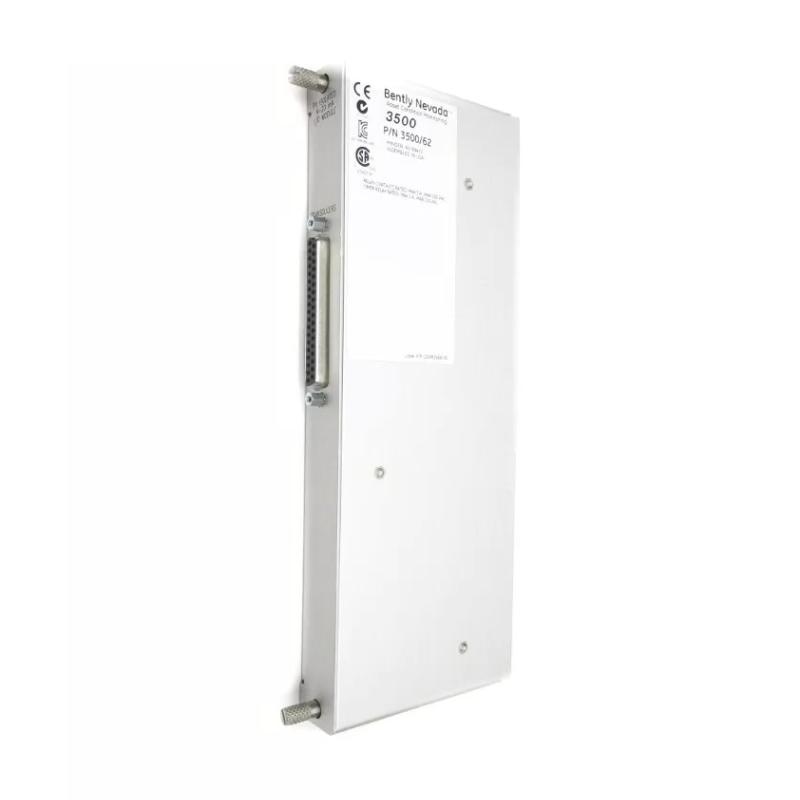

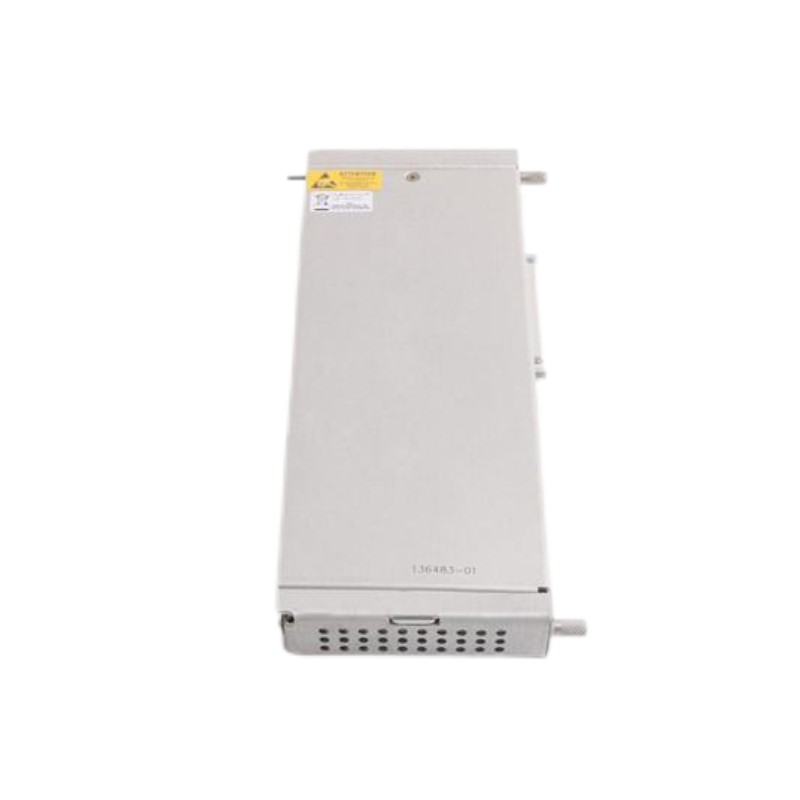

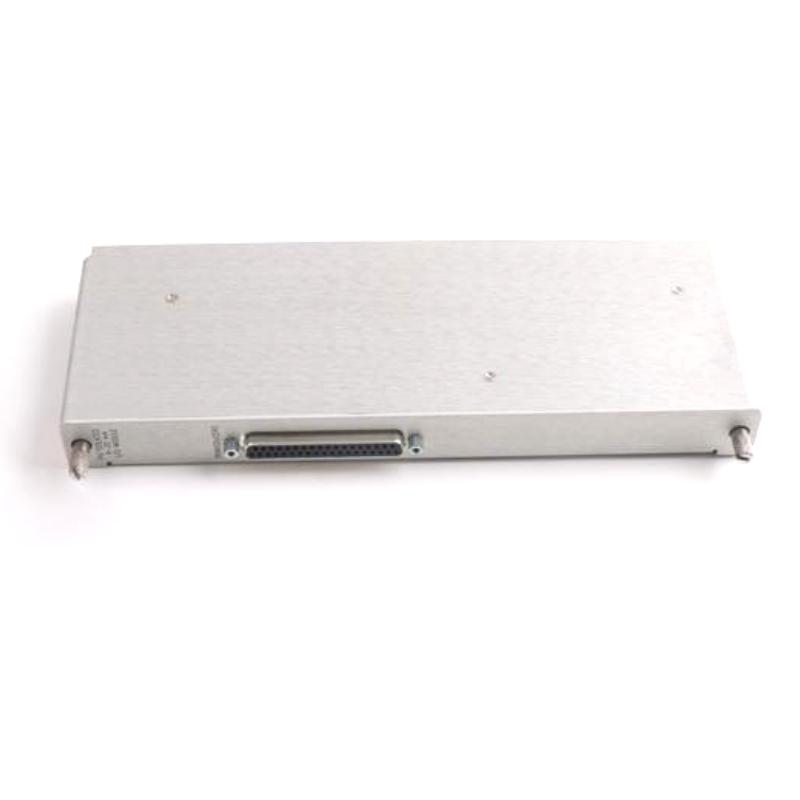

The Bently Nevada 3500/62 136499-01 is an input/output module designed for use within the 3500/62 Process Variable Monitor system. It accepts analog inputs (such as −10 V to +10 V) and supports external termination wiring for installation flexibility.
General Information
Part Number: 136499-01
Brand / Country of Origin: Bently Nevada / USA
Product Type: I/O Module with External Terminations
Series: 3500/62 Process Variable Monitor
Power Specifications
Supply Voltage: Module receives power through the rack backplane
Input Signal Types: −10 V to +10 V analog inputs; also supports other configurations in the series
Typical Power Consumption: Approximately 7 W (for the complete monitor system)
Isolation: Provides isolation for analog inputs and fault-detection features
Communication & Interface
Interface Type: Plug-into the 3500/62 backplane module slot
I/O Termination: External field-wiring terminations provided via accessory block
Diagnostics: Module reports channel status and faults to the monitor system
Compatibility: Compatible with 3500/62 termination units and signaling architecture
Environmental
Operating Temperature: 0 °C to +65 °C with external terminations
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 when installed inside a panel or enclosure
Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 99.1 mm
Weight: Approx. 0.20 kg
