Overview

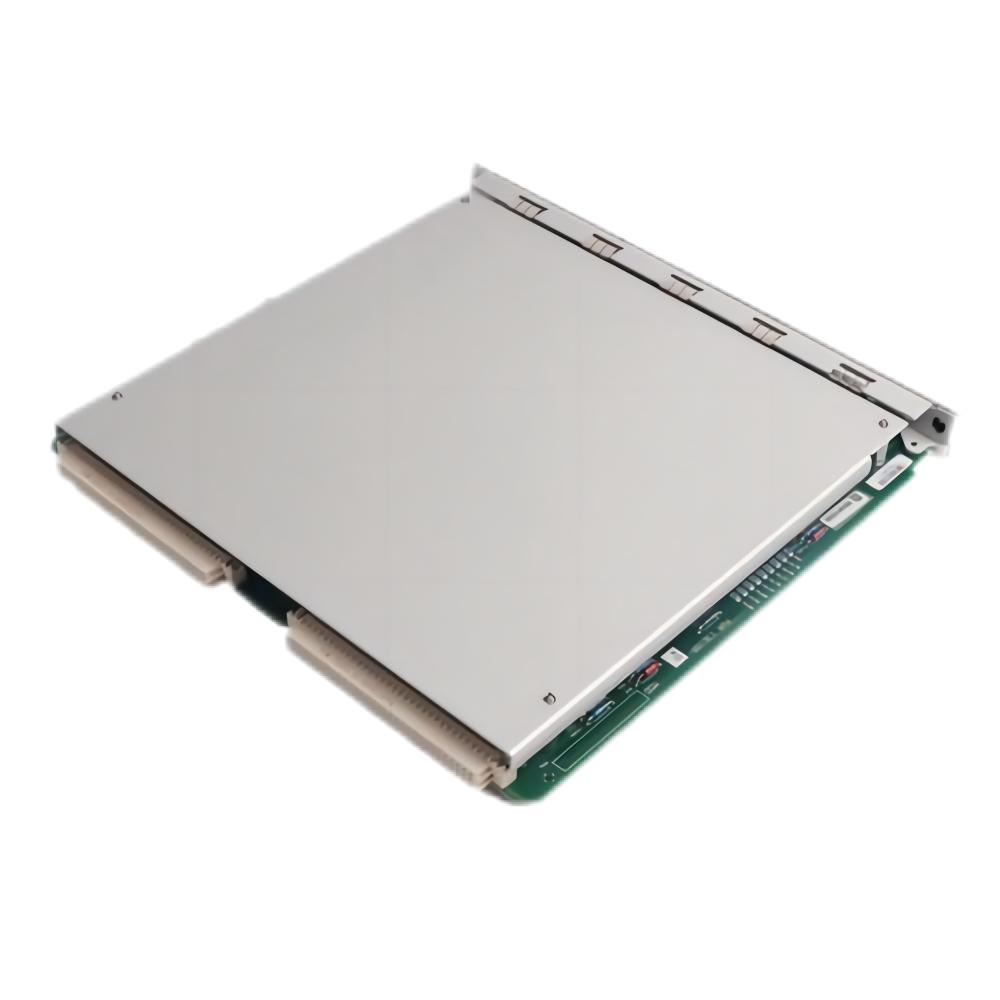

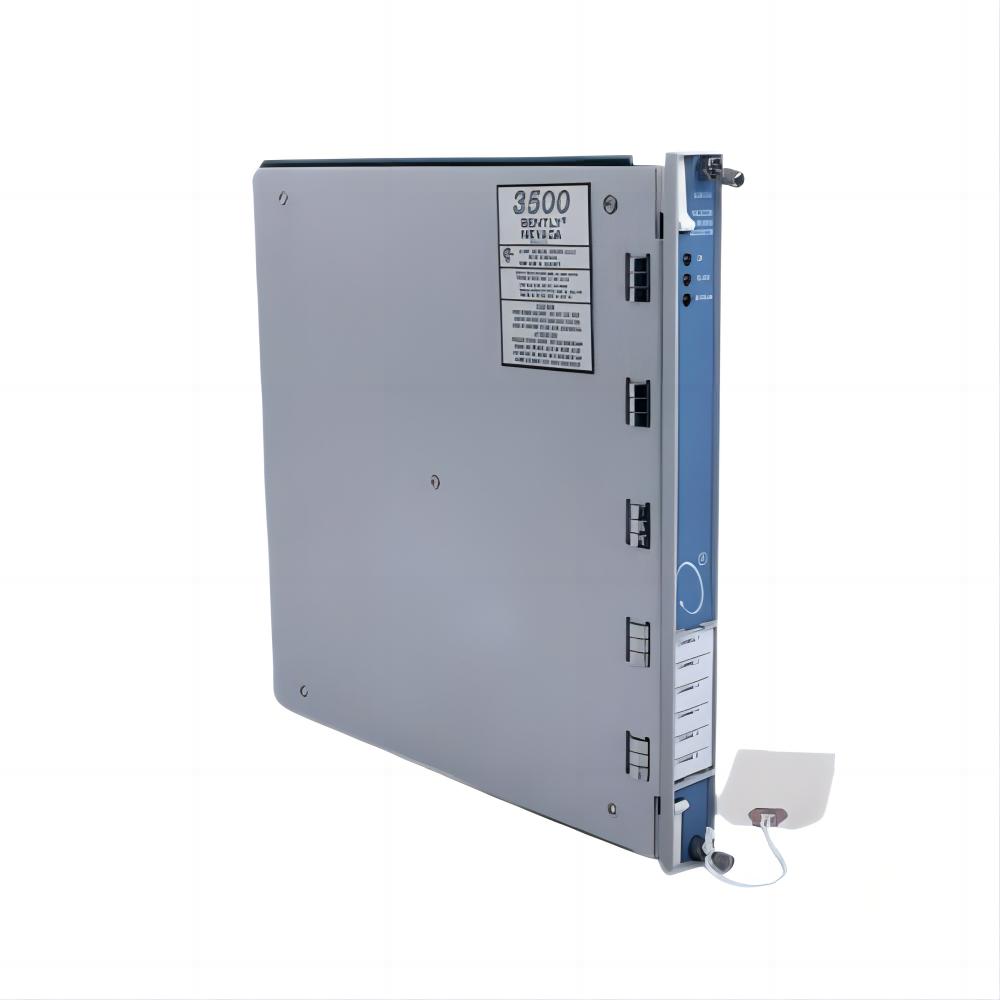

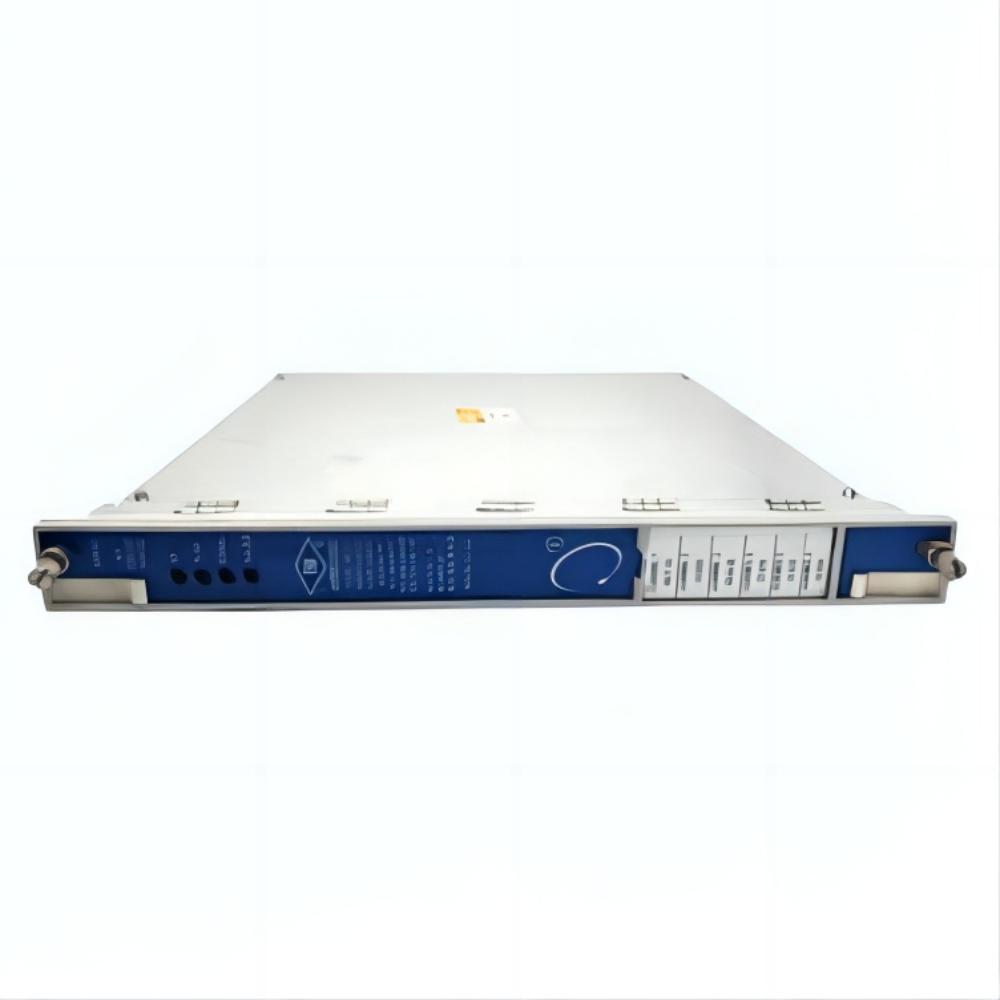

The 3500/62 163179-03 is a high-precision process variable monitor designed to continuously track critical parameters like pressure, flow, temperature, and level within industrial systems. It evaluates analog signals against configurable alarm setpoints and supports triple-module redundant (TMR) configurations for maximum reliability.
General Information
Part Number: 163179-03
Brand / Country of Origin: Bently Nevada / USA
Product Type: Process Variable Monitor (6-channel)
Series: 3500/62
Power Specifications
Typical Supply Voltage: Derived via module backplane bias
Typical Power Consumption: Approximately 7.0 W in standard configuration
Input Signal Types: ±10 V DC or 4-20 mA ranges; supports isolated I/O versions with external barriers
Communication & Interface
Interface Type: Rack-mounted within 3500 series chassis via backplane bus
Input Channels: Six synchronized analog input channels
Diagnostics: Provides OK, TX/RX, and Bypass LED indicators; supports status reporting and fault isolation
Environmental
Operating Temperature Range: –30 °C to +65 °C (with I/O modules) or 0 °C to +65 °C (internal barrier I/O)
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 when installed inside a suitable enclosure
Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 241.8 mm
Weight: Approx. 0.82 kg
