Overview

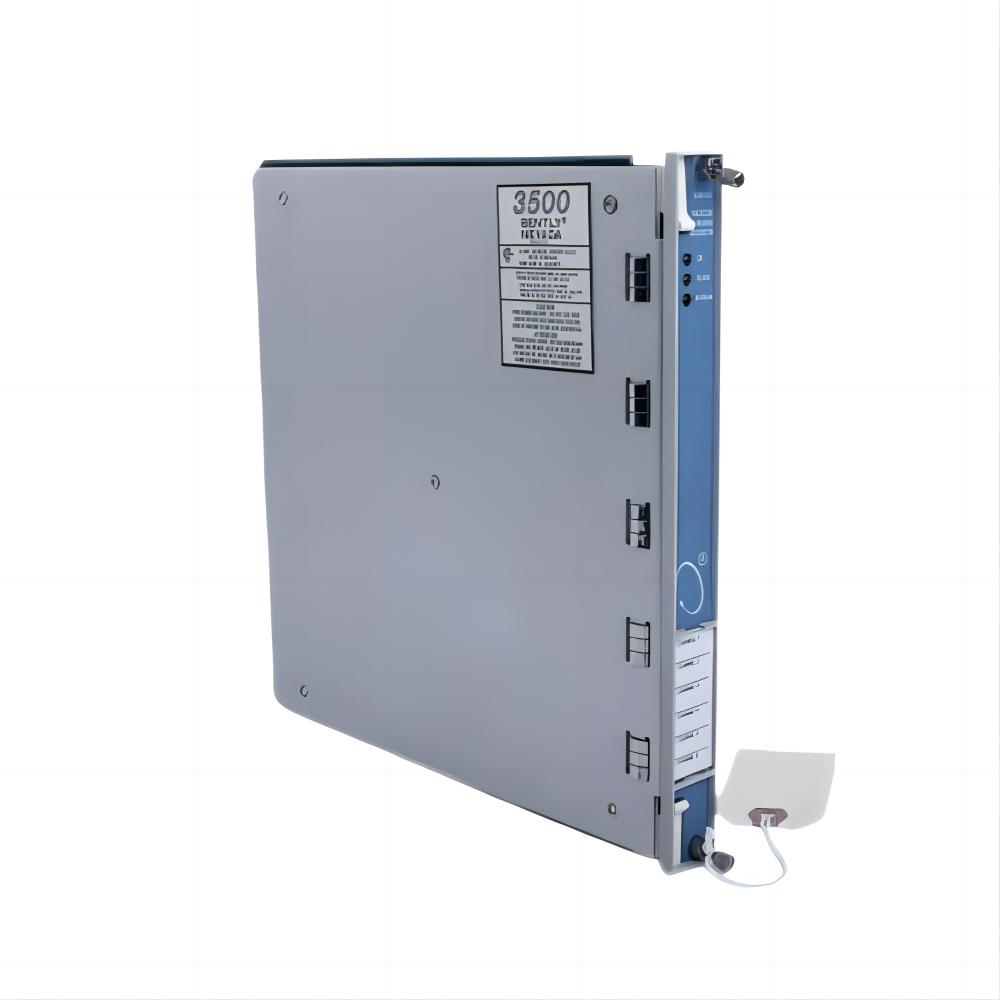

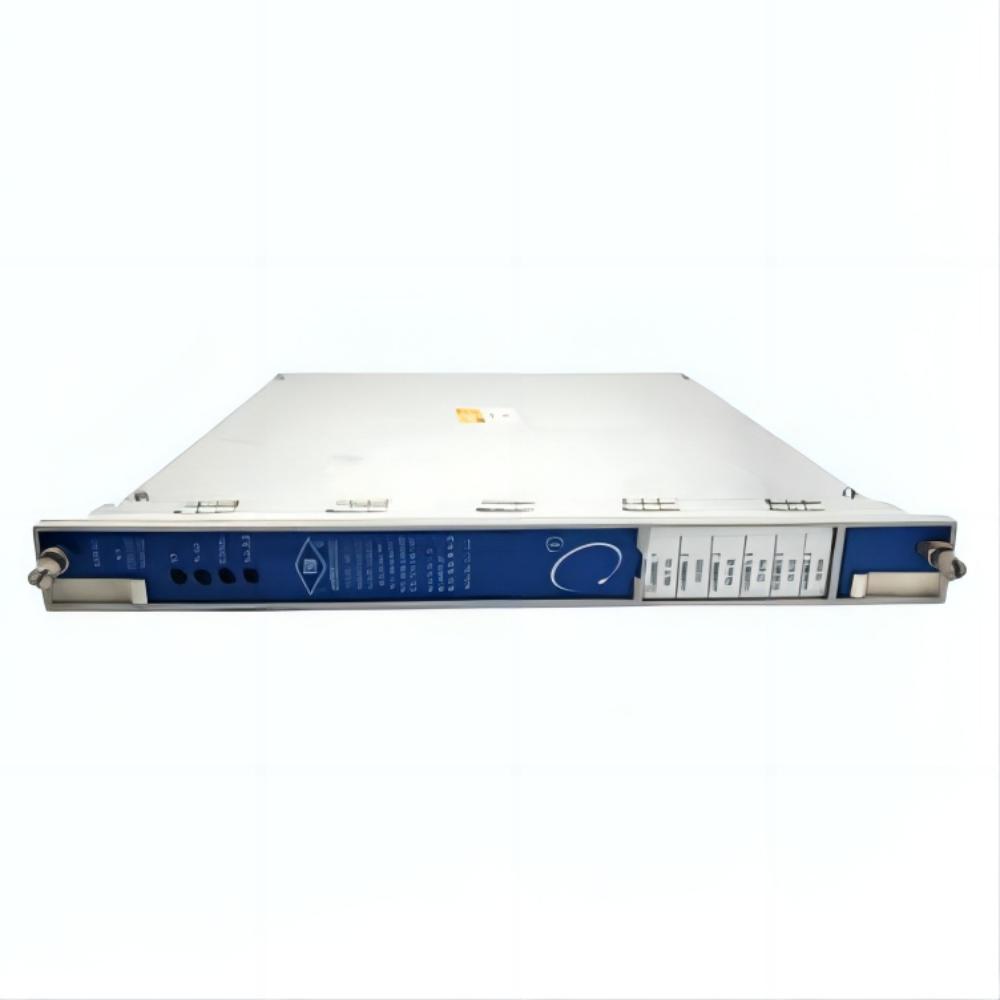

The combined setup of the Bently Nevada 3500/62 163179-03 monitor and the 136294-01 isolated I/O module provides a robust solution for tracking critical machine parameters such as pressures, flows, temperatures, and levels in industrial environments. The monitor handles signal conditioning and alarm logic while the I/O module provides isolated 4–20 mA input pathways.
General Information
Part Number: 163179-03 (monitor) & 136294-01 (I/O module)
Brand: Bently Nevada
Country of Origin: USA
Product Type: Process Variable Monitor with Isolated I/O
Series: 3500/62
Power Specifications
Monitor Power Consumption: 7.0 W typical
I/O Module Power Consumption: 7.0 W typical
Input Signal Types: Monitor supports ±10 V or 4–20 mA; I/O module accepts isolated 4–20 mA signals
Isolation: I/O module offers high isolation (up to 1500 V RMS) between channels and ground
Communication & Interface

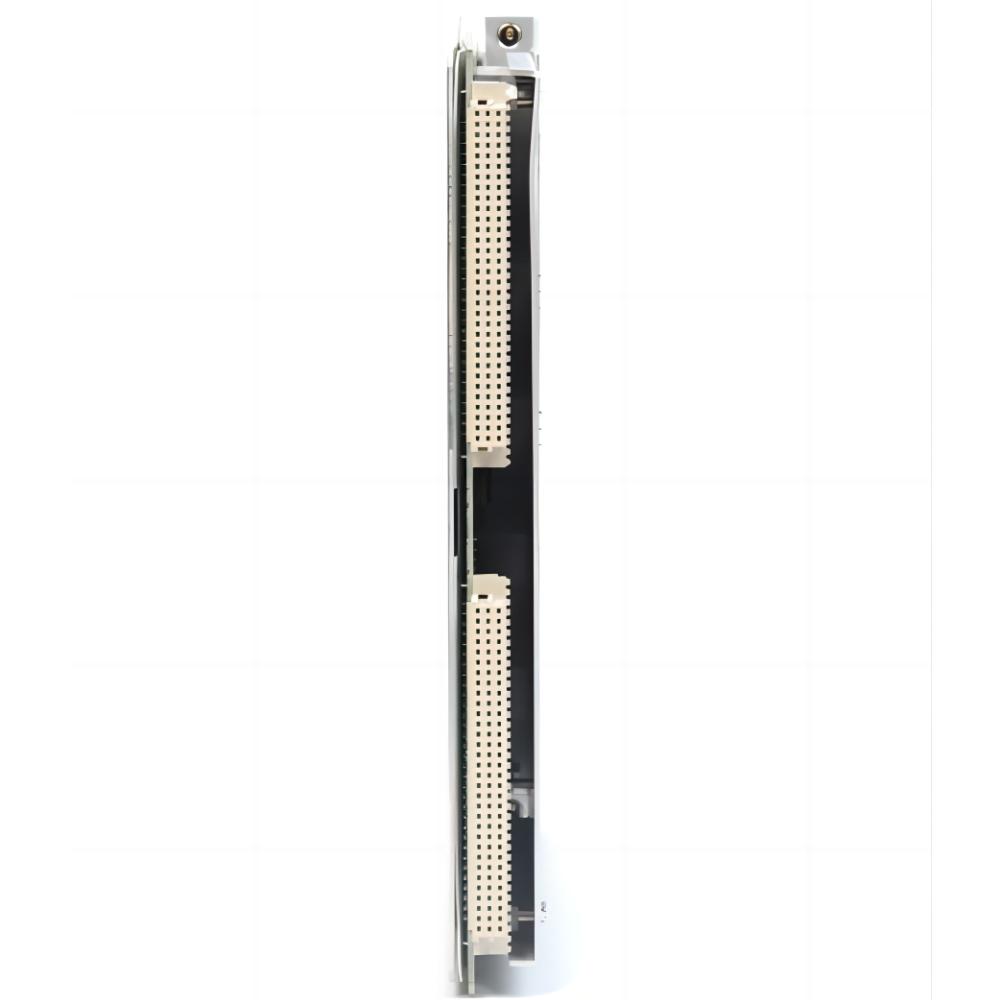

Interface Type: Backplane connection within the 3500/62 rack system
Channels & Function: The monitor supports six analog channels; the I/O module specifically handles isolated 4–20 mA inputs
Diagnostics: Built-in fault detection for signal loops, open/short circuits, and module status
Compatibility: Fully compatible with other 3500/62 I/O modules and rack architecture
Environmental
Operating Temperature: –30 °C to +65 °C (monitor); –30 °C to +65 °C (I/O module)
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 when installed inside a suitable enclosure
Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 241.8 mm
Weight: Approx. 0.82 kg
