Overview

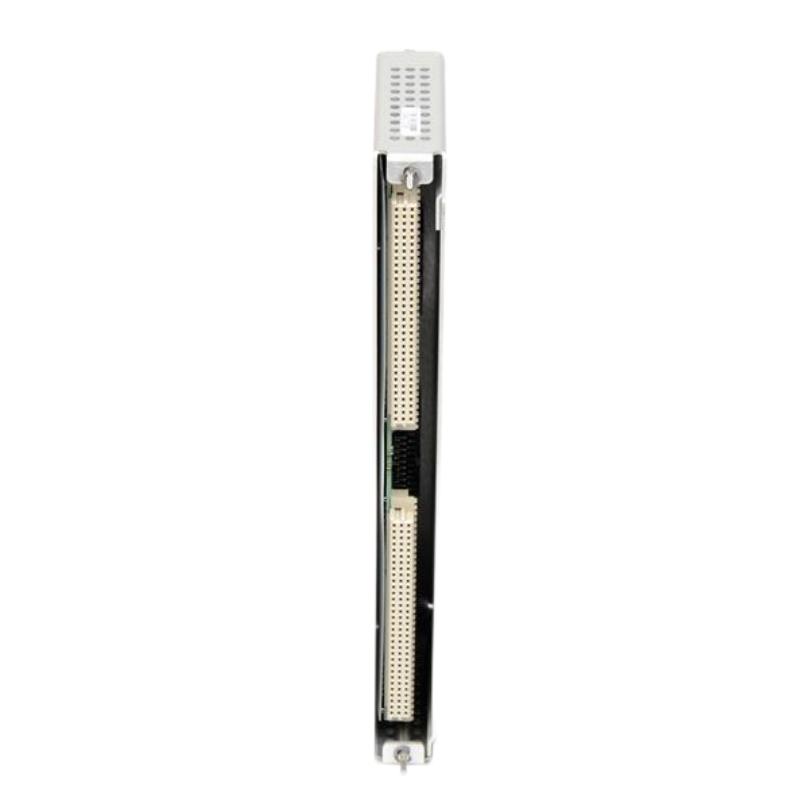

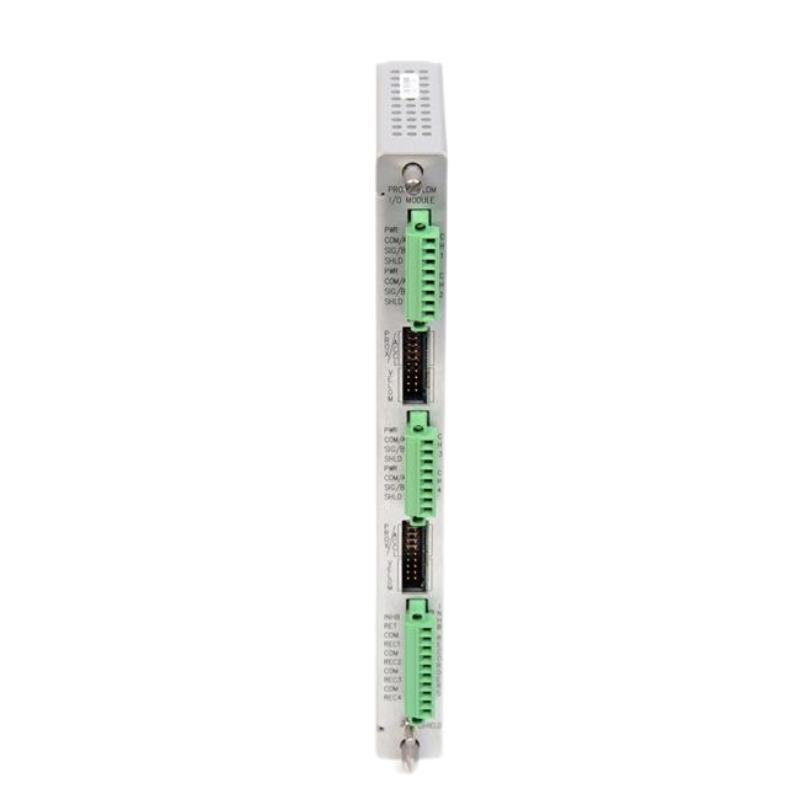

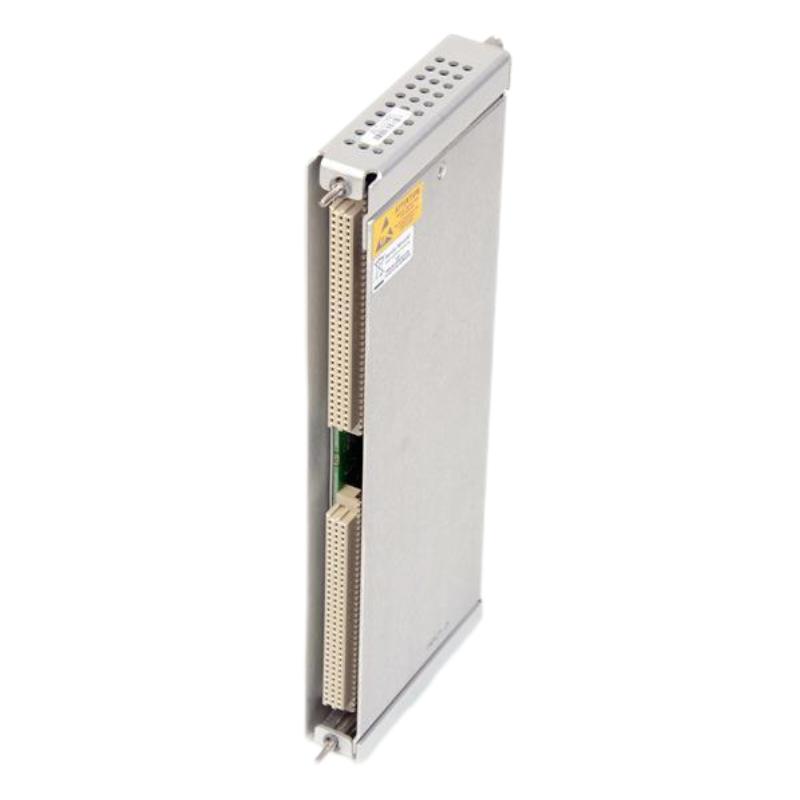

The Bently Nevada 3500/64M 140471-02 is an internal-termination I/O module used within the 3500/64M dynamic pressure monitoring system. It supports streamlined field wiring and maintains signal integrity for machinery protection applications.
General Information
Part Number: 140471-02
Brand / Country of Origin: Bently Nevada / USA
Product Type: Internal Termination I/O Module
Series: 3500/64M
Power Specifications
Supply Voltage: Provided via the monitor backplane
Power Consumption: Typical for I/O modules in this system configuration
Input Channels: Designed for field wiring termination to monitor channels
Communication & Interface
Interface Type: Backplane connection within the 3500/64M rack system
Field Wiring: Internal termination format simplifies installation and maintains loop integrity
Diagnostics: Monitored by system logic, supporting fault detection and alarm propagation
Environmental
Operating Temperature: −30 °C to +65 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 when installed in an enclosure
Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 99.1 mm
Weight: 0.20 kg
