Overview

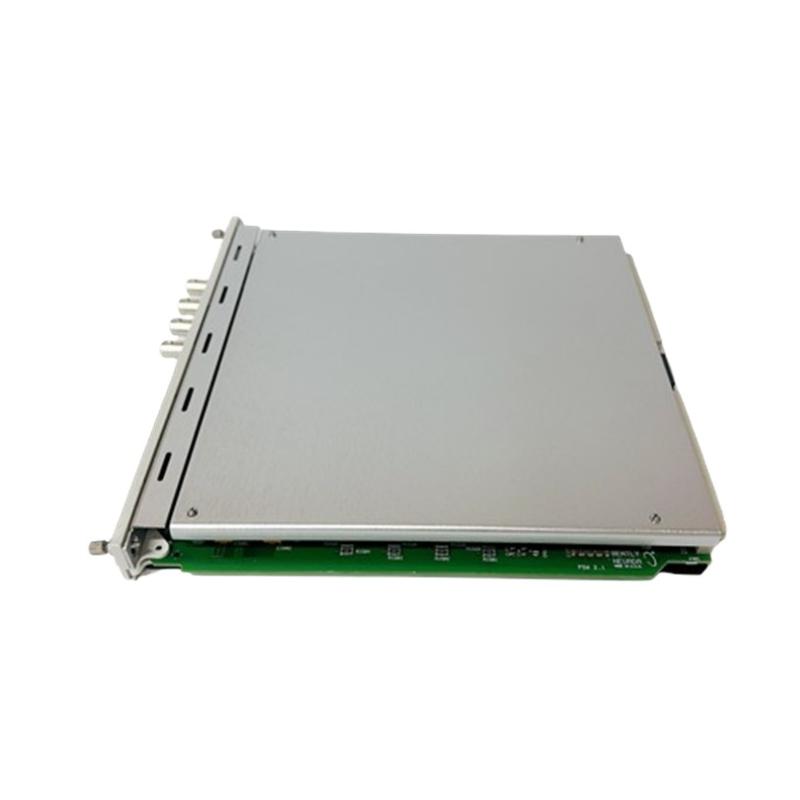

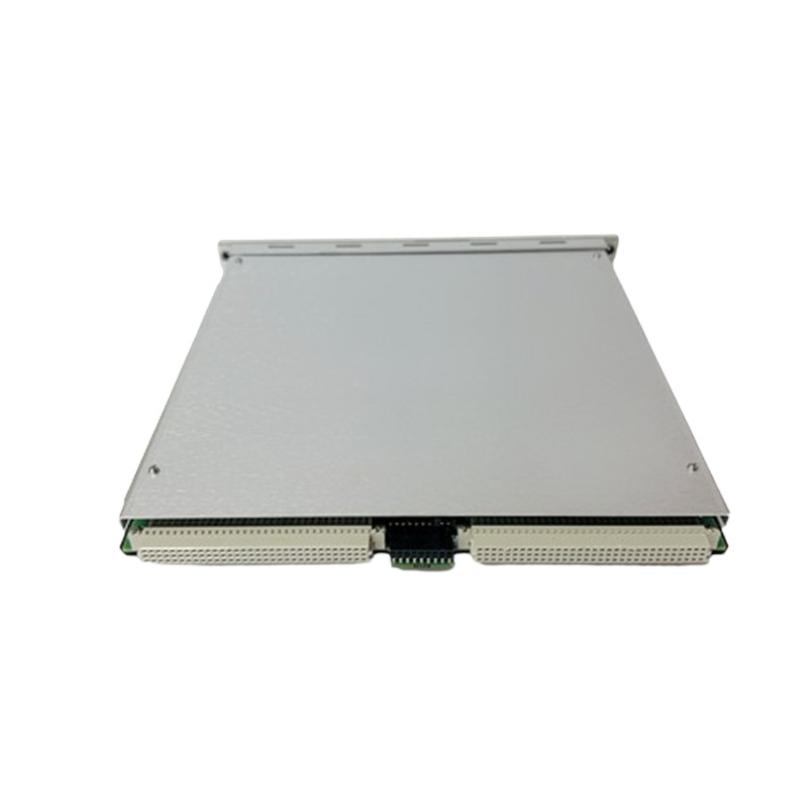

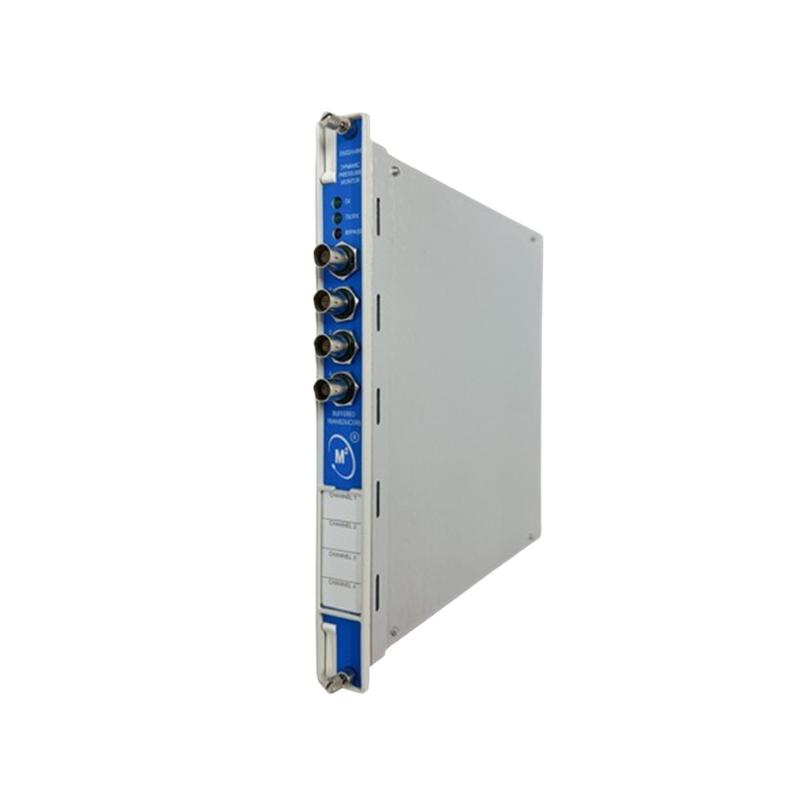

The Bently Nevada 3500/64M 140734-05 is a four-channel dynamic pressure monitor designed for high-temperature and high-frequency applications. It measures transducer signals and issues alerts when machinery conditions deviate from safe thresholds.
General Information
Part Number: 140734-05
Brand / Country of Origin: Bently Nevada / USA
Product Type: Dynamic Pressure Monitor
Series: 3500/64M
Power Specifications
Supply Voltage: Provided via system backplane
Power Consumption: Moderate, consistent with four-channel processing
Output Signals: Buffered transducer outputs and 4-20 mA recorder outputs per channel
Communication & Interface
Interface Type: Backplane connection compatible with 3500 rack systems
Input Channels: Four high-frequency pressure transducer inputs
Diagnostics: LED indicators (OK, TX/RX, Bypass) and status reporting
Environmental
Operating Temperature: –30 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 when installed in proper enclosure
Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 99.1 mm
Weight: Approx. 0.20 kg
