Overview

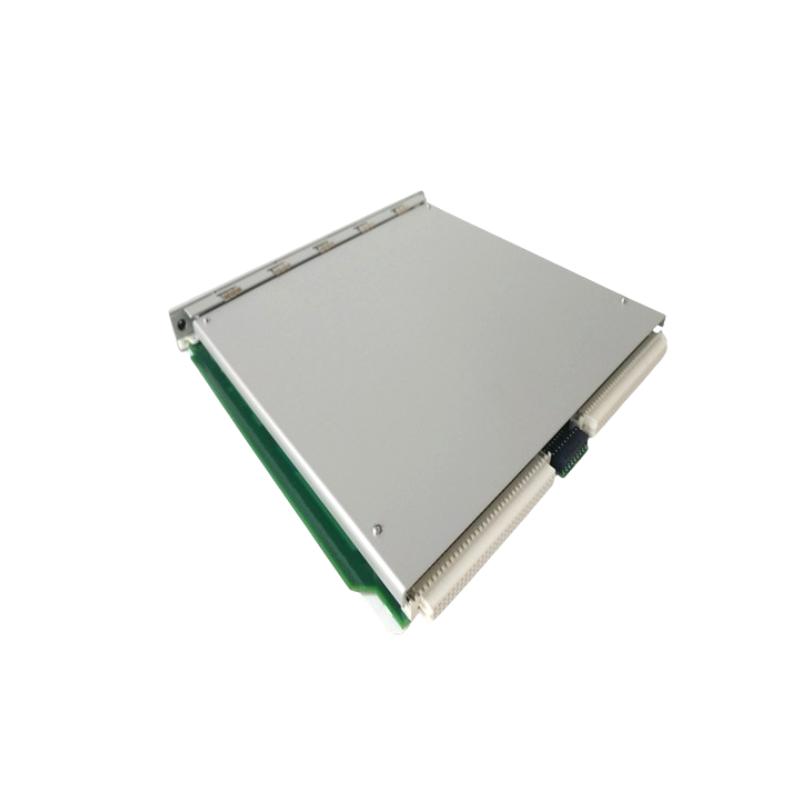

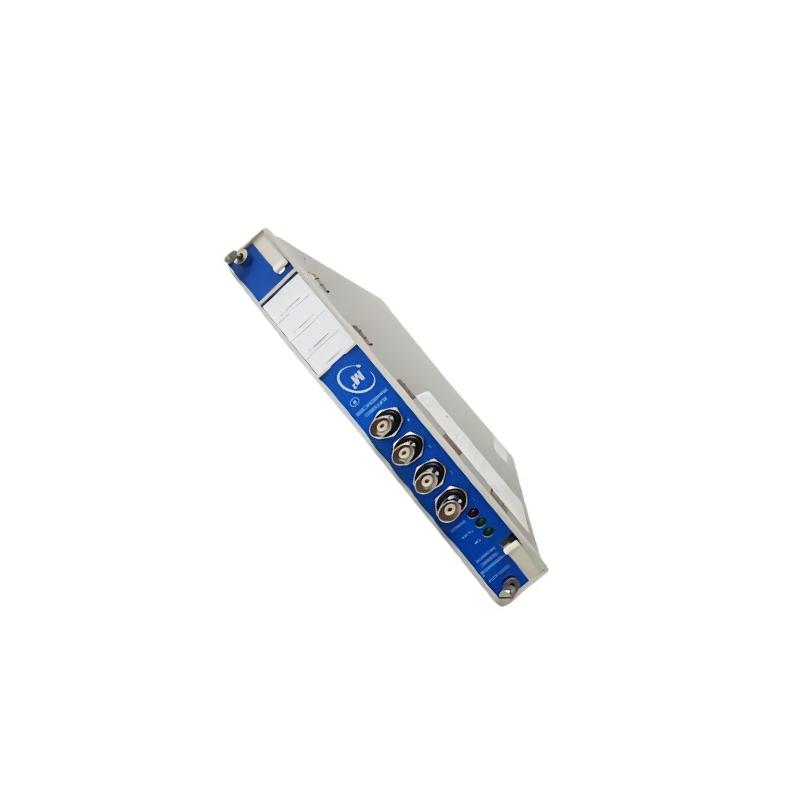

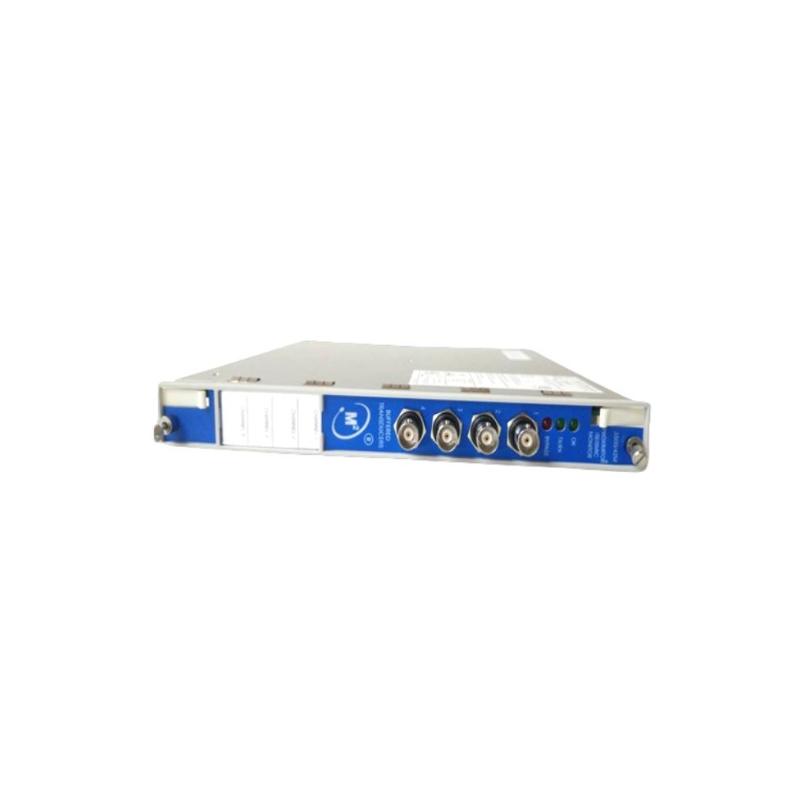

The Bently Nevada 3500/64M 176449-05 is a four-channel dynamic pressure monitor designed for high-temperature applications. It processes transducer signals to provide machinery protection and performance monitoring.
General Information
Part Number: 176449-05
Brand / Country of Origin: Bently Nevada / USA
Product Type: Dynamic Pressure Monitor
Series: 3500/64M
Power Specifications
Supply Voltage: Supplied via rack backplane
Power Consumption: Typical for four-channel processing
Signal Input: High-temperature pressure transducers
Protection: Internal diagnostics and short-circuit tolerance
Communication & Interface
Interface Type: Backplane bus connection within the 3500 system
Inputs: Four dynamic pressure inputs with buffered outputs
Diagnostics: Status LEDs for OK, TX/RX and module health
Environmental
Operating Temperature: −20 °C to +65 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (installed in enclosure)
Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 241.8 mm
Weight: Approx. 0.82 kg
