Overview

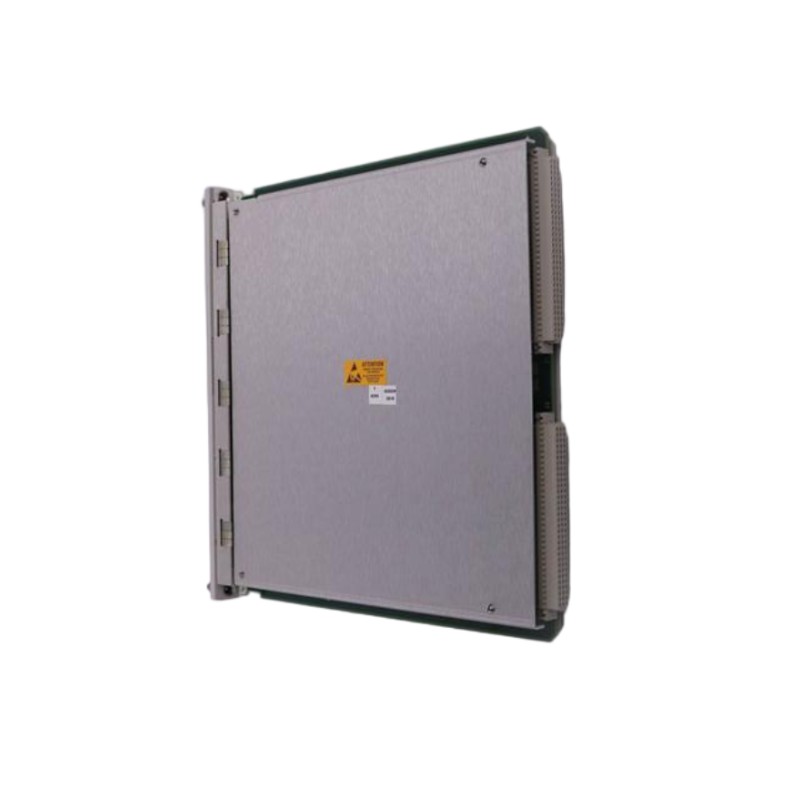

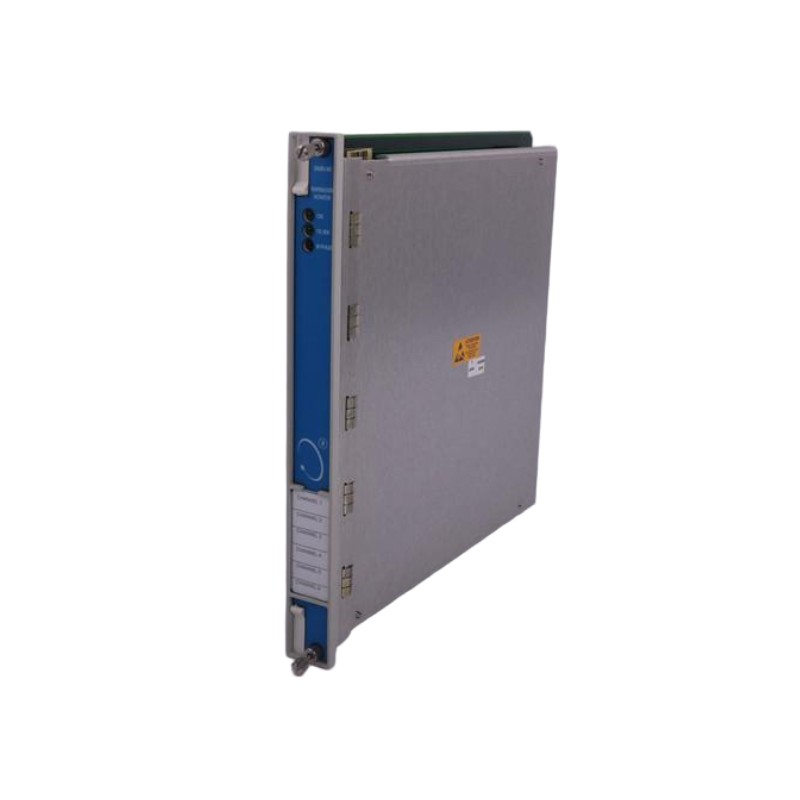

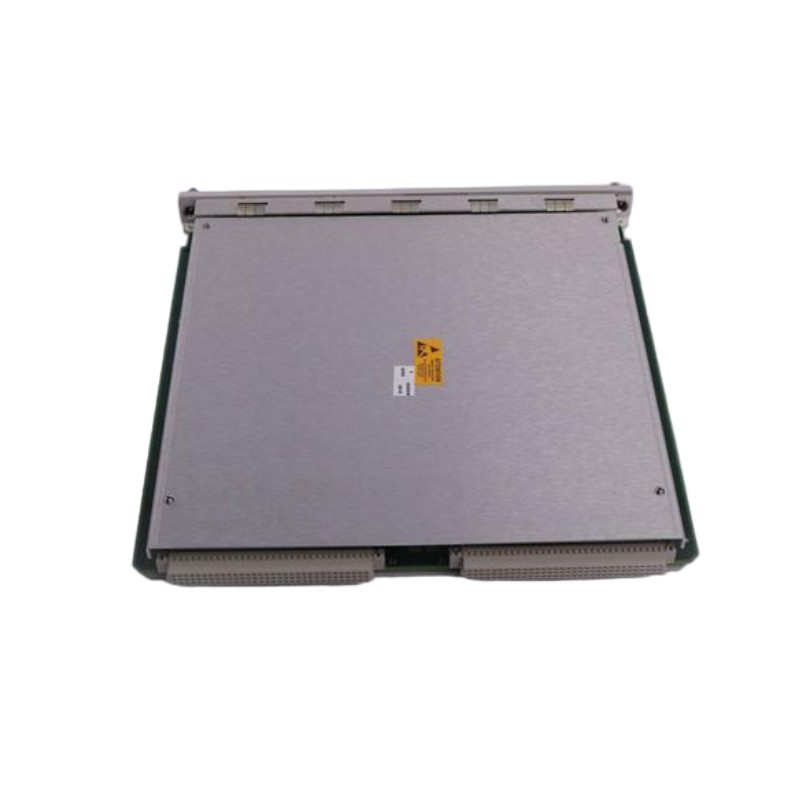

The Bently Nevada 3500/61 (part number 133811‑02) is a six-channel temperature monitoring module used in machinery protection systems. It accepts RTD and thermocouple inputs to monitor the temperature of critical equipment.
General Information
Brand: Bently Nevada
Country of Origin: United States
Part Number: 133811‑02
Series / Type: 3500/61 Temperature Monitor
Function: Measures temperature on six channels and provides alarm outputs
Mounting: Rack-mounted in industrial control systems
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Approx. 9 W
Protection: Internal protections for industrial use
Communication & Interface
Interface Type: Six temperature input channels
Signal Type: RTD or thermocouple inputs
Function: Converts sensor signals into system logic and alarm outputs
Environmental
Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinet or rack
Dimensions & Weight
Dimensions: 241.3 × 24.4 × 99.1 mm
Weight: Approx. 0.20 kg
