Overview

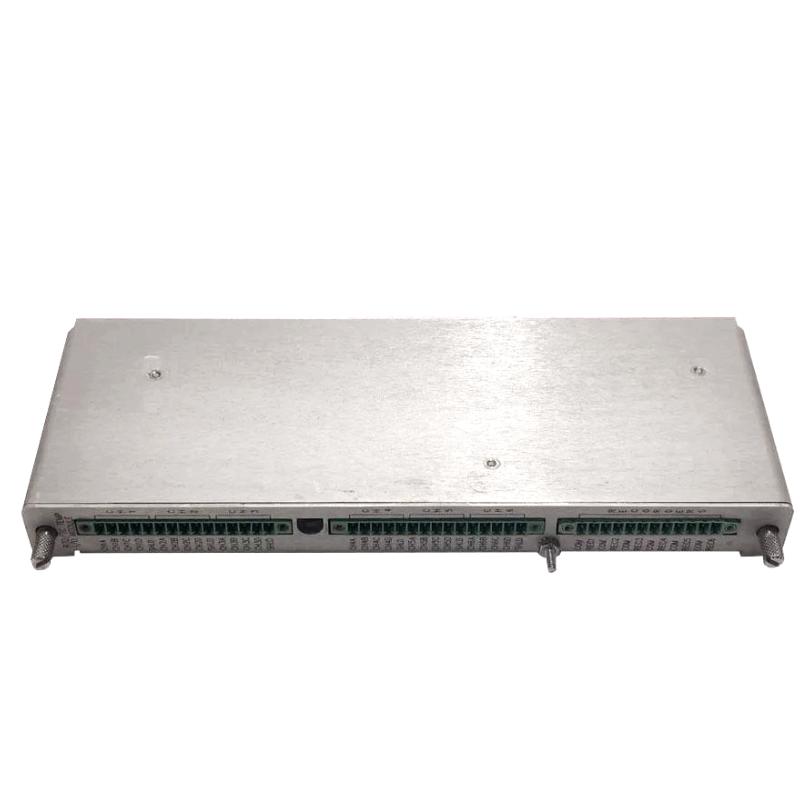

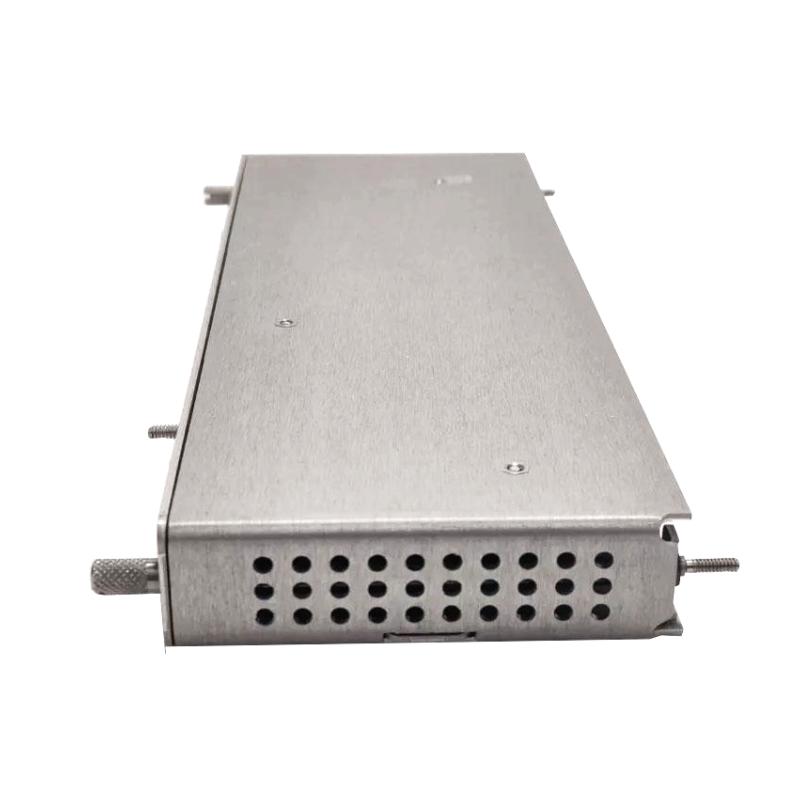

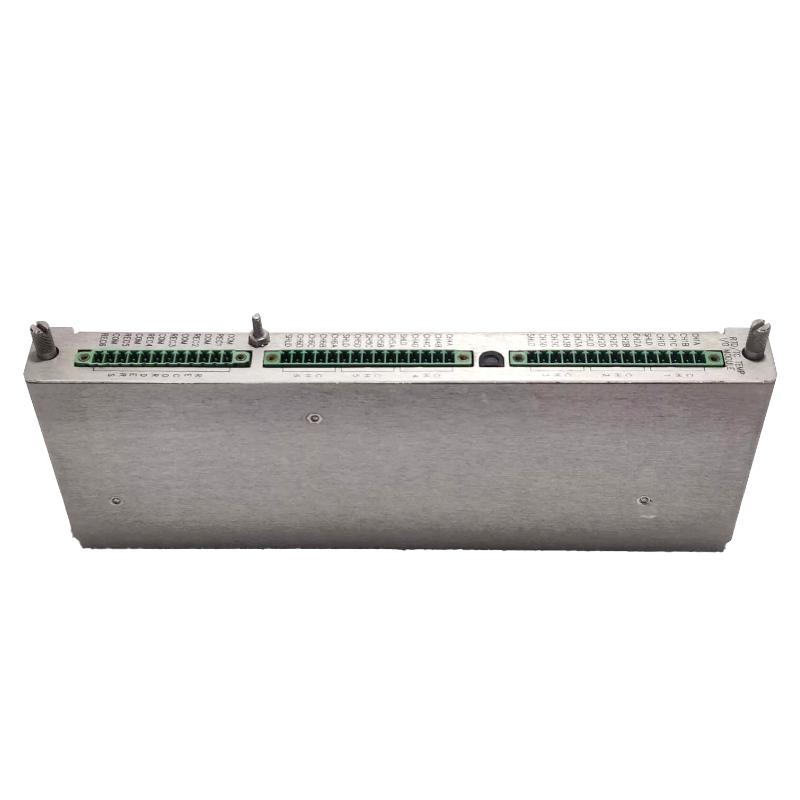

The Bently Nevada 3500/61 (part number 133819‑02) is a six-channel RTD/TC temperature I/O module used in the 3500 series machinery protection system. It accepts resistance temperature detectors (RTDs) or thermocouples (TCs) and sends the signals to the rack-based monitor for alarm and monitoring functions.
General Information
Brand: Bently Nevada
Country of Origin: United States
Part Number: 133819‑02
Series / Type: 3500/61 Temperature I/O Module
Function: Accepts six RTD or TC inputs and provides data to the system for alarm and monitoring
Mounting: Rack-mounted in 3500 series system
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Approx. 9 W
Protection: Industrial-grade protections for rack-mounted operation
Communication & Interface
Interface Type: Six discrete temperature input channels
Signal Type: RTD (platinum 100 Ω) or thermocouple types J, K, E, T
Function: Routes input signals to the system monitor and provides recorder outputs per channel
Environmental
Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinet or rack
Dimensions & Weight
Dimensions: 241.3 × 24.4 × 99.1 mm
Weight: Approx. 0.45 kg
