Overview

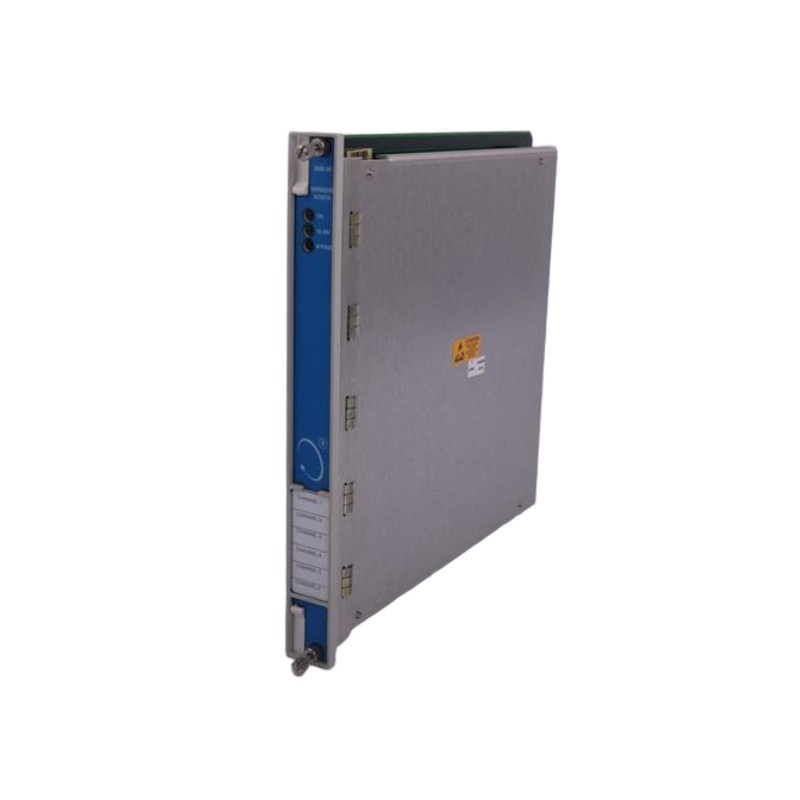

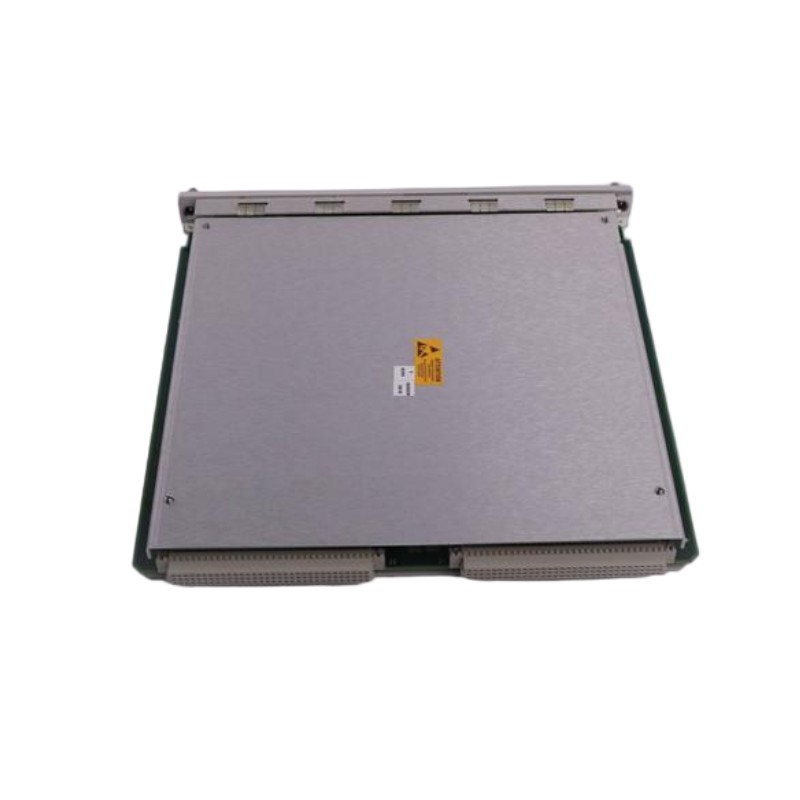

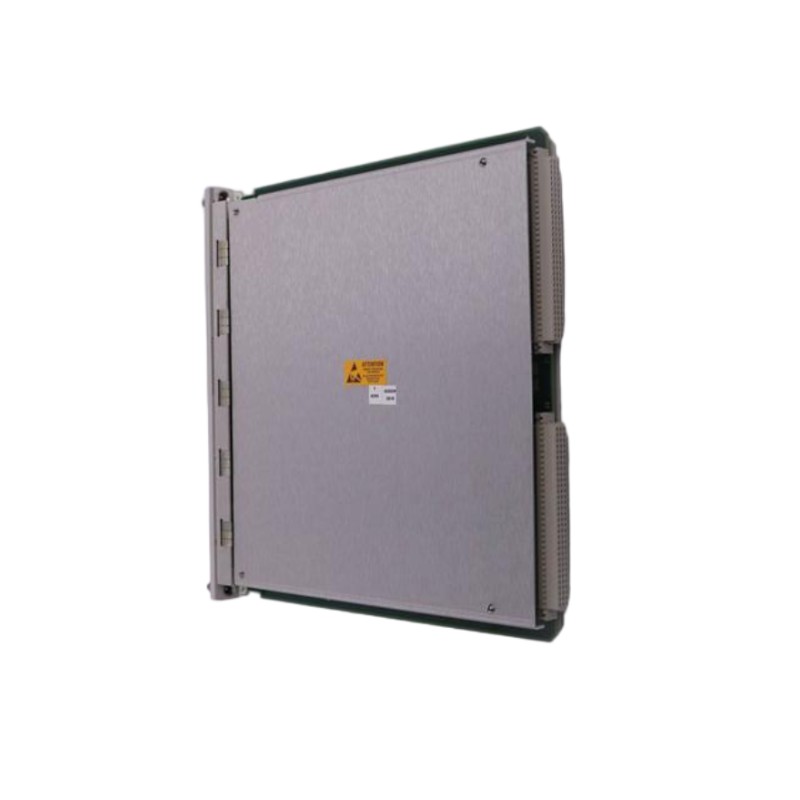

The 3500/61 (part number 133827‑02) is a temperature I/O module from Bently Nevada designed for the 3500 series machinery monitoring system. It supports six channels of RTD or thermocouple inputs with external terminations for field wiring.
General Information
Brand: Bently Nevada
Country of Origin: United States
Part Number: 133827‑02
Series/Type: 3500/61 Temperature I/O Module (RTD/TC non‑isolated, external terminations)
Function: Accepts six RTD or TC inputs and sends data to the monitoring rack
Mounting: Rack‑mounted module in 3500 system
Power Specifications
Supply Voltage: 24 V DC via rack backplane
Power Consumption: Approximately 9 W typical
Protection: Industrial‑grade protections for module use in control environments
Communication & Interface
Interface Type: Six discrete temperature input channels
Signal Types: RTD (platinum 100 Ω) or thermocouple types J, K, E, T
Function: Conditions and routes sensor signals to the main monitor module
Environmental
Operating Temperature: −30 °C to +65 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet or rack
Dimensions & Weight
Dimensions: 241.3 × 24.4 × 99.1 mm
Weight: Approx. 0.45 kg
