Overview

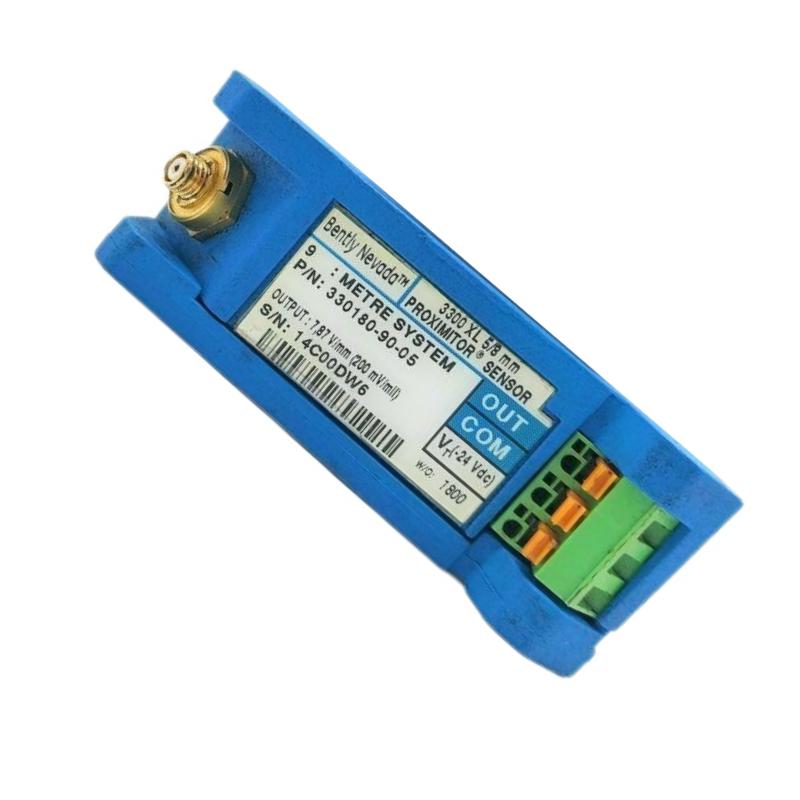

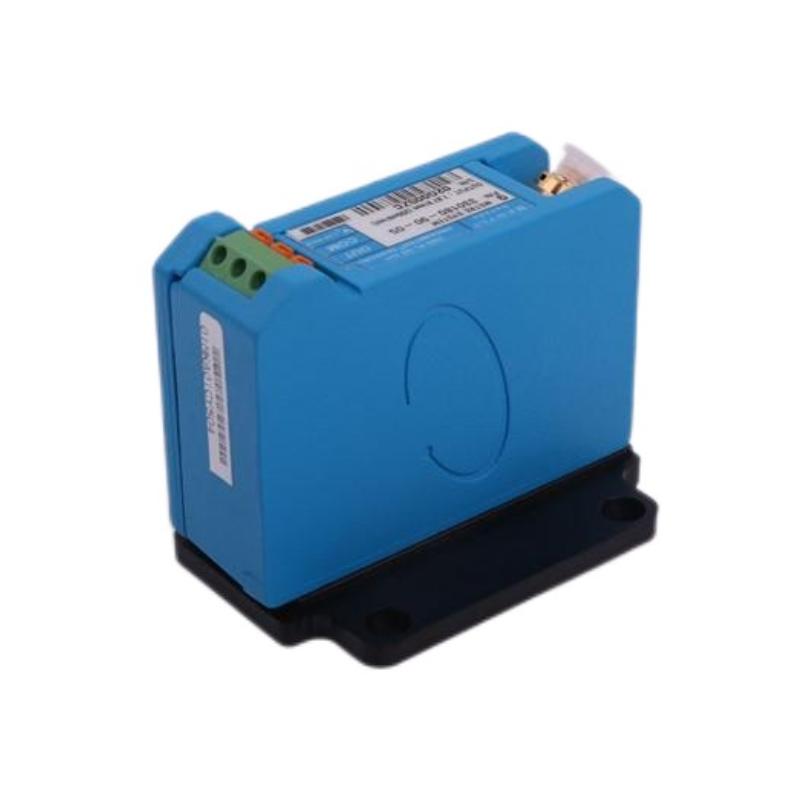

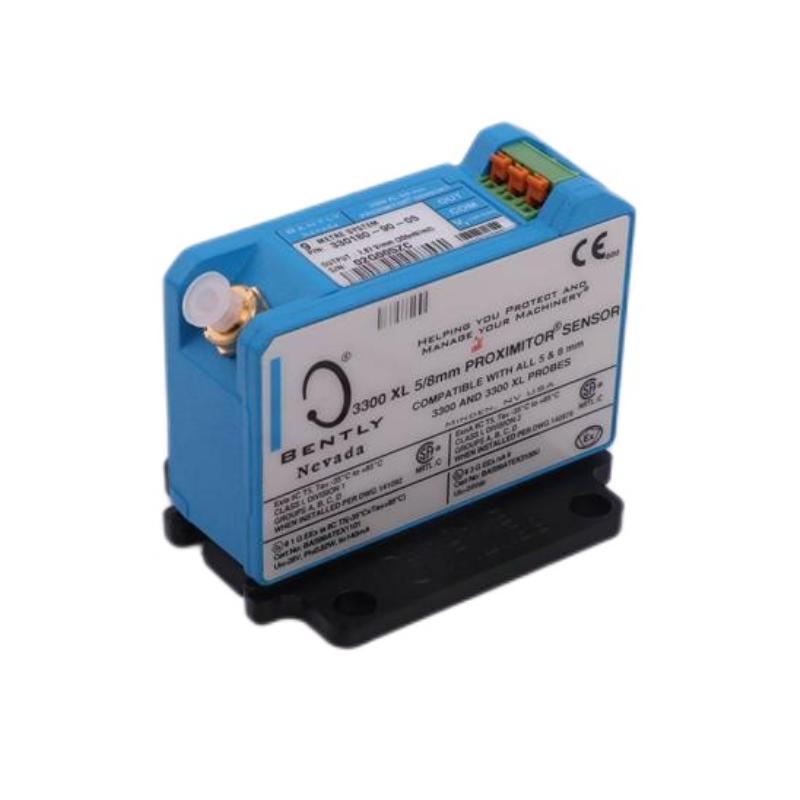

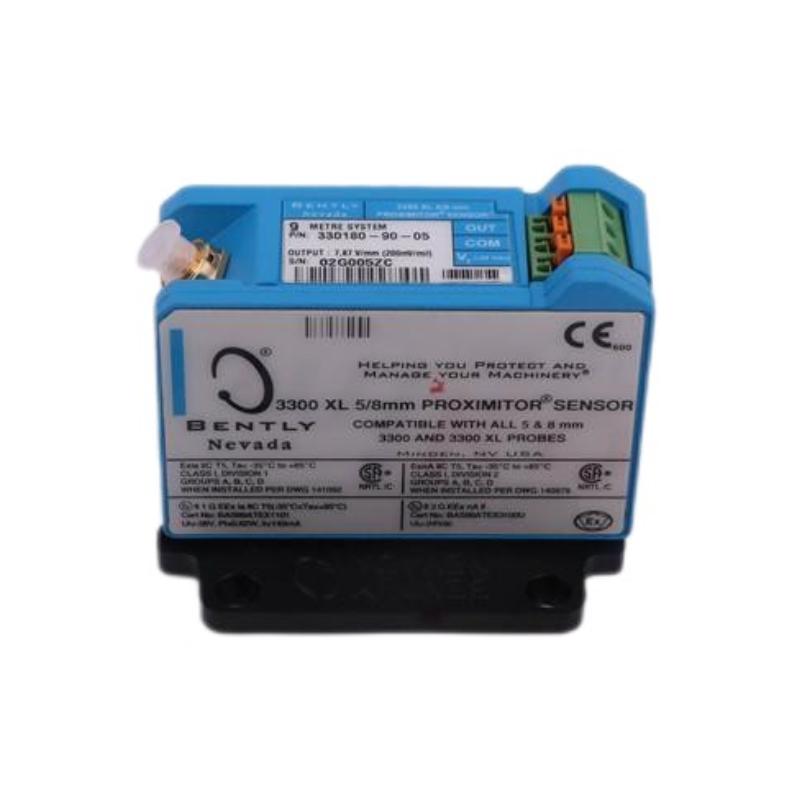

The Bently Nevada 330180-90-05 is a 3300 XL proximitor (eddy current) sensor configured with a 9.0 m system length and panel mounting. It provides non-contact vibration and displacement measurement for rotating machinery.
General Information
Brand: Bently Nevada
Country of Origin: United States
Model: 330180-90-05
Product Type: Proximitor Sensor / Transducer
Series: 3300 XL
Mounting Method: Panel mount
Power Specifications
Excitation Voltage: 17.5 to 26 V DC
Operating Current: ~12 mA typical
Power Sensitivity: <2 mV change per 1 V variation
Protection: Internal overload and fault protection
Communication & Interface
Output Signal: Analog voltage proportional to gap
Interface: Compatible with 3300 XL monitoring modules
Diagnostics: Self-check and linearity monitoring
Probe Compatibility: 5/8 mm probes and matching extension cables
Environmental
Operating Temperature: –55 °C to +120 °C
Storage Temperature: –60 °C to +125 °C
Relative Humidity: 5% to 95% RH, non-condensing
Protection Rating: IP66 / IP67 when properly installed
Dimensions & Weight
Dimensions: 81.3 x 35.1 x 63.5 mm
Weight: 0.246 kg
