Overview

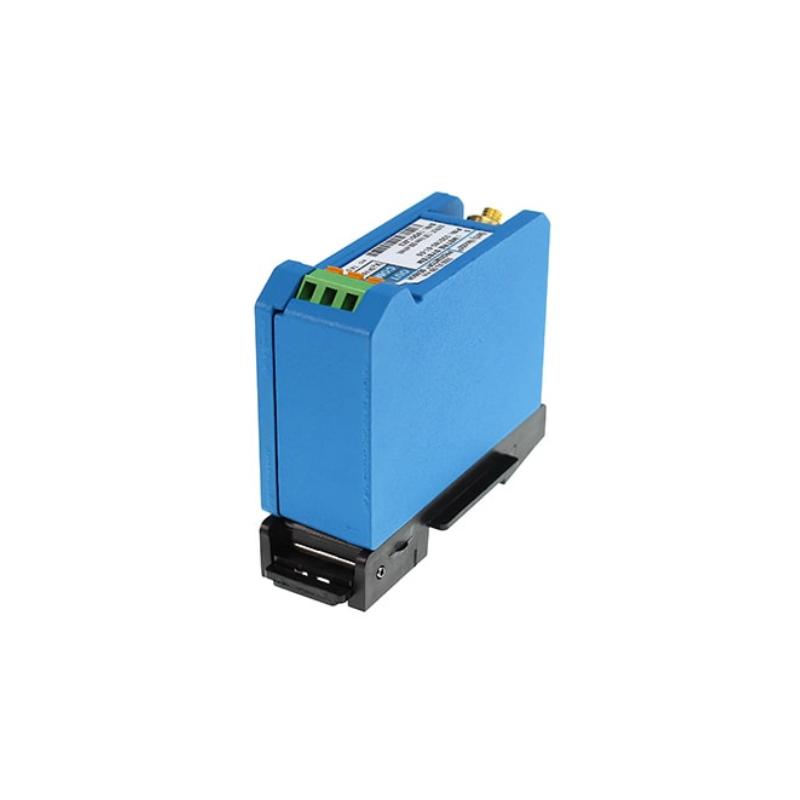

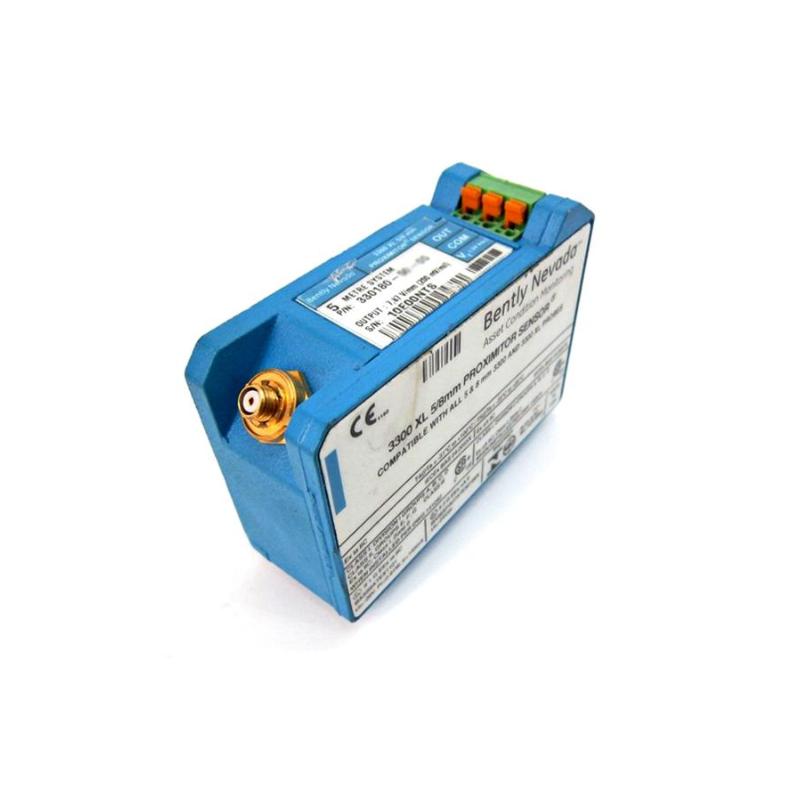

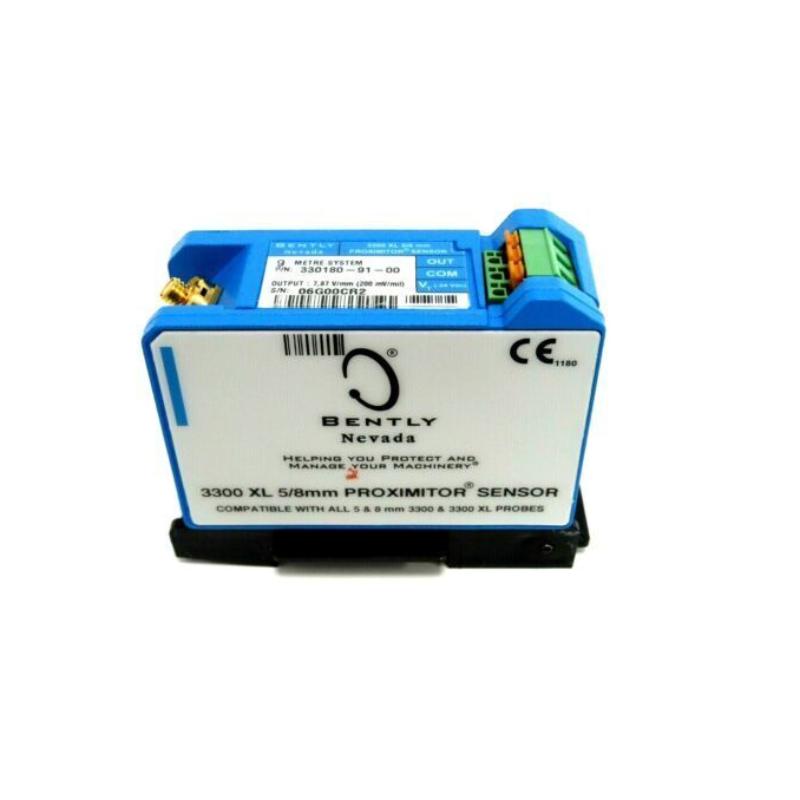

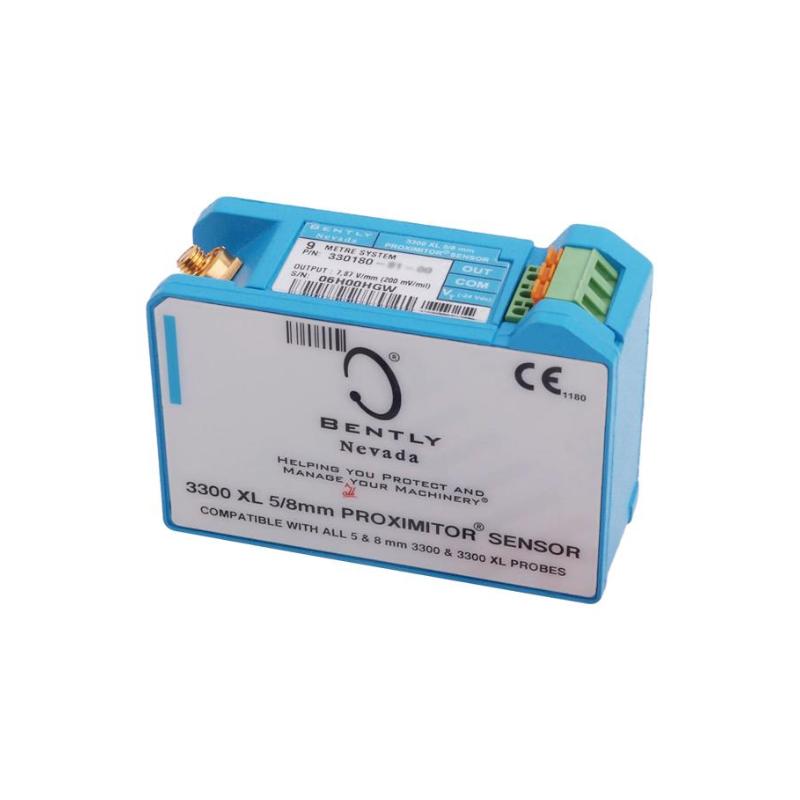

The Bently Nevada 330180-91-00 is a 9.0 m, DIN-mount 3300 XL Proximitor sensor. It performs noncontact distance and vibration measurement for rotating machinery, integrating seamlessly with 3300 XL monitoring systems.
General Information
Brand: Bently Nevada
Country of Origin: United States
Model: 330180-91-00
Product Type: Proximitor Sensor / Transducer
Series: 3300 XL
System Length: 9.0 m
Mounting Method: DIN mount
Power Specifications
Excitation Voltage: 17.5 to 26 V DC
Current Consumption: ~12 mA typical
Output: Analog voltage proportional to gap
Protection: Internal overload and fault protection
Communication & Interface
Output Signal: Voltage proportional to probe-to-target distance
Interface: Compatible with 3300 XL monitoring modules
Diagnostics: Sensor self-check and linearity monitoring
Probe Compatibility: 5/8 mm or 8 mm probes and matching extension cables
Environmental
Operating Temperature: –55 °C to +120 °C
Storage Temperature: –60 °C to +125 °C
Relative Humidity: 5–95% RH, non-condensing
Protection Rating: IP66 / IP67 when properly installed
Dimensions & Weight
Dimensions: 81.3 x 35.1 x 63.5 mm
Weight: 0.246 kg
