Overview

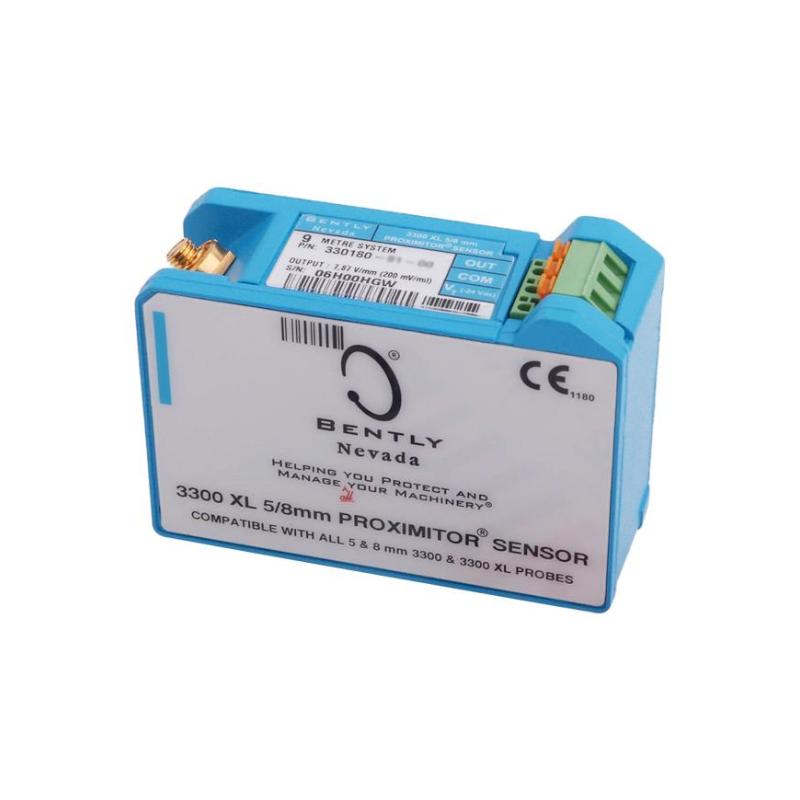

The Bently Nevada 330180-91-05 is a high-precision 3300 XL Proximitor sensor configured with a 9.0-meter system length and DIN-mount style. It delivers reliable non-contact displacement and vibration measurement for rotating machinery.
General Information
Brand: Bently Nevada
Country of Origin: United States
Model: 330180-91-05
Product Type: Proximitor Sensor / Transducer
Series: 3300 XL
Mounting Method: DIN mount
Power Specifications
Excitation Voltage: 17.5 to 26 V DC
Operating Current: ~12 mA typical
Output Sensitivity: Analog voltage proportional to probe gap
Protection: Internal overload and fault detection
Communication & Interface
Output Signal: Analog voltage related to displacement
Interface: Compatible with 3300 XL monitoring modules
Diagnostics: Self-check of sensor electronics and linear output
Probe Compatibility: 5/8 mm probes with matching extension cables
Environmental
Operating Temperature: –55 °C to +120 °C
Storage Temperature: –60 °C to +125 °C
Humidity: 5–95% RH, non-condensing
Protection Rating: IP66 / IP67 when properly installed
Dimensions & Weight
Dimensions: 81.3 x 35.1 x 63.5 mm
Weight: 0.246 kg
