Overview

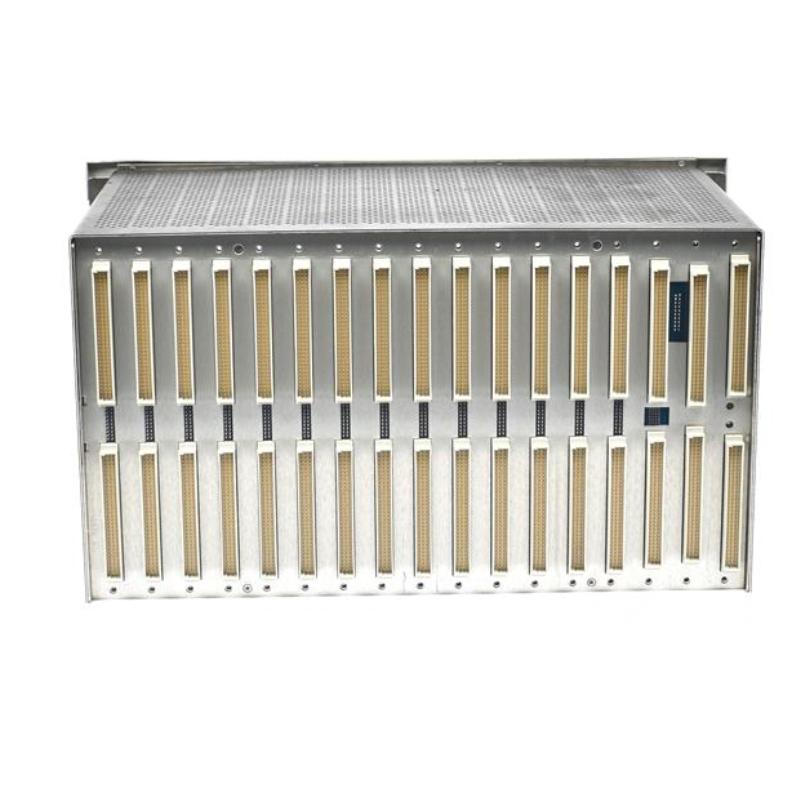

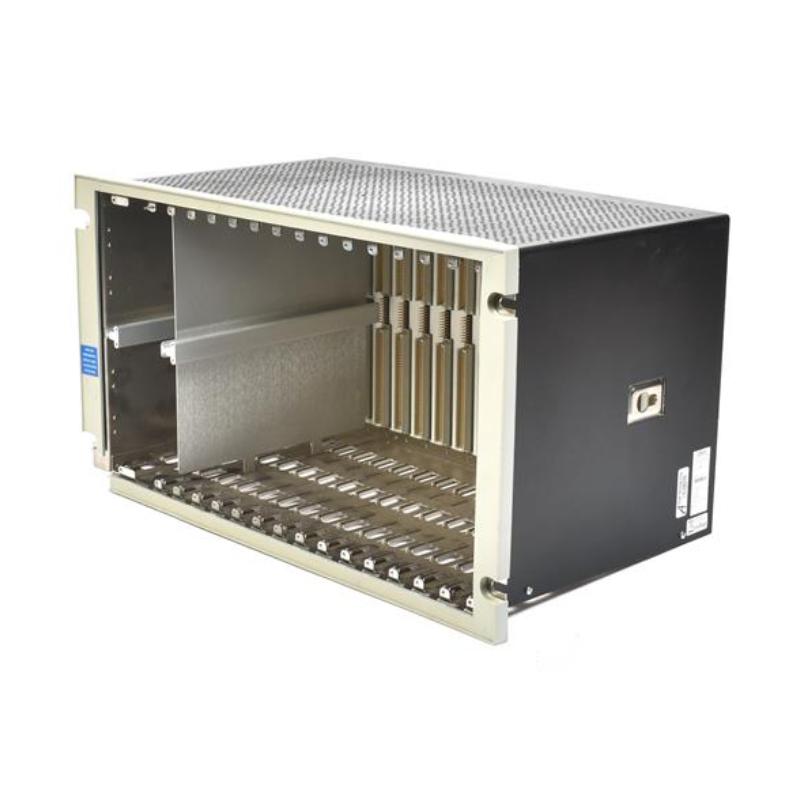

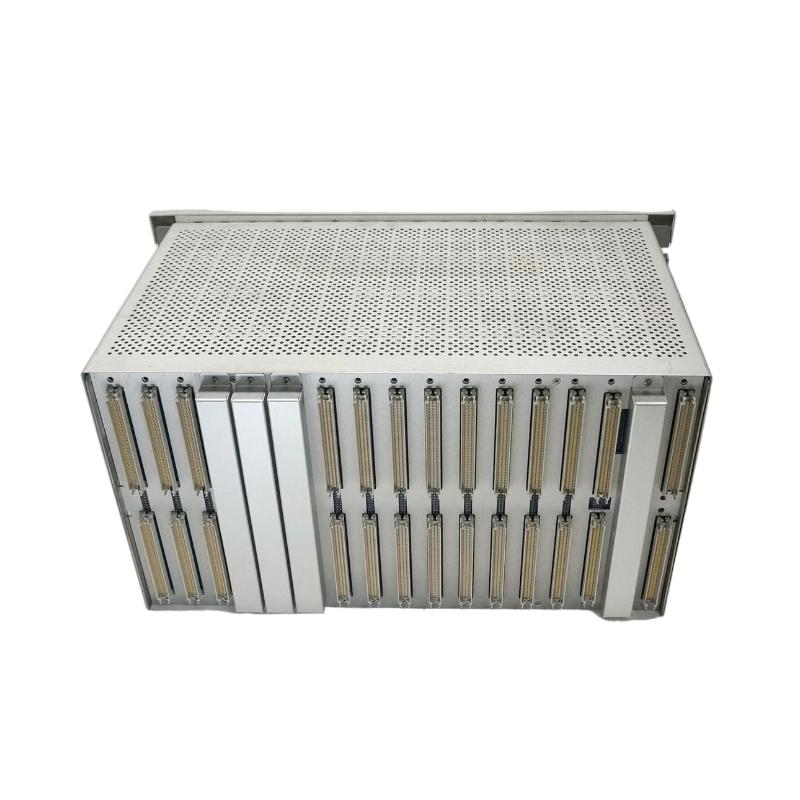

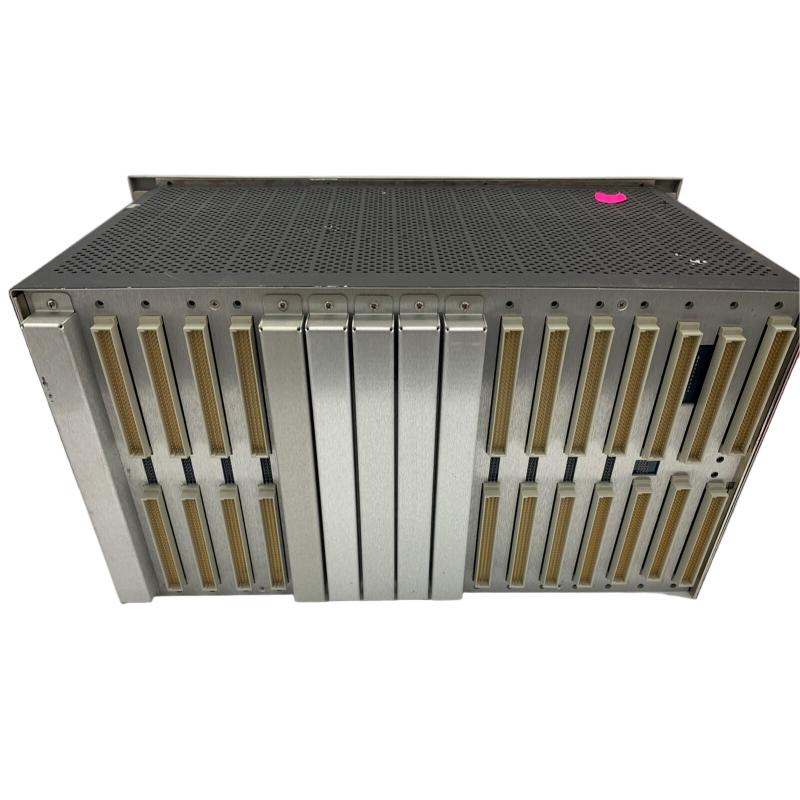

The Bently Nevada 3500/05-02-04-00-00-01 is a system rack designed for the 3500 Machinery Protection System. It provides a secure structure and backplane connections for power and signal distribution among all monitoring and communication modules, ensuring reliable and continuous machinery condition monitoring.
General Information
Part Number: 3500/05-02-04-00-00-01
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500 Series
Type: System Rack
Technology: Modular backplane design for vibration and condition monitoring systems
Power Specifications
Supply Voltage: From 3500 Power Supply Module
Power Distribution: Through the rack’s backplane to all installed modules
Protection: Overvoltage and short-circuit protection
Indicators: None (status shown on installed modules)
Communication & Interface
Rack Interface: Integrated backplane for signal and power interconnection
Supported Modules: Power supply, communication gateway, monitoring, and I/O modules
Connectivity: Module-to-module communication and power routing
Configuration: Managed through system configuration software and installed modules
Environmental
Operating Temperature: 0 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: For installation within a protective cabinet or enclosure
Dimensions & Weight
Rack Size : 12-inch (7 module slots)
Weight: 4.5 kg
