Overview

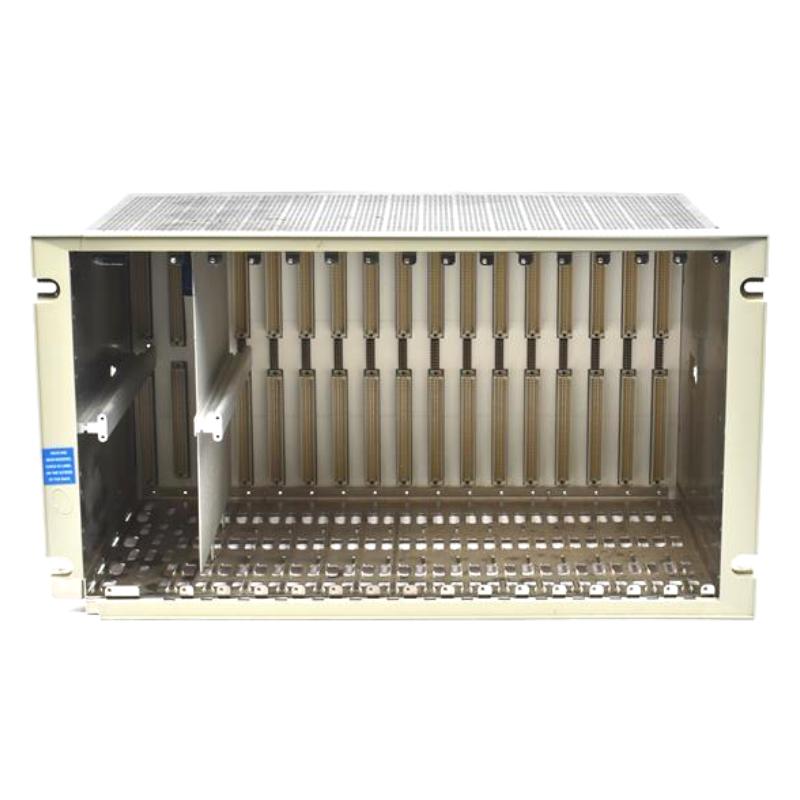

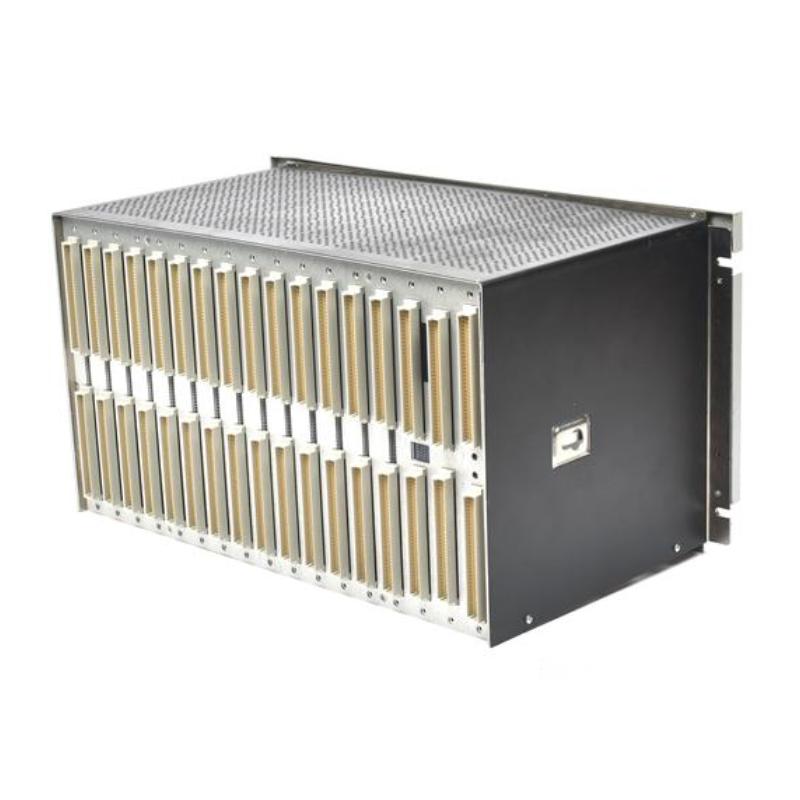

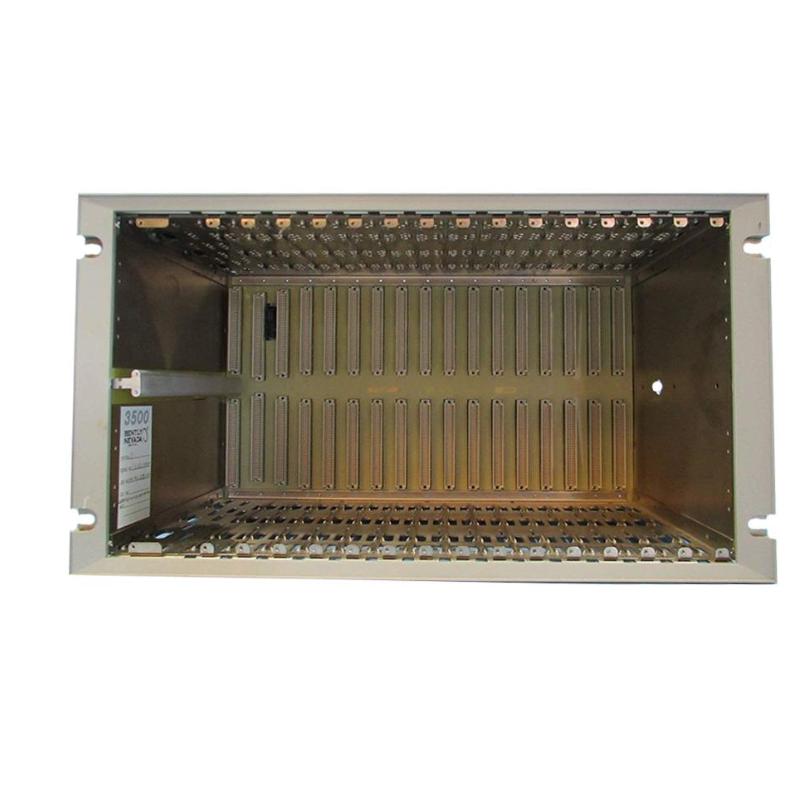

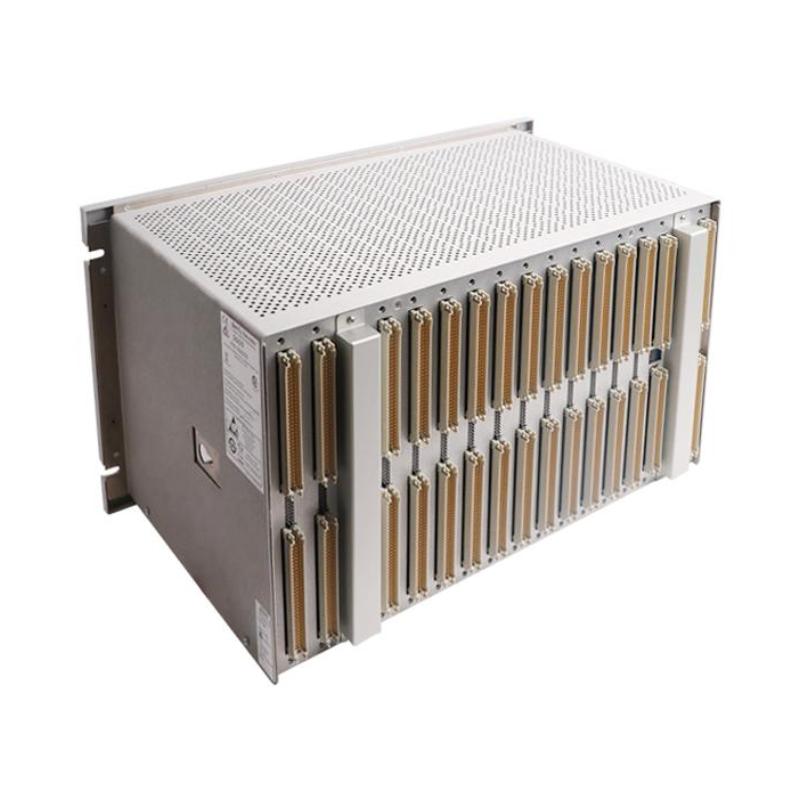

The Bently Nevada 3500/05-02-04-01-00-00 is a system rack used in the Bently Nevada 3500 Machinery Protection System. It serves as the main framework for housing and connecting monitoring, power supply, and communication modules, providing both electrical and mechanical support for continuous machinery condition monitoring.
General Information
Part Number: 3500/05-02-04-01-00-00
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500 Series
Type: System Rack
Technology: Modular backplane design for vibration and system monitoring
Power Specifications
Supply Voltage: Provided by the 3500 Power Supply Module
Power Distribution: Through the rack’s internal backplane
Protection: Overvoltage and short-circuit protection
Indicators: None (status shown on installed modules)
Communication & Interface
Rack Interface: Backplane for power and signal interconnection
Supported Modules: Power supply, communication gateway, I/O, and monitoring modules
Connectivity: Module-to-module data and power distribution
Configuration: Managed via system configuration software and module interfaces
Environmental
Operating Temperature: 0 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: For cabinet or enclosed installation
Dimensions & Weight
Rack Size : 12-inch (7 module slots)
Weight: 4.5 kg
