Overview

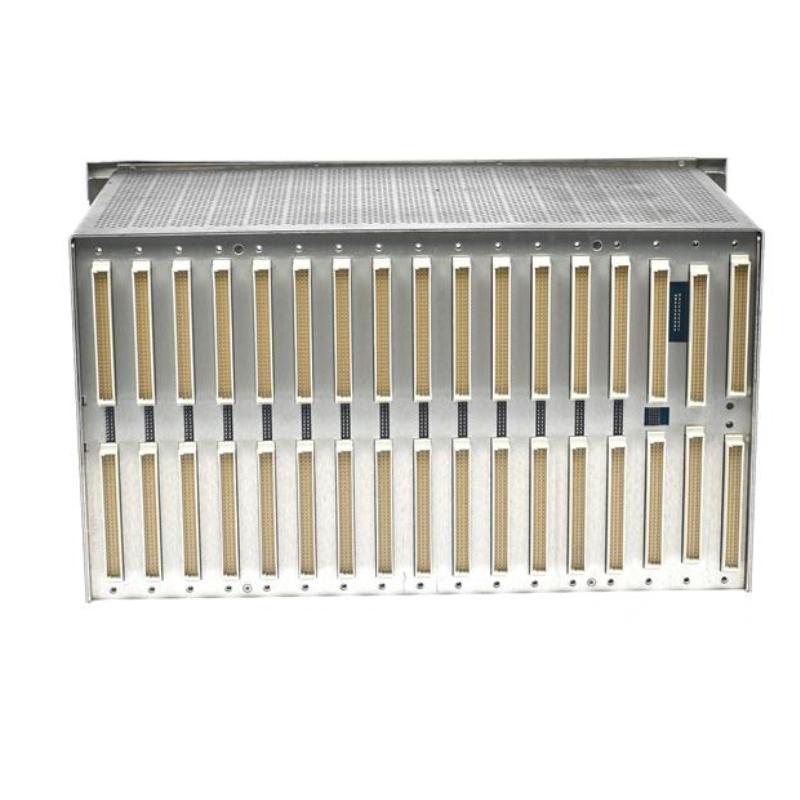

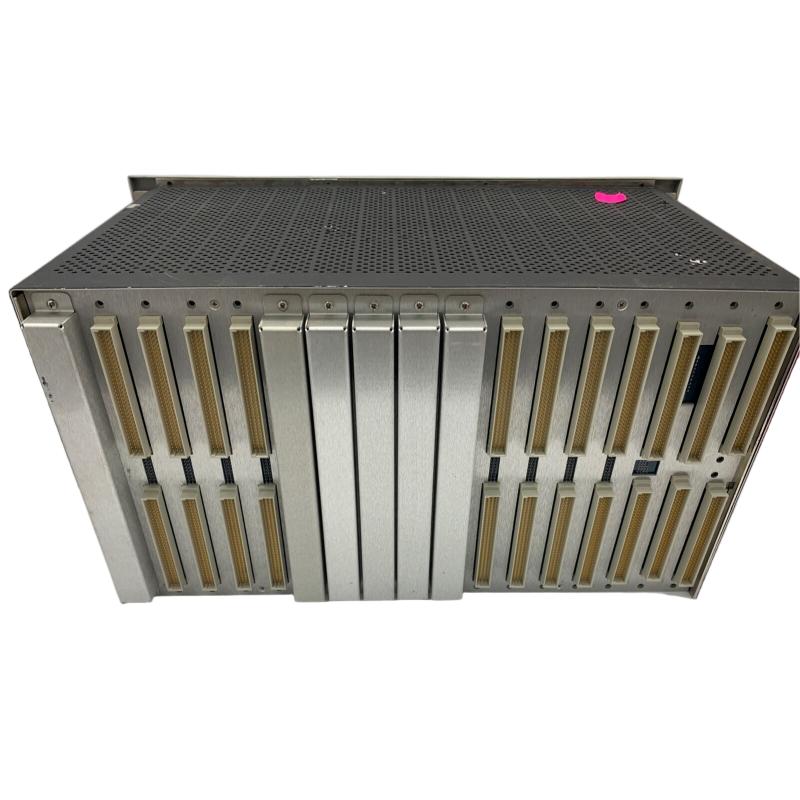

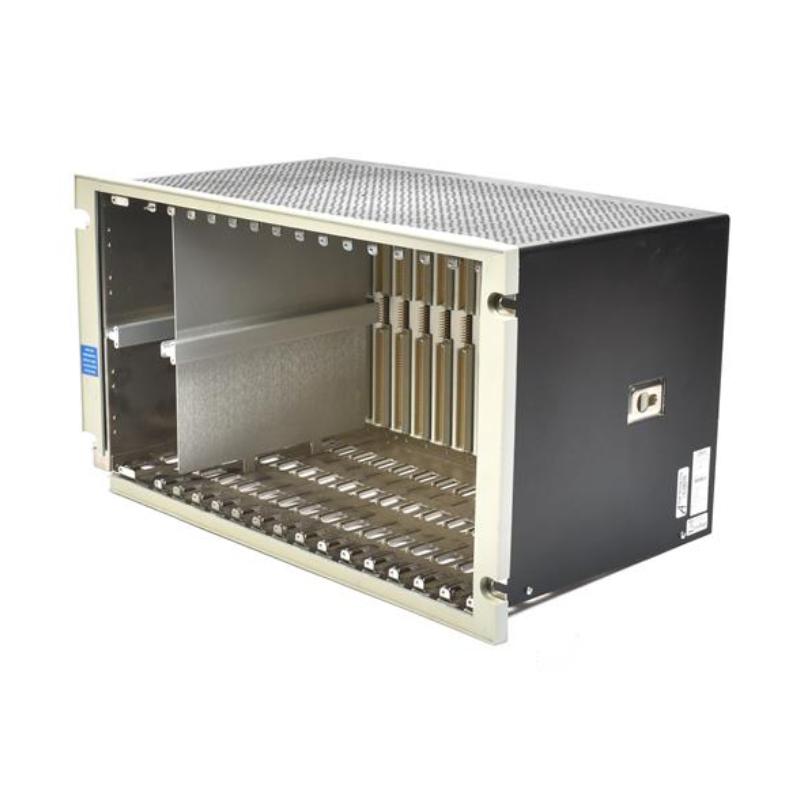

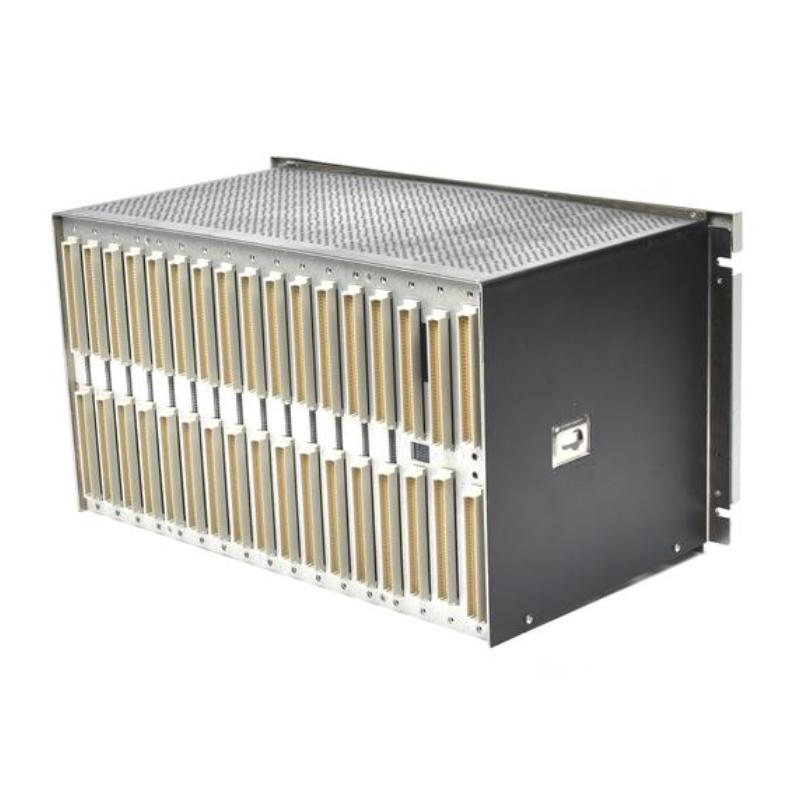

The Bently Nevada 3500/05-02-05-00-00-00 is a system rack designed for the 3500 Machinery Protection System. It provides mechanical support and electrical backplane connectivity for power, communication, and monitoring modules, ensuring stable performance and reliable machine condition monitoring in industrial environments.
General Information
Part Number: 3500/05-02-05-00-00-00
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500 Series
Type: System Rack
Technology: Modular backplane for power and data distribution between modules
Power Specifications
Supply Voltage: Provided by the 3500 Power Supply Module
Power Distribution: Through the backplane to all installed modules
Protection: Overvoltage and short-circuit protection
Indicators: None (status indicated on installed modules)
Communication & Interface
Rack Interface: Internal backplane for signal and power interconnection
Supported Modules: Power supply, communication, I/O, and monitoring modules
Connectivity: Enables data and power transfer between all modules
Configuration: Controlled via system software and module settings
Environmental
Operating Temperature: 0 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (intended for installation inside control cabinets)
Dimensions & Weight
Rack Size : 12-inch (7 module slots)
Weight: 4.5 kg
