Overview

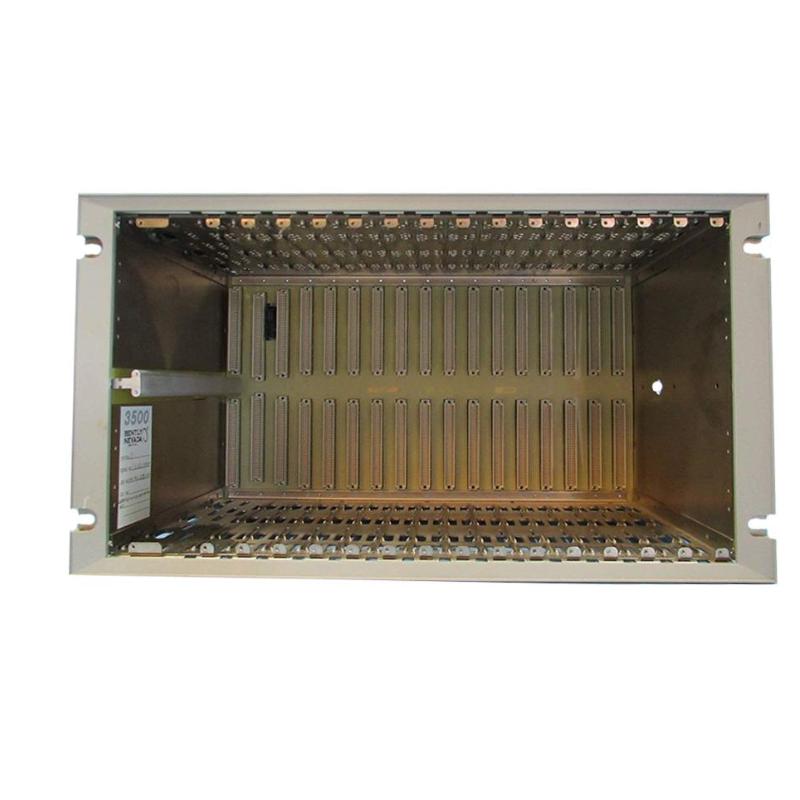

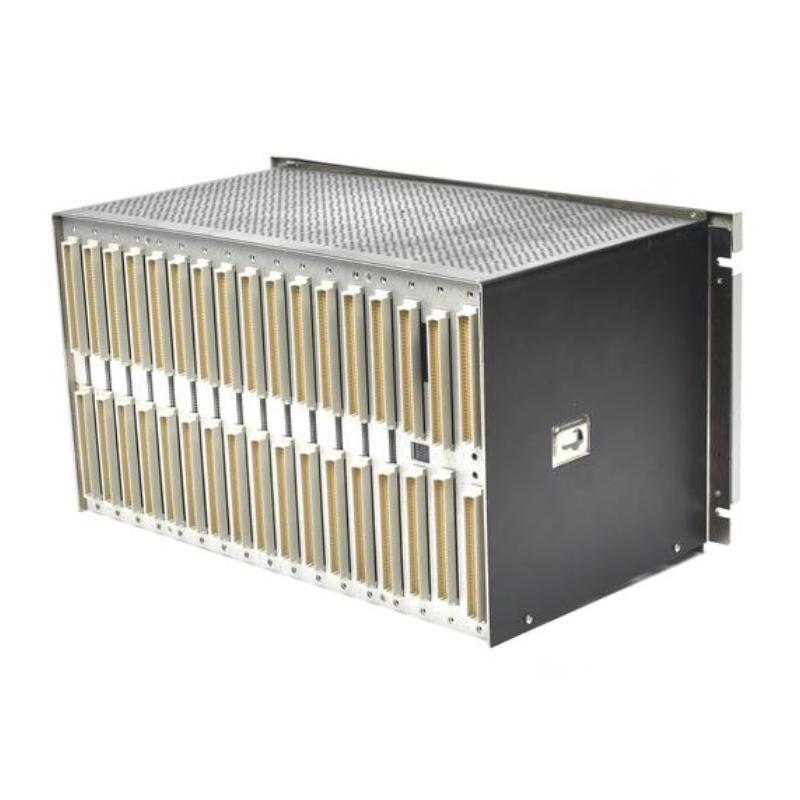

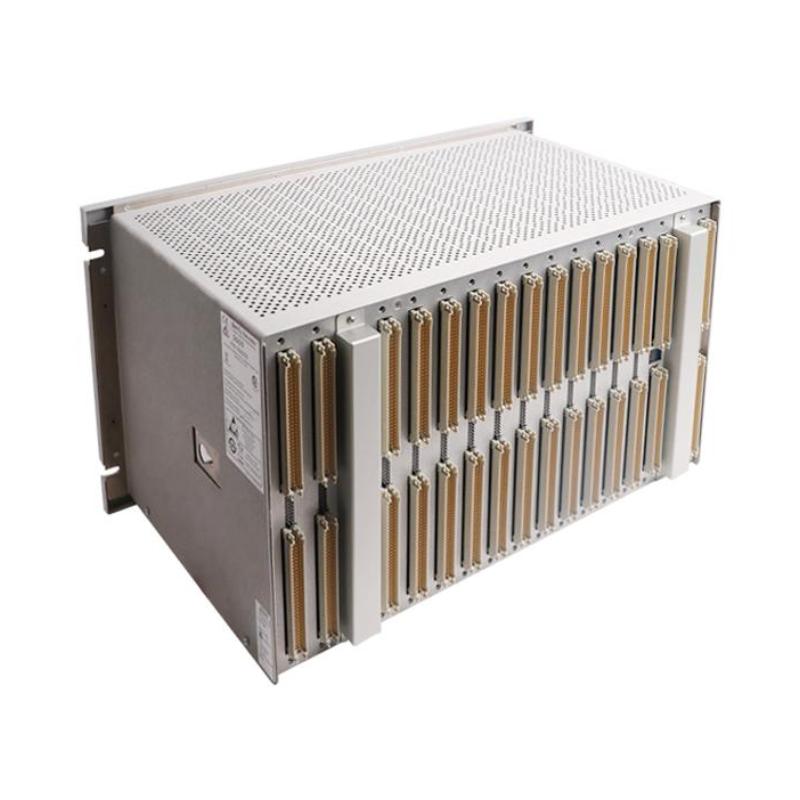

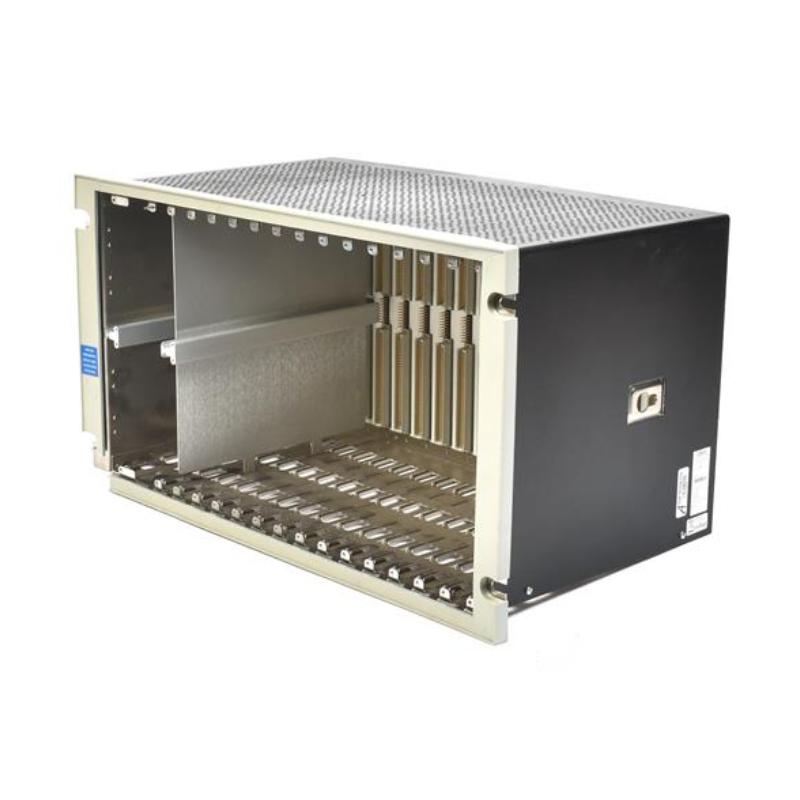

The Bently Nevada 3500/05-02-05-00-00-01 is a system rack developed for the Bently Nevada 3500 Machinery Protection System. It provides a durable structure and electrical backplane to house power, communication, and monitoring modules, ensuring continuous and efficient machine condition monitoring in demanding industrial environments.
General Information
Part Number: 3500/05-02-05-00-00-01
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500 Series
Type: System Rack
Technology: Modular backplane design for power and signal interconnection
Power Specifications
Supply Voltage: Supplied by the 3500 Power Supply Module
Power Distribution: Via the integrated backplane to all installed modules
Protection: Overvoltage and short-circuit protection
Indicators: None (status shown on individual modules)
Communication & Interface
Rack Interface: Built-in backplane for signal and power transfer
Supported Modules: Power, communication, I/O, and monitoring modules
Connectivity: Provides internal data and power routing between modules
Configuration: Managed through 3500 Configuration Software and system setup
Environmental
Operating Temperature: 0 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for control cabinet or enclosure installation)
Dimensions & Weight
Rack Size : 12-inch (7 module slots)
Weight: 4.5 kg
