Overview

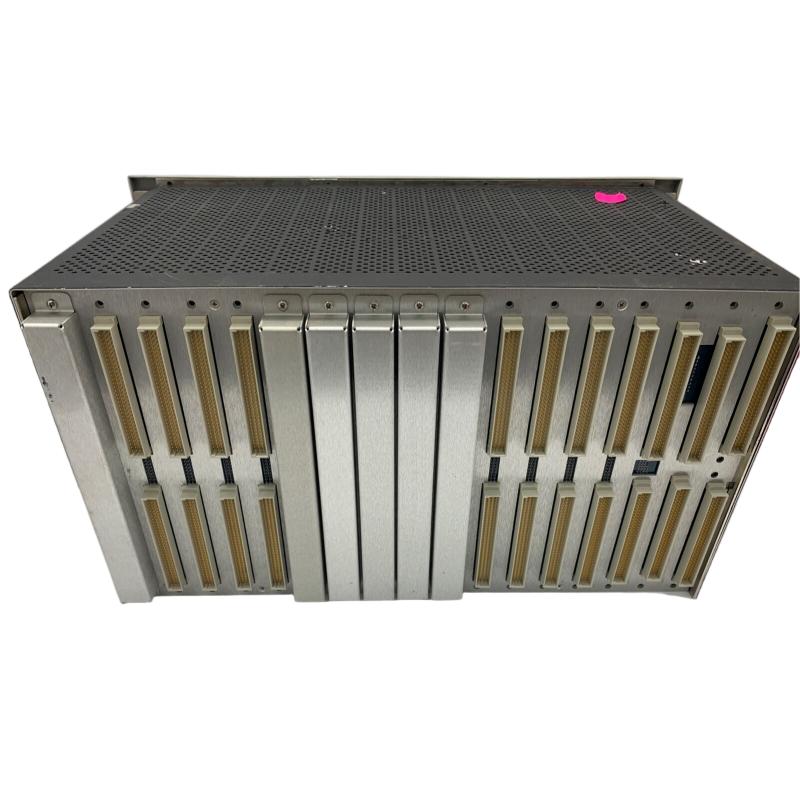

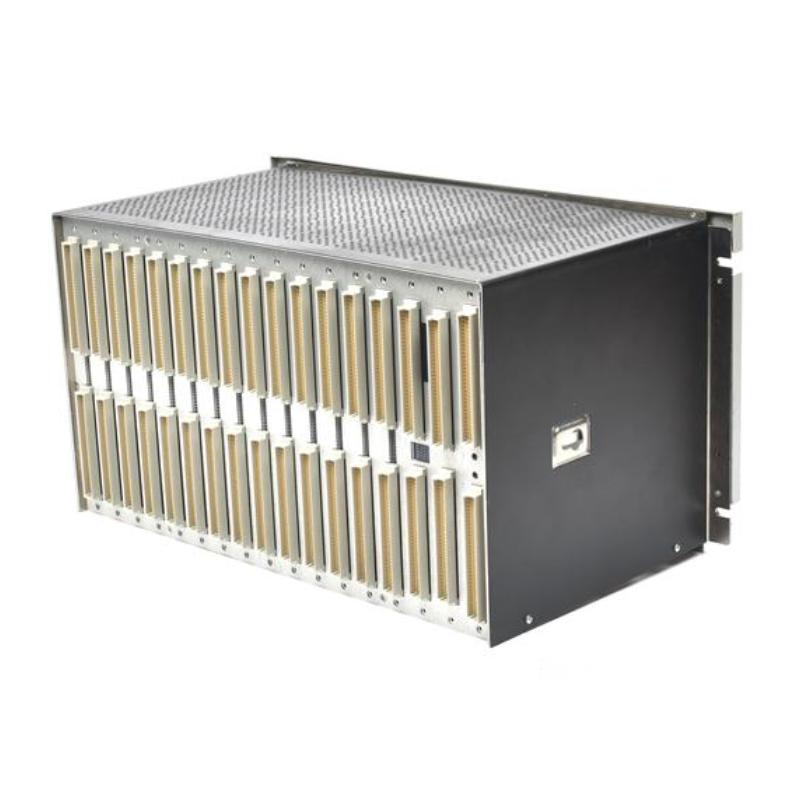

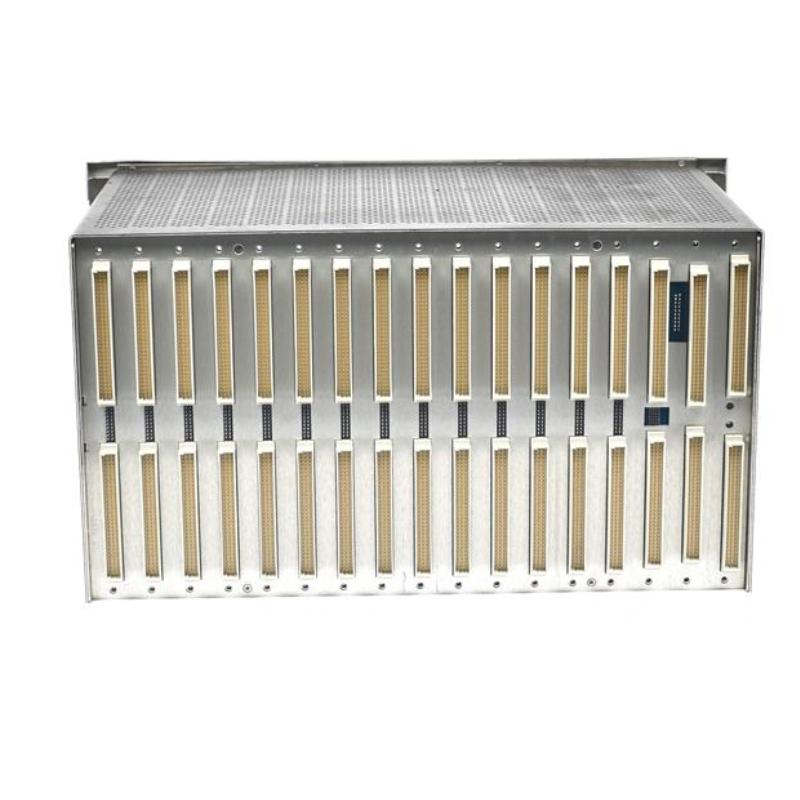

The Bently Nevada 3500/05-01-02-00-00 is a system rack for the Bently Nevada 3500 Machinery Protection System. It provides mechanical support and electrical backplane connectivity for housing monitoring, communication, and power modules, ensuring reliable machinery condition monitoring and system operation.
General Information
Part Number: 3500/05-01-02-00-00
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500 Series
Type: System Rack
Mounting: 19-inch rack or panel installation
Technology: Modular backplane for signal and power distribution between installed modules
Power Specifications
Supply Voltage: Provided by the 3500 Power Supply Module
Power Distribution: Internal backplane distributes power to all installed modules
Protection: Overvoltage and short-circuit protection
Indicators: None (status displayed on individual modules)
Communication & Interface
Rack Interface: Backplane providing signal and power connections
Supported Modules: Power supply, communication, I/O, and monitoring modules
Connectivity: Internal data and power routing between modules
Configuration: Managed via system software and installed modules
Environmental
Operating Temperature: 0 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for indoor cabinet installation)
Dimensions & Weight
Rack Size : 19-inch (14 module slots)
Weight: 4.5kg
