Overview

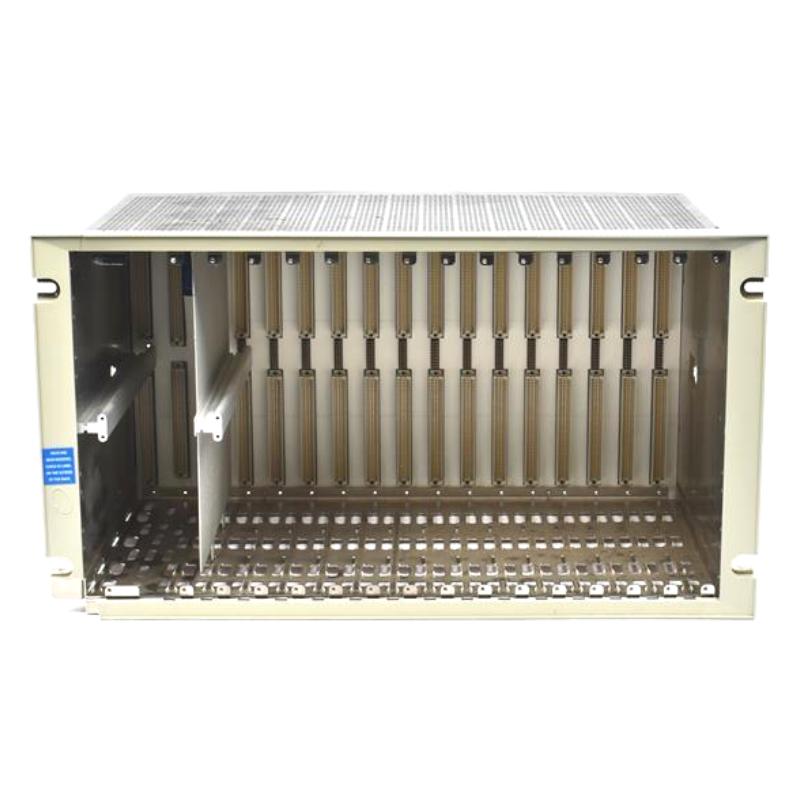

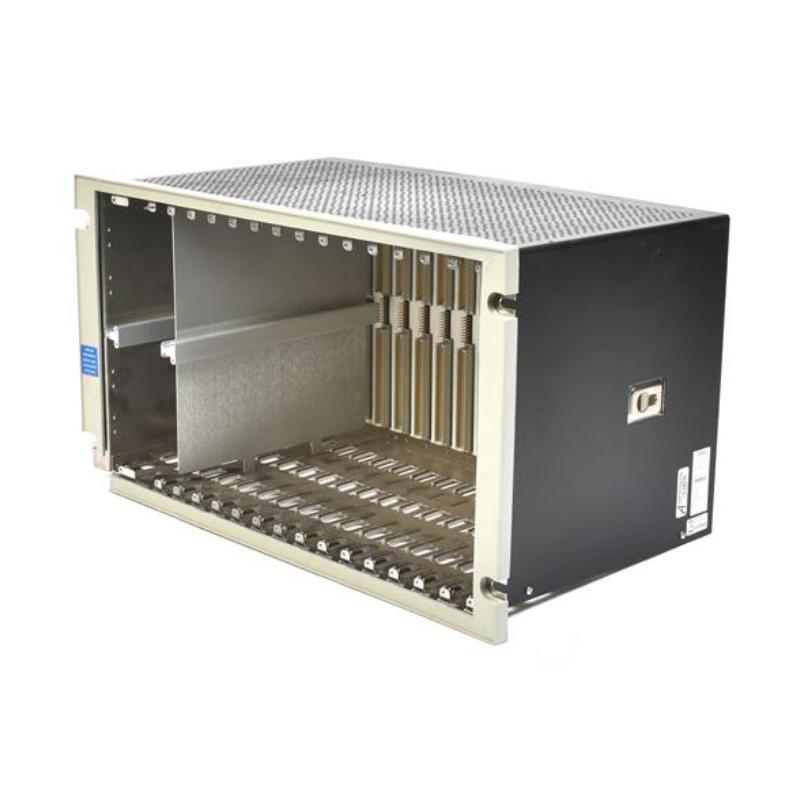

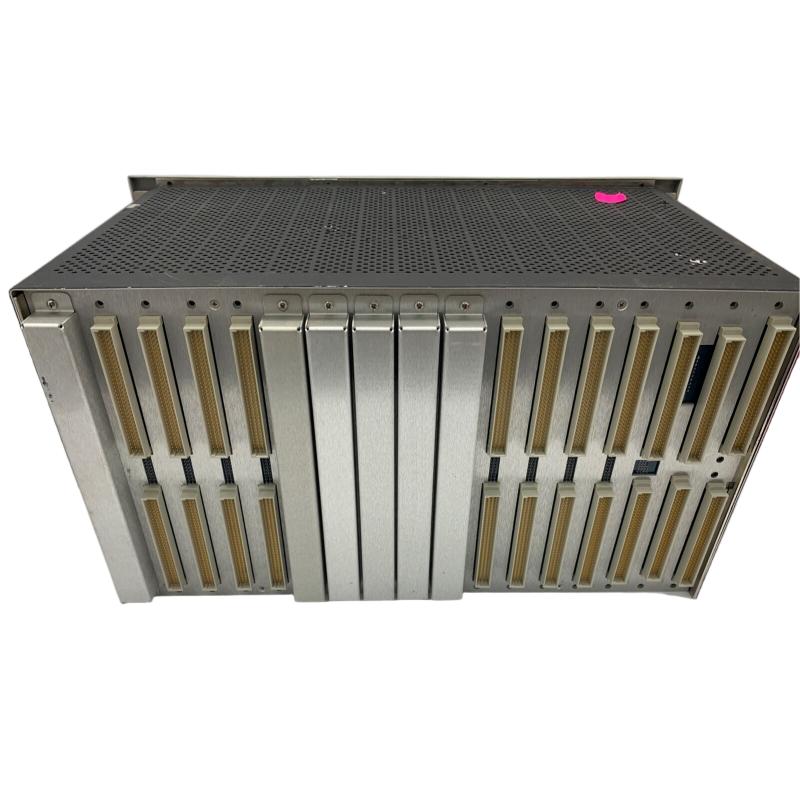

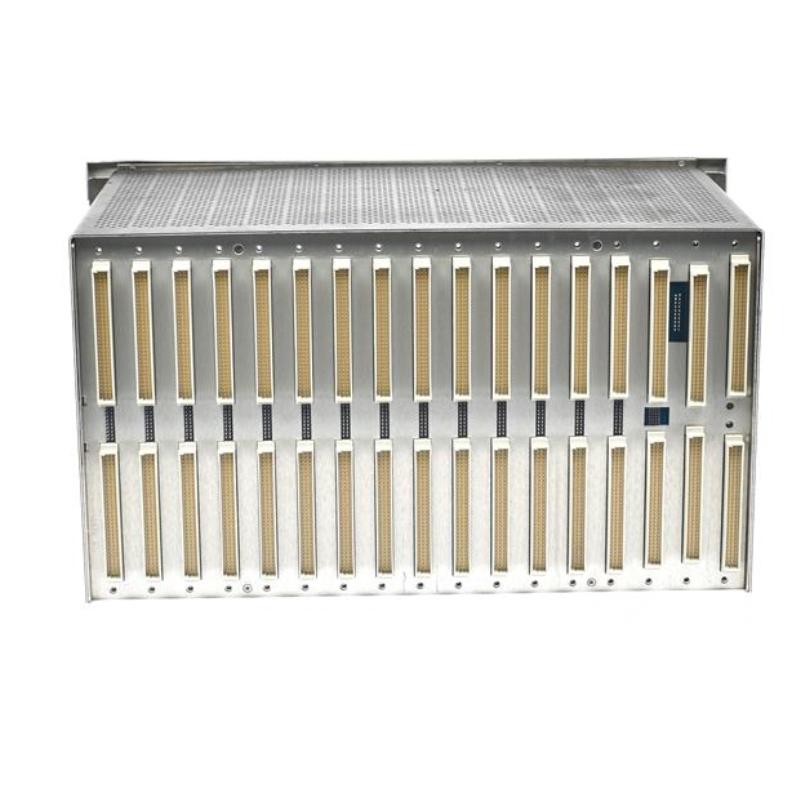

The Bently Nevada 3500/05-02-05-02-00-01 is a system rack designed for use in the Bently Nevada 3500 Machinery Protection and Condition Monitoring System. It serves as a robust mounting and interconnection platform for multiple modules, including power, communication, and monitoring units, ensuring reliable machine protection and system operation.
General Information
Part Number: 3500/05-02-05-02-00-01
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500 Series
Type: System Rack
Technology: Modular backplane providing electrical and signal interconnections
Power Specifications
Supply Voltage: Provided by the 3500 Power Supply Module
Power Distribution: Internal backplane distributes power to all modules
Protection: Built-in overvoltage and short-circuit protection
Indicators: None (status indicated by installed modules)
Communication & Interface
Rack Interface: Integrated backplane for data and power routing
Supported Modules: Power, communication, I/O, and monitoring modules
Connectivity: Provides internal interconnections across all modules
Configuration: Managed through 3500 Configuration Software and system hardware
Environmental
Operating Temperature: 0 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for indoor control cabinet installation)
Dimensions & Weight
Rack Size : 12-inch (7 module slots)
Weight: 4.5 kg
