Overview

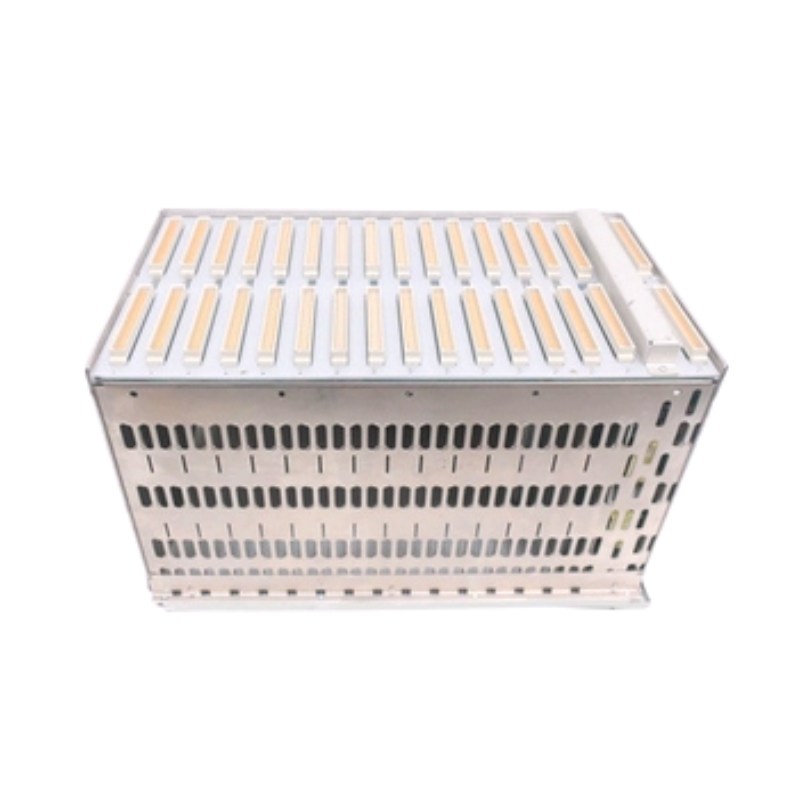

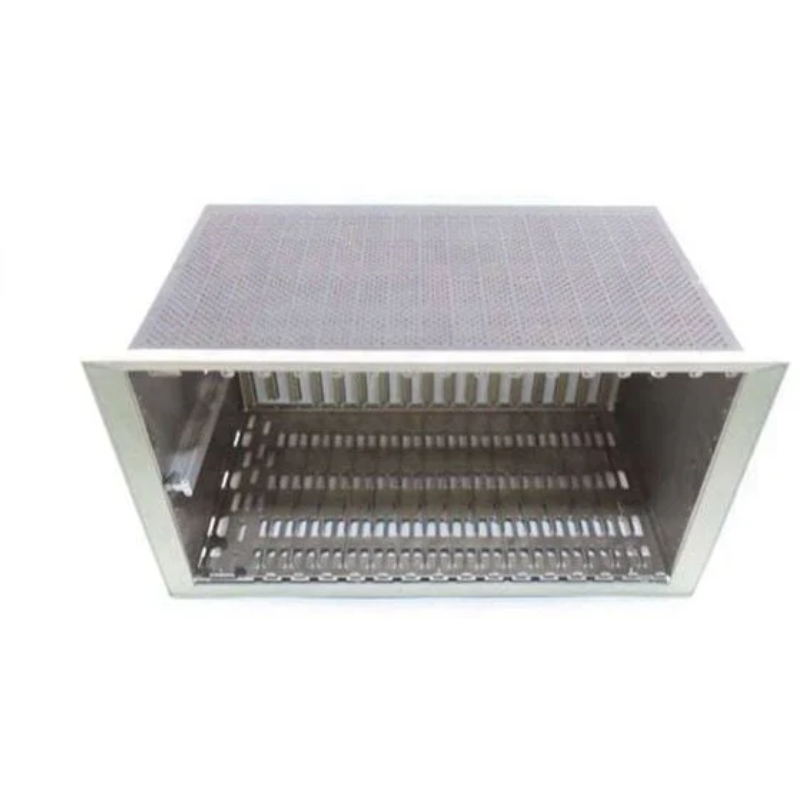

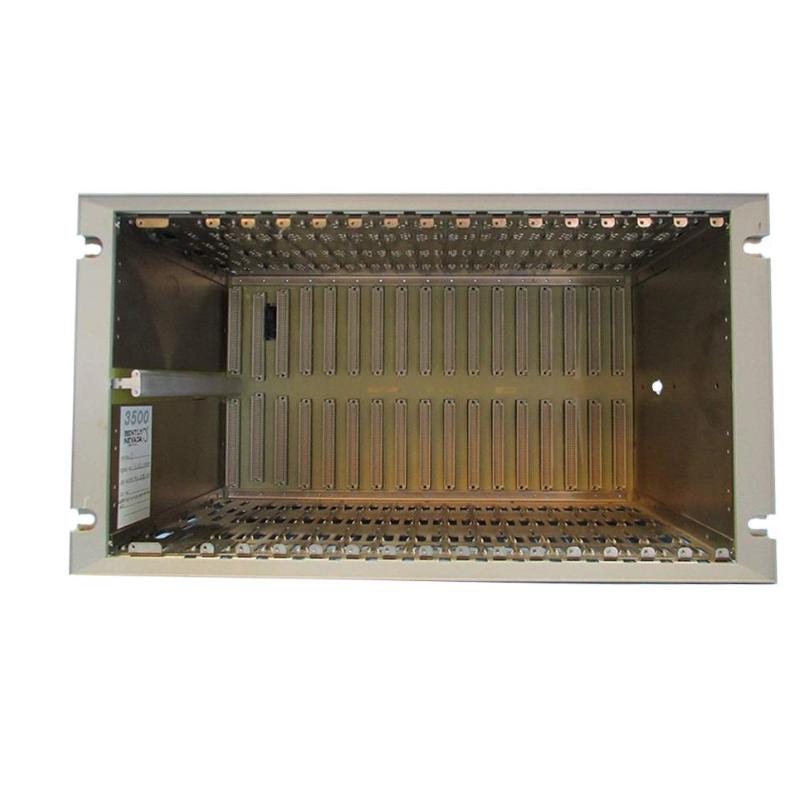

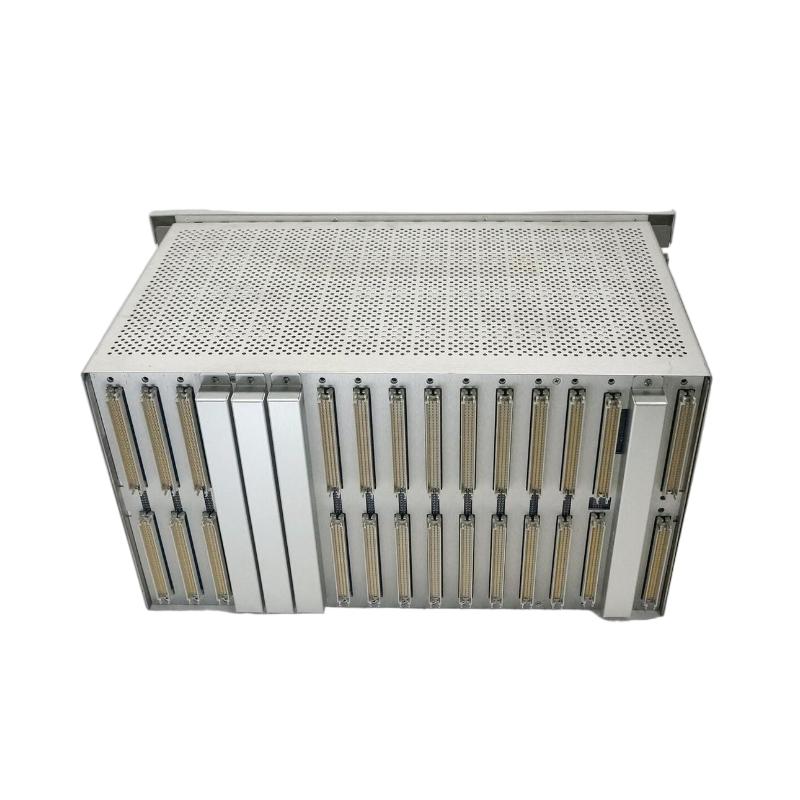

The 3500/05‑01‑00‑00‑01 is a full‑size system rack chassis from the system family, used for mounting multiple monitoring modules and power supplies in the Bently Nevada 3500 series. It supports the integration and interconnection of module cards within machinery protection and condition‑monitoring systems.
General Information
Part Number: 3500/05‑01‑00‑00‑01
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500/05 System Rack
Type: Rack Chassis
Rack Size: 19‑inch (14 module slots)
Mounting Style: Full‑size rack mount (EIA 19‑inch)
Power Specifications
Supply Interface: Rack is passive chassis support; power supplied via installed rack power‑supply modules
Power Distribution: Designed to accommodate module slot power supplies and distribute 24 V DC to modules
Communication & Interface
Backplane Interface: Supports communication and power bus for modules in 14‑slot configuration
Module Connectivity: Slots compatible with 3500 series monitor modules and accessories
Mounting Connectivity: Module positions accessible from front or rear depending on rack configuration
Environmental
Operating Temperature: –20 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 (for installation inside control‑cabinet)
Dimensions & Weight
Rack Size : 19-inch (14 module slots)
Weight: 4.5 kg
