Overview

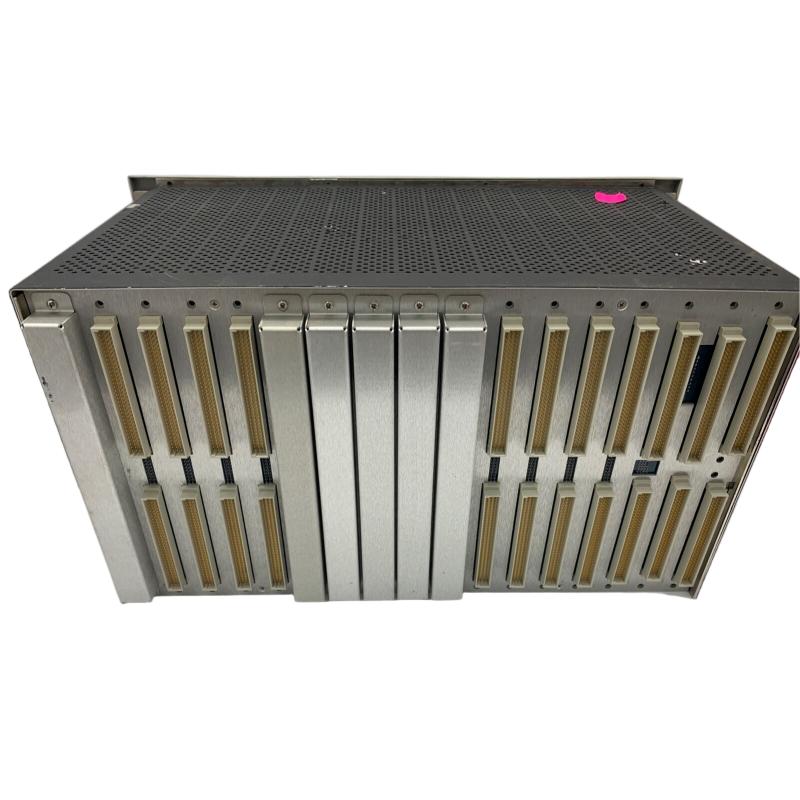

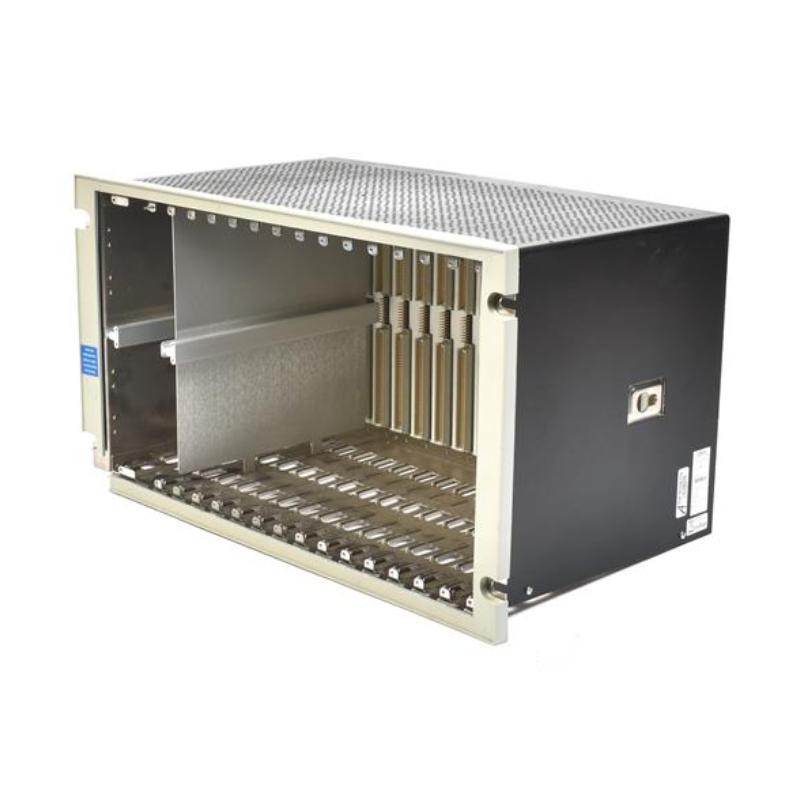

The Bently Nevada 3500/05‑01‑01‑00‑00 is a rack chassis designed for the 3500/05 series monitoring system. It serves as the backbone to house monitoring modules and power supplies, supporting secure and organized installation of condition‑monitoring modules.
General Information
Part Number: 3500/05‑01‑01‑00‑00
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500/05 System
Type: Rack Chassis
Slots: 14 module slots in full‑size 19‑inch format
Mounting: Panel mount or rack mount format
Power Specifications
This chassis functions as structural support—power to modules is delivered via installed power supply modules.
No direct power consumption specified for the empty chassis.
Communication & Interface
Backplane: Built‑in rack backplane for power and signal distribution to modules.
Slot Type: Compatible with 3500 series monitoring modules and accessories.
Environmental
Operating Temperature: –20 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 (for cabinet mounting)
Dimensions & Weight
Rack Size : 19-inch (14 module slots)
Weight: 4.5 kg
