Overview

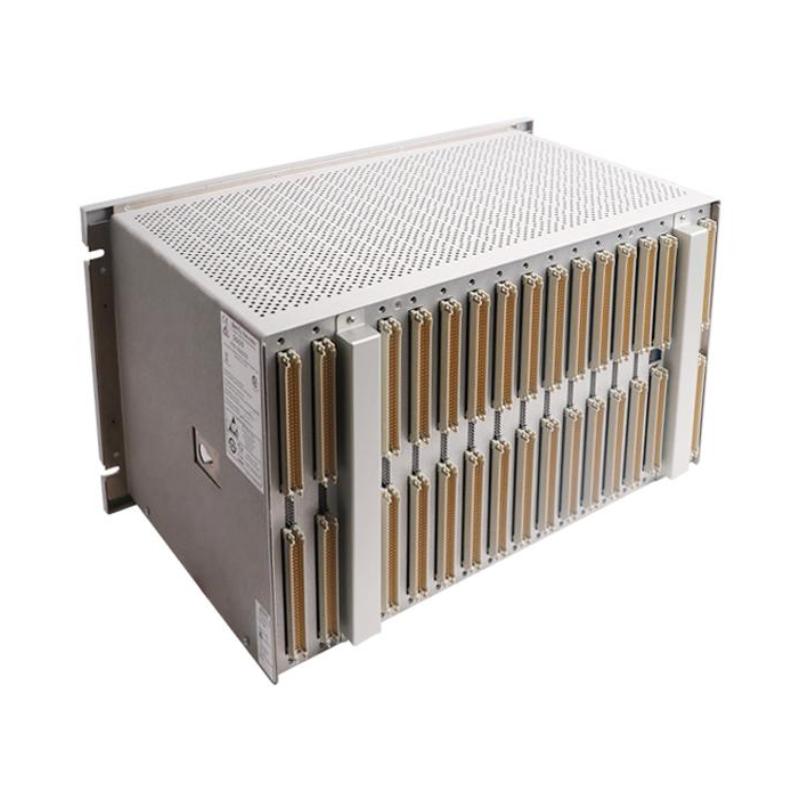

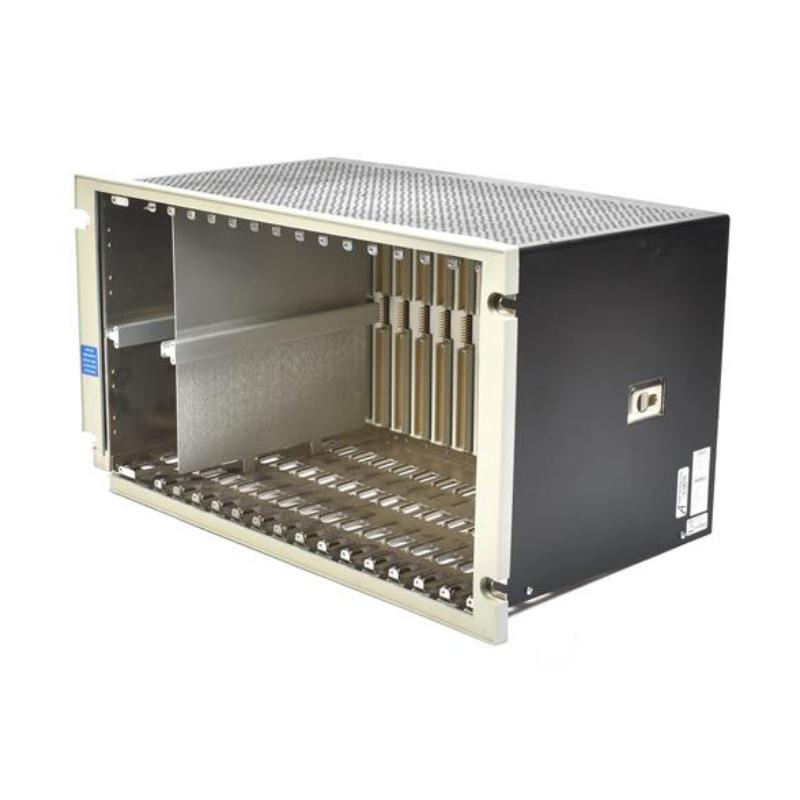

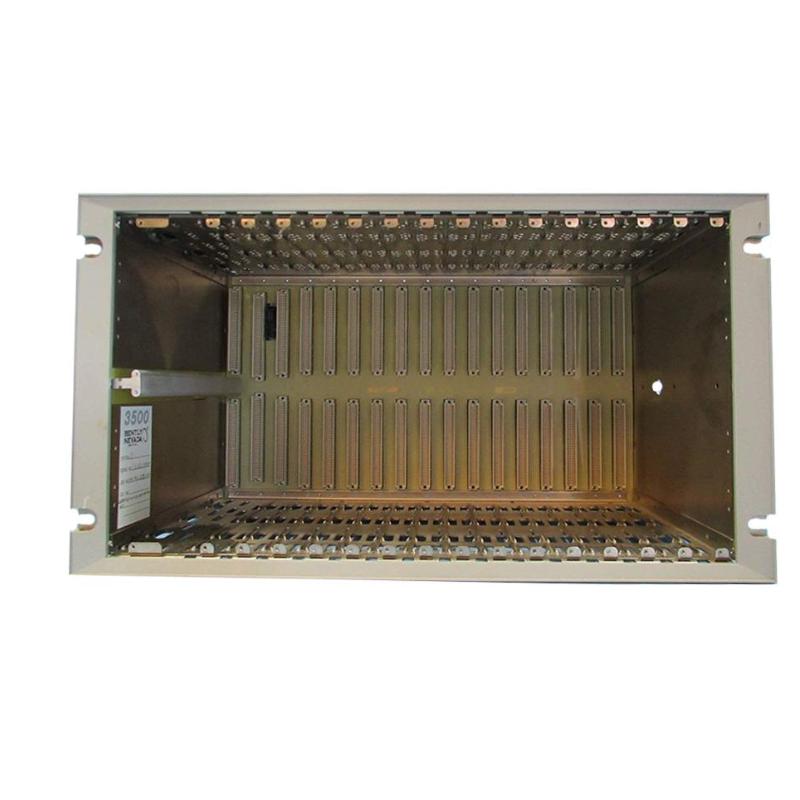

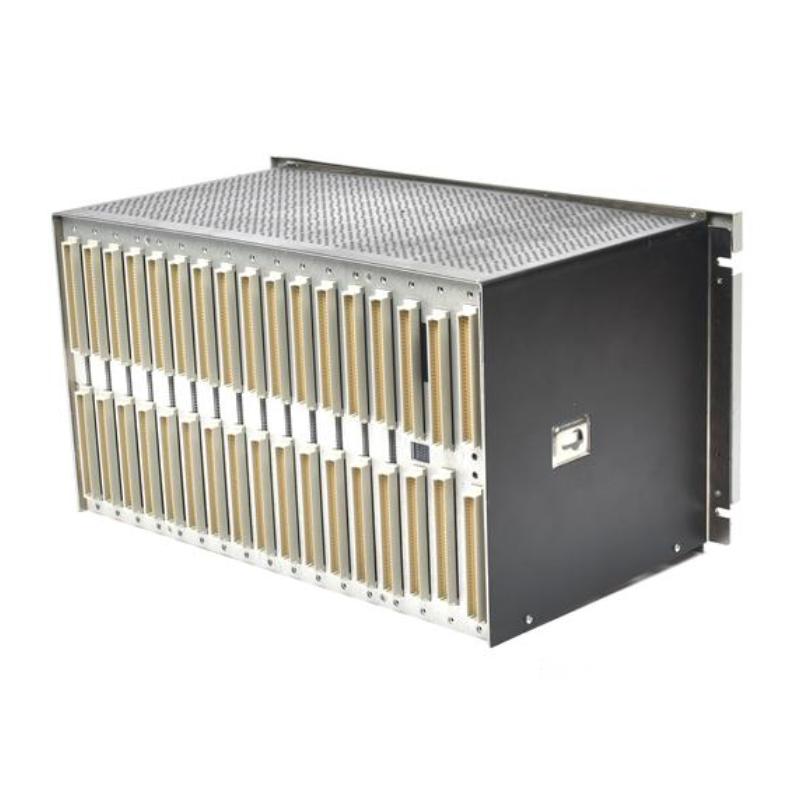

The Bently Nevada 3500/05‑01‑01‑00‑00‑01 is a full‑size 19‑inch rack chassis used in the 3500/05 machinery protection system. It holds monitor modules and power supplies, providing structural and electrical support for condition monitoring applications.
General Information
Part Number: 3500/05‑01‑01‑00‑00‑01
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500/05 System Rack
Type: Rack Chassis
Slots: Supports up to 14 full‑height module slots
Mounting: Panel mount in full‑size rack format
Power Specifications
This rack is passive; it relies on installed power supply modules to provide 24 V DC and signal power to modules.
Communication & Interface
Backplane: Distributes power and signal buses across module slots
Interface: Internal module bus for communication between modules
Environmental
Operating Temperature: –20 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 (for cabinet installation)
Dimensions & Weight
Rack Size : 19-inch (14 module slots)
Weight: 4.5 kg
