Overview

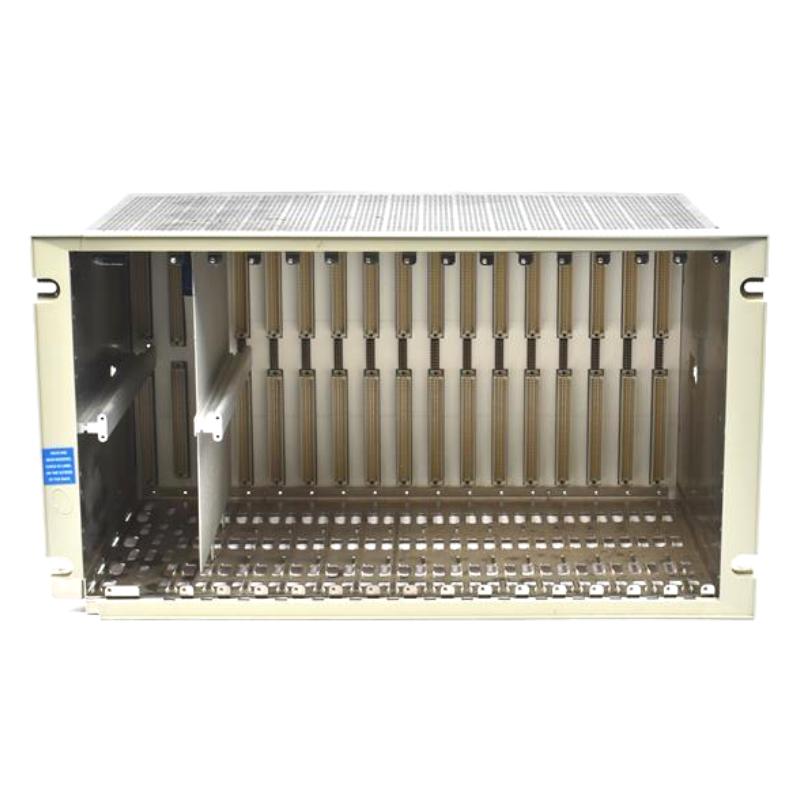

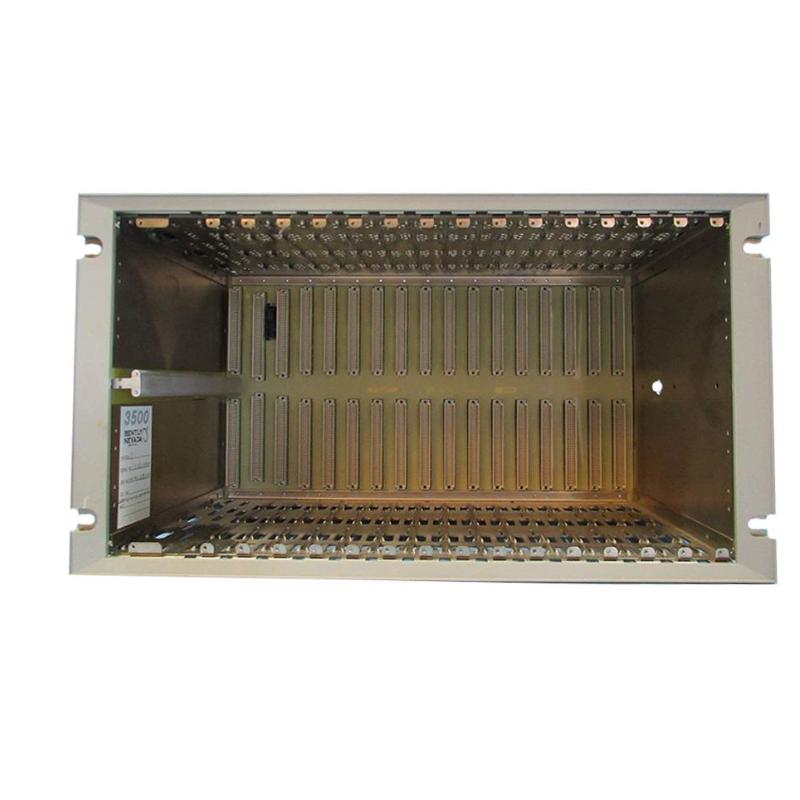

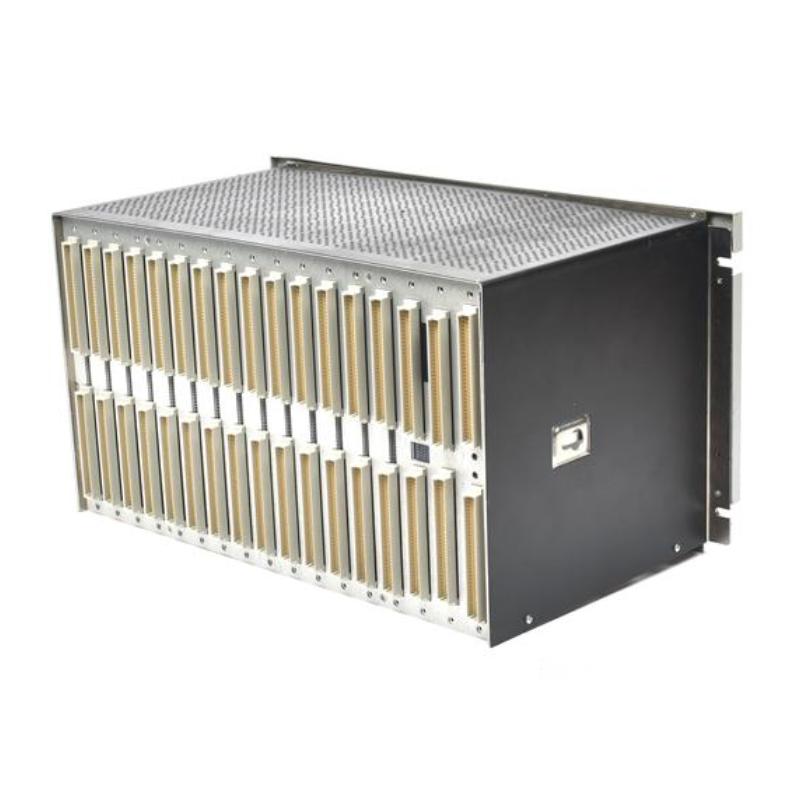

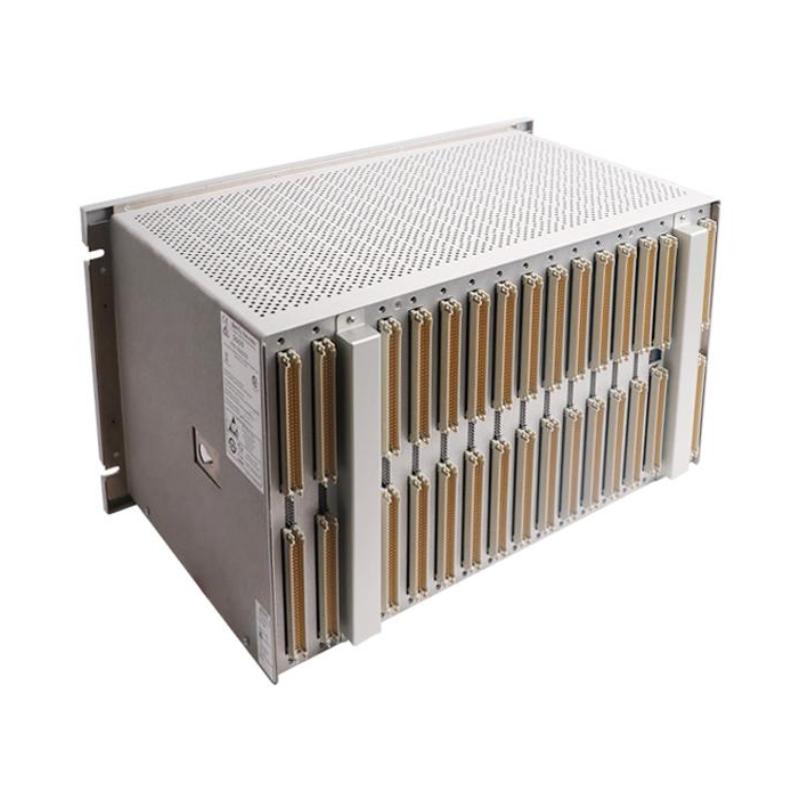

The 3500/05‑01‑01‑00‑00‑00 is a standard rack chassis for the Bently Nevada 3500/05 machinery monitoring system. It provides the mechanical frame and backplane necessary to house and support multiple monitor, communication, and power modules securely and reliably.
General Information
Part Number: 3500/05‑01‑01‑00‑00‑00
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500/05 System
Type: Rack Chassis
Slots: Supports up to 14 full‑height module slots
Mounting: 19‑inch rack mounting
Power Specifications
Power Interface: Passive chassis — power is supplied by installed supply modules
Power Distribution: Backplane carries 24 V DC and signal lines to individual module slots
Communication & Interface
Backplane: Built‑in backplane distributes power and communicates across modules
Slot Compatibility: Compatible with 3500 series modules (e.g. monitor, I/O, gateway)
Environmental
Operating Temperature: –20 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 (in enclosed cabinet)
Dimensions & Weight
Rack Size : 19-inch (14 module slots)
Weight: 4.5 kg
